Isolation
125 Vrms channel to ground isolation
Analog input performance
Bandwidth (-3 dB)
0.49 fs
Alias-free Bandwidth
DC to 0.453 fs
Alias Rejection
-100 dB (all sample rates)
Delay Through ADC
37 / fs
Oversampling
32
IEPE input
Excitation
4 mA, 8 mA
Compliance voltage
24 V
Output Impedance
Sensor detection
Shortcut: <4 V; Open: >19 V
TEDS support
IEPE mode only
Power
Power consumption
2 W
Environmental
IP rating
IP20
Physical
Dimensions
82 x 62 x 28 mm
Weight
130 g
Rev: 1593518446

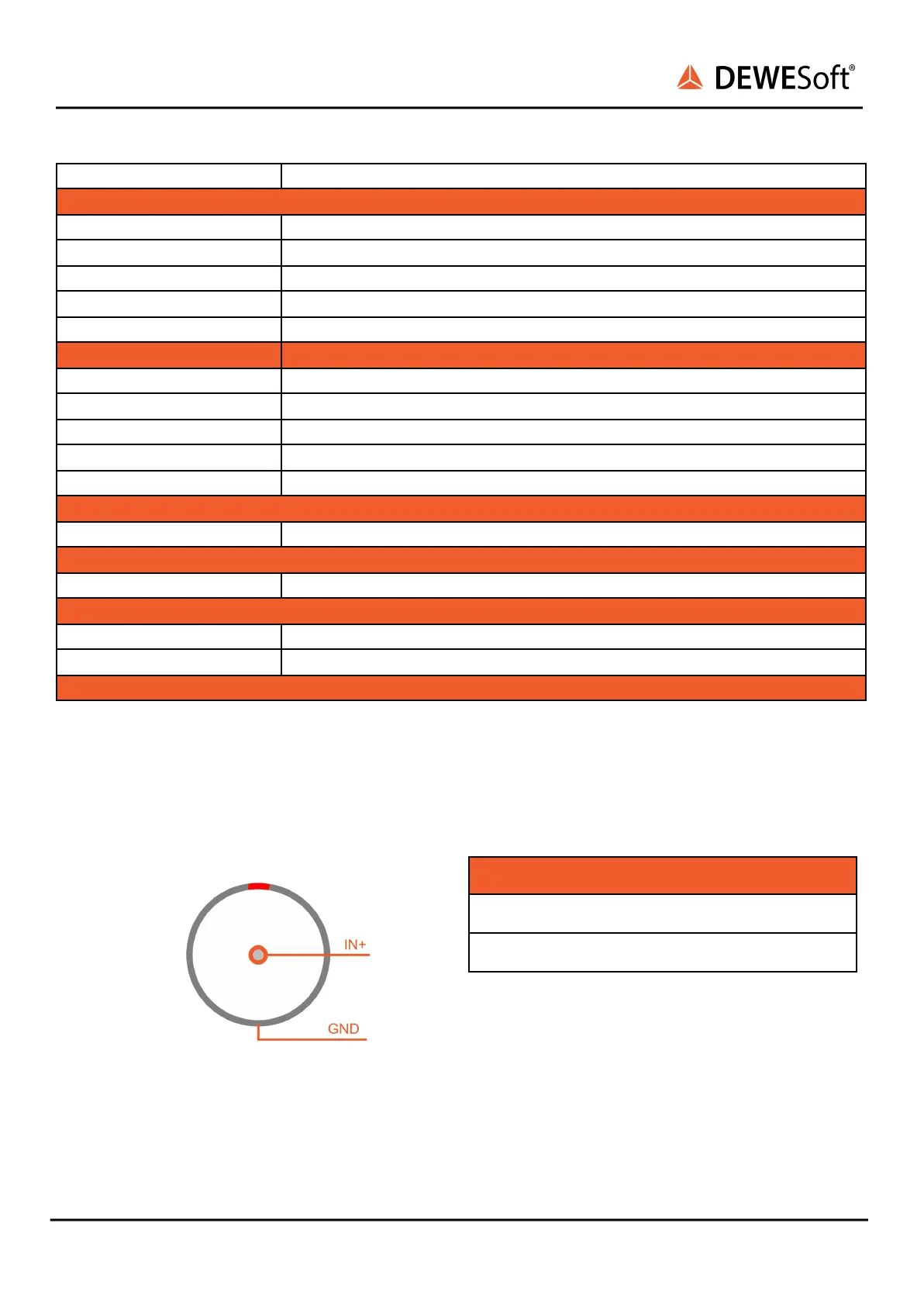

5.10.2. ACC: BNC Connector
5.10.2.1. ACC: BNC Connector: Pinout
ACC connector: pin-out (BNC)
Pin
Name
Description
1
IN+
Input +
2
GND
Ground
