4.3. Enclosure Overview
IOLITE can be configured in the 19-inch cabinet compatible chassis or in more rugged Sirius-like
compatible chassis.
4.3.1. IOLITE: Cabinet Mount Chassis
Standard IOLITE chassis is compatible and can be mounted in any 19-inch rack cabinet. This is perfect for
the test-bed installations.
IOLITE height is 4U and can host up to 12 IOLITE modules. It includes a cooling system with four fans on
the back panel.

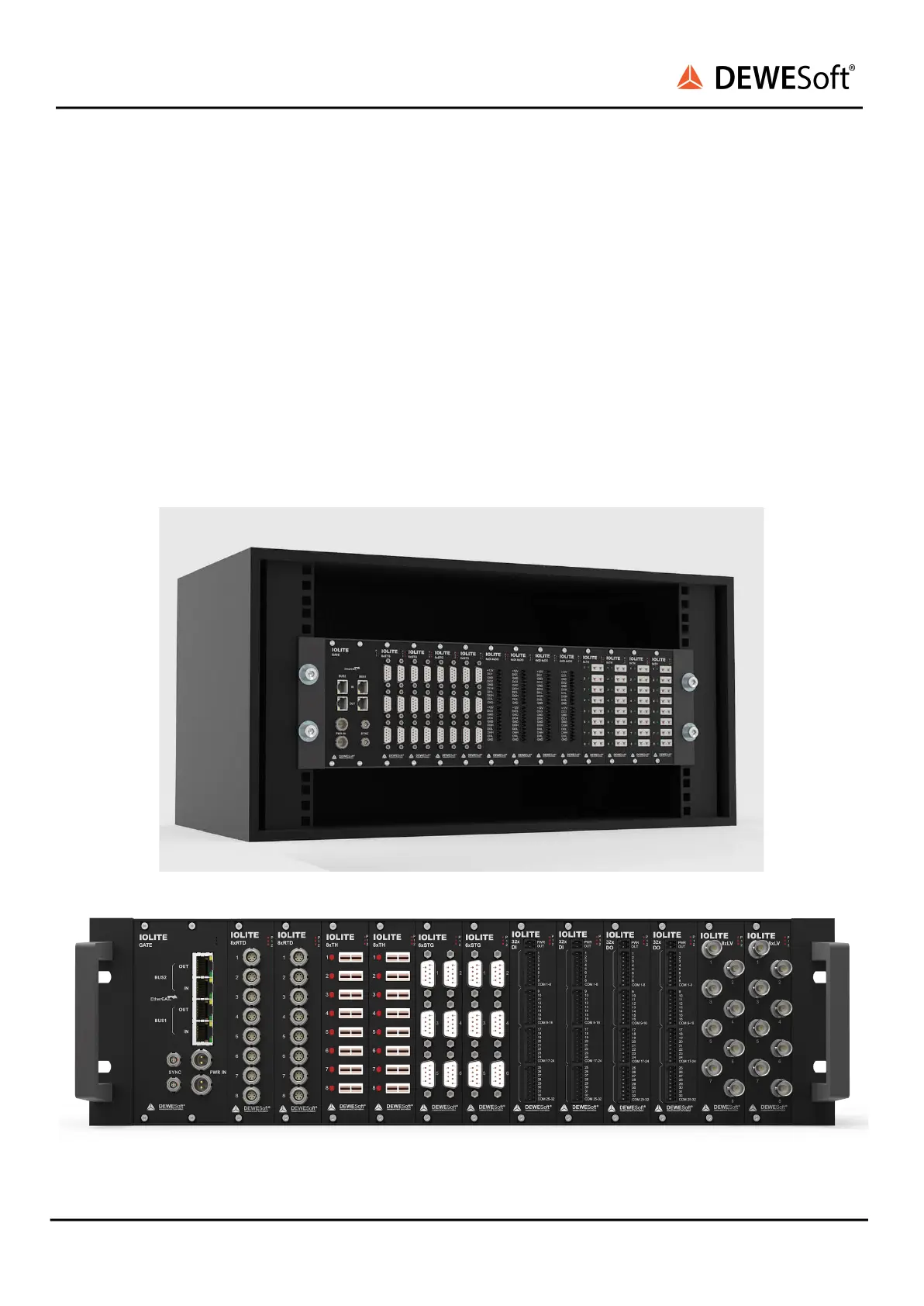

4.3.1.1. IOLITE-R12: Cabinet Mount Chassis: Renders
Mounting of IOLITE-R12 in the 19” cabinet
IOLITE-R12 (Cabinet Mount Chassis) Front panel
