5.2.4.5. IOLITEi-8xLV: TBLOCK Connector: Pin out
LV connector: pin-out (TBLOCK male)
Pin
Name
Description
1
IN+
Analog input +
2
IN-
Analog input -
Connector (on the device): OMNIMATE Signal SL 2.50/02/180G 3.2SN BK BX
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180

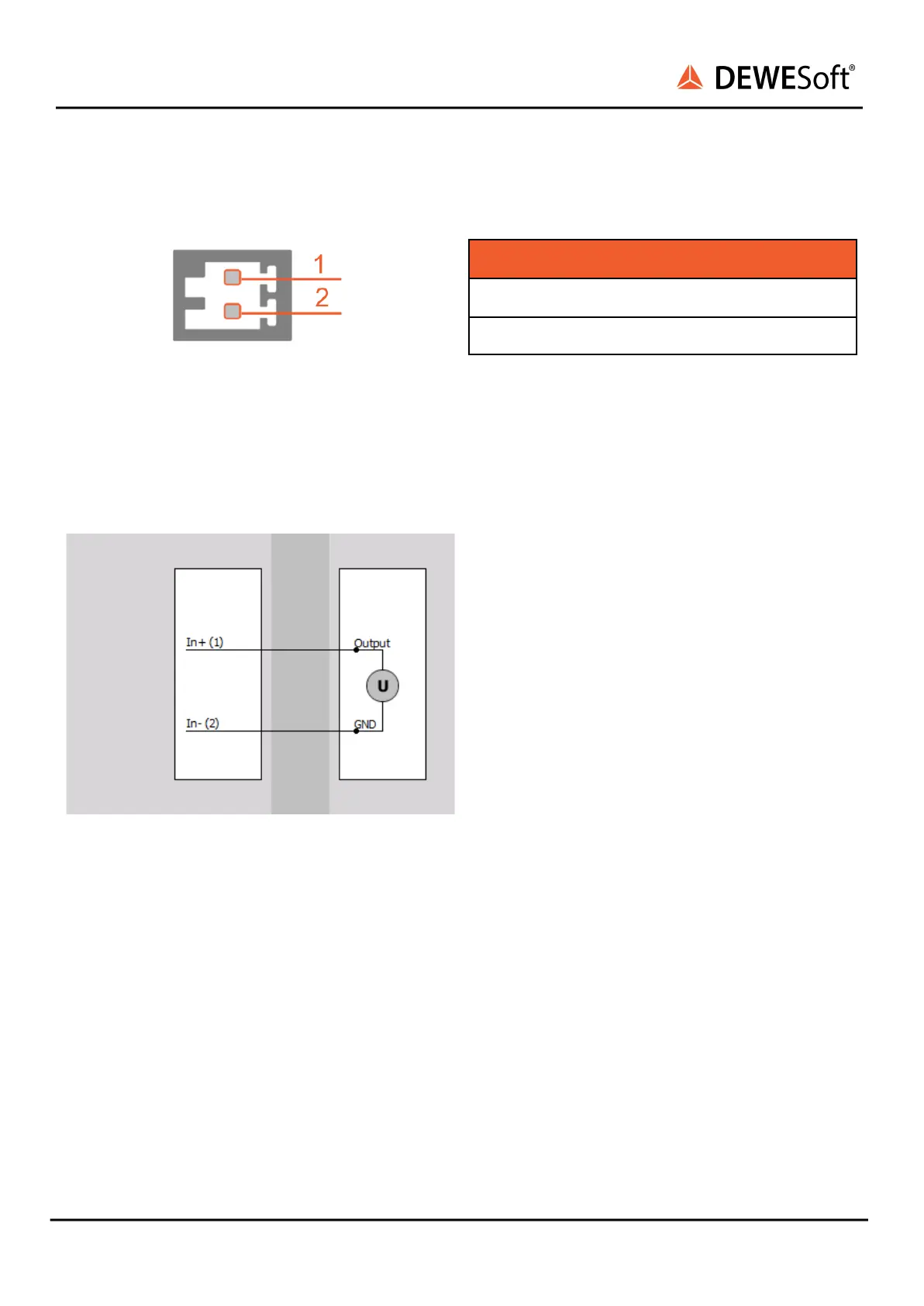

5.2.4.6. 8xLV: TBLOCK Connector: Wiring diagram
5.2.4.6.1. 8xLV: Voltage
