DEWESOFT IOLITE User Manual

IOLITE®
TECHNICAL REFERENCE MANUAL

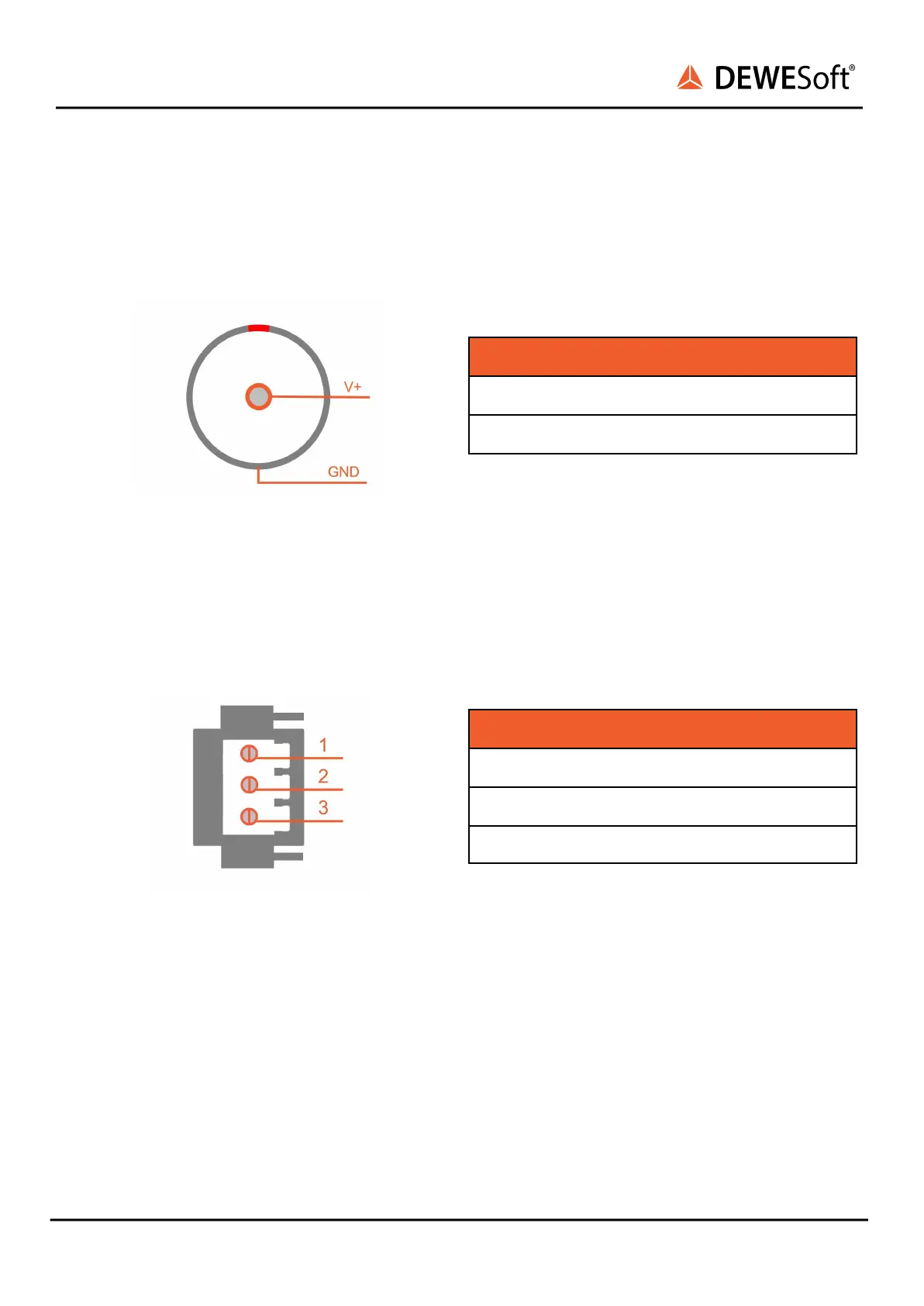

6.1.2. IOLITE Power Injector: Connector
6.1.2.1. IOLITE Power Injector: 2 mm Jack Pinout
Power in connector: pin-out (2 mm DC jack, male)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
For the power supply an unregulated DC voltage
between 12 V and 48 V is required.
Connector (on the device): 2 mm DC power jack - PJ-067A
6.1.2.2. IOLITE Power Injector: Phoenix MC 1,5/3 Pinout
Power in connector: pin-out (Phoenix MC 1,5/3)
Pin
Name
Description
1
V +
Supply
2
GND
Ground
3
EARTH
Earth
For the power supply an unregulated DC voltage
between 12 V and 48 V is required.
Connector (on the device): Wire terminal, Phoenix MC 1,5/ 3-GF-3.81
Mating connector (for the cable): Wire terminal, Phoenix MC 1,5/ 3-STF-3,81
IOLITE® V20-1 138/153
