Preparing the Machine
12

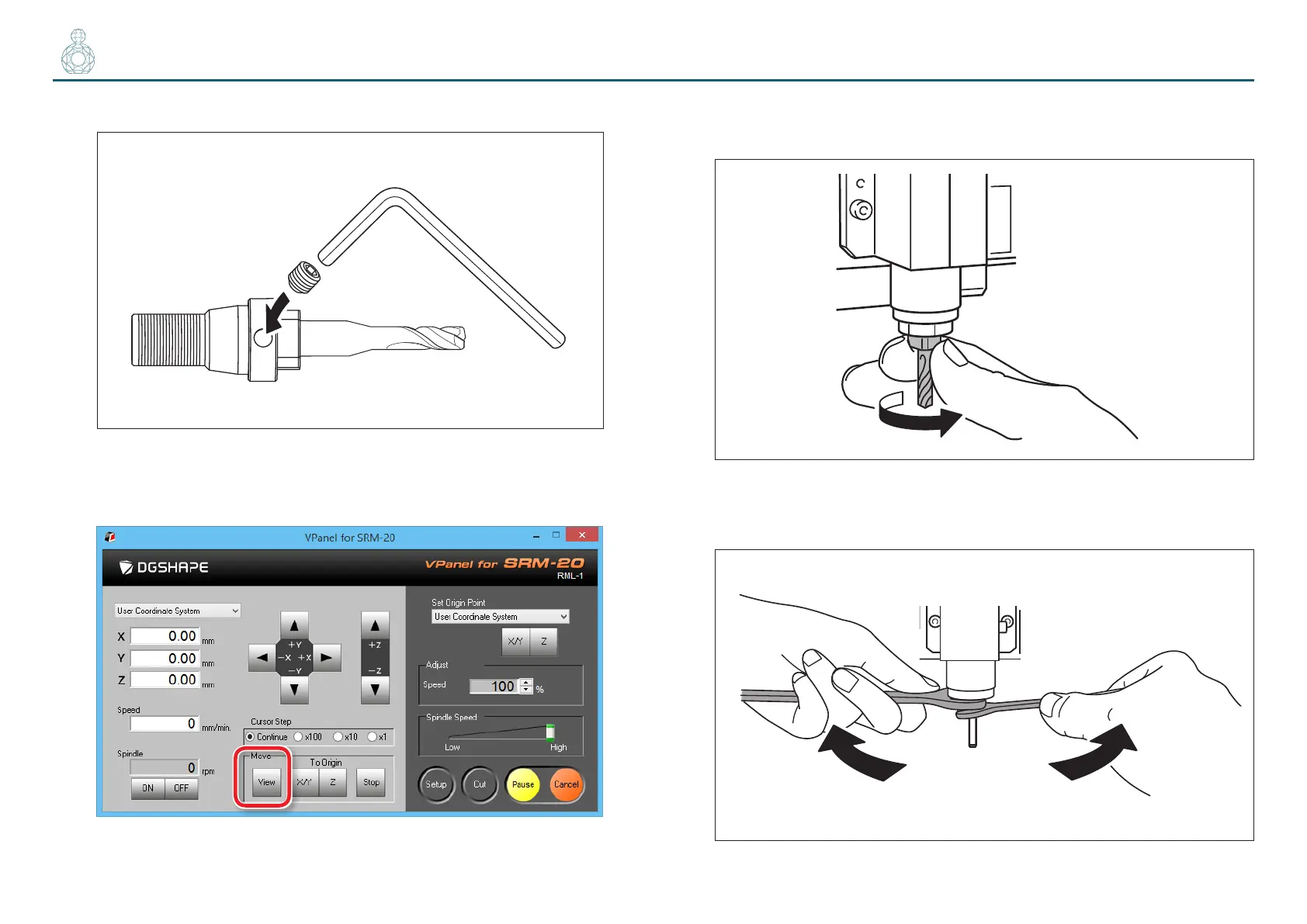

2. Tighten the set screw with hexagonal wrench.
3. Click [View] of VPanel.
A spindle head moves to a center and a table moves to the front.
4. Loosely tighten the collet with cutting tool.
Insert the collet, and then loosely tighten.
.
5. Fully tighten the collet.
Tightly secure the collet by using two spanners.
