OPERATOR'S MANUAL
SETUP/ 27
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A
12. Total Number Of Rows
Configured
This parameter is used to calculate
Implement Width and is used in
checking the number of seed sensors
detected upon system power up. This
value is displayed for confirmation only
and can only be altered by changing the
Number of Seed Modules or Number
of Seed Sensors Per Module parame-
ters. Figure 20 shows the display for
sixteen (16) rows.
13. Number of Fan Speed Sensors
This is the actual number of Fan Speed
Sensors that are connected to a Shaft
Speed Module on the system. For each
Fan Speed Sensor that is configured
here there will be an operate screen
generated. Fan Speed Sensors are not
Self-Tested and will not generate any
error codes except for operational error
codes for Hi and Lo Limit warnings.
Figure 21 shows a configuration of two
(2) Fan Speed Sensors.

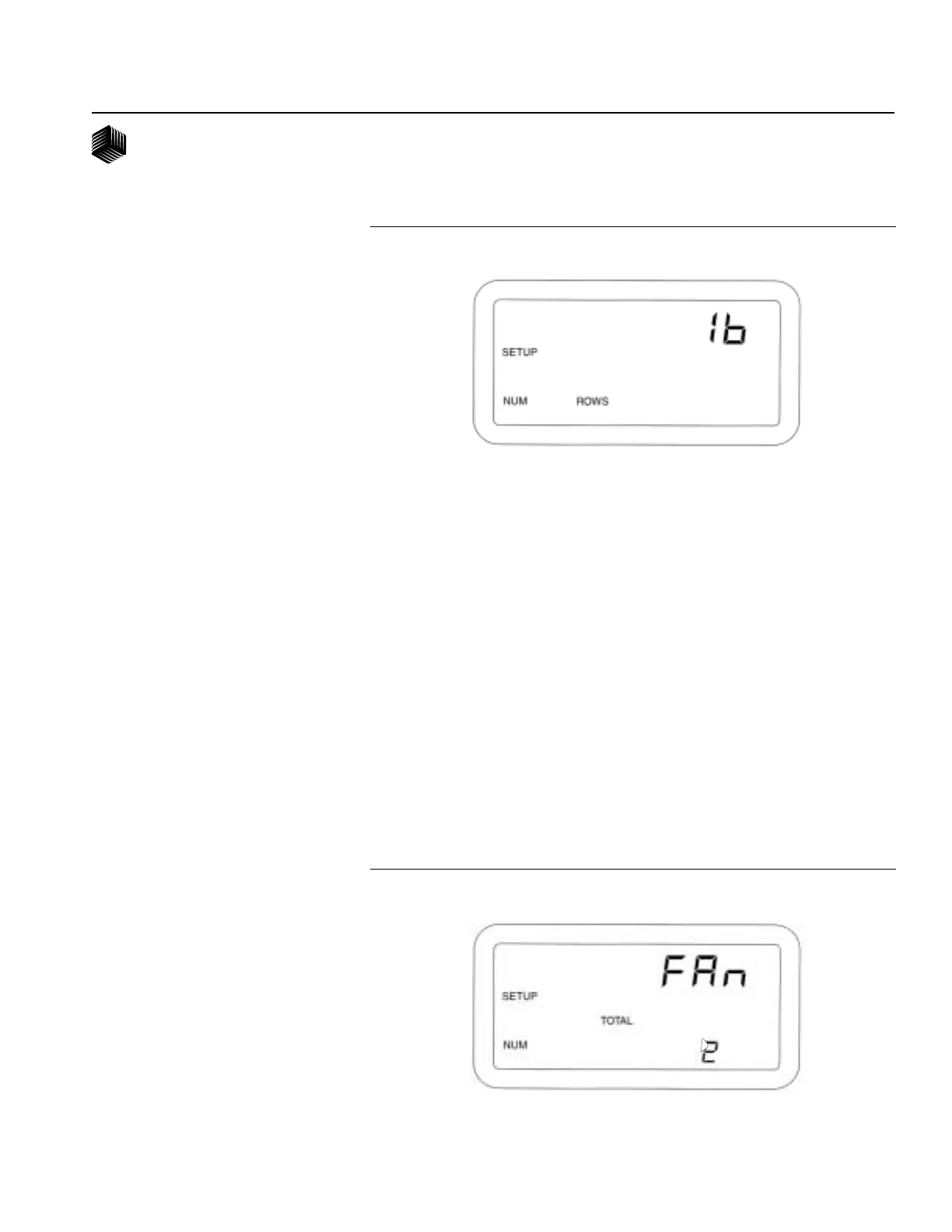

Figure 20
Rows Configured Display
Figure 21
Fan Speed Sensor Display
