Dickey-John Seed Manager SE User Manual

OPERATOR'S MANUAL
OPERATE/ 43
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A
5. Ground Speed
This is the ground speed in MPH (Km/
h), with 0.1 resolution, as measured by
the ground speed sensor. This function
is selected by pressing the OPERATE 1
switch until the SPEED message appears
on the display. The ground speed
sensor can be either radar, Hall Effect,
or reluctance type. Figure 47 shows a
ground speed of 5.6 MPH.
6. Fan Speed
This is the rotational speed of any Fan
the user wishes to monitor. A Hall
Effect type sensor senses points on a fan
to a resolution of 0.1 RPM. This
function is selected by pressing the
OPERATE 2 switch until F1 or F2 is
displayed in the lower numerical display.
Figure 48 shows a fan speed of 275.8
RPM.

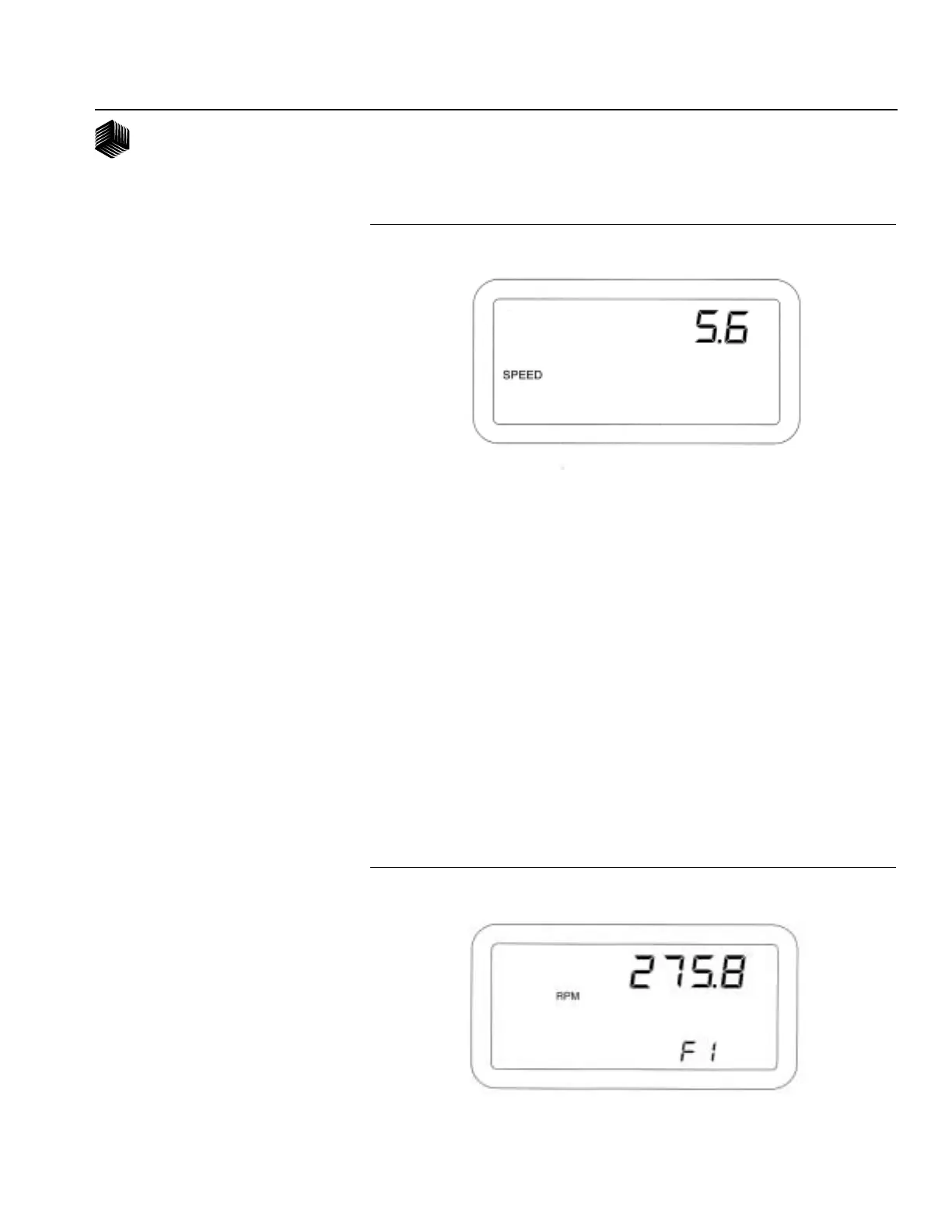

Figure 47
Ground Speed Display
Figure 48
Fan Speed Display

Dickey-John Seed Manager SE Specifications

General

Brand	Dickey-John
Model	Seed Manager SE
Category	Measuring Instruments
Language	English
