OPERATOR'S MANUAL
SETUP/ 31
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A
20. Shaft Speed Sensor Lo Limit
This constant is the lowest Shaft Speed
(RPM) allowed before sounding a
warning alarm. The Hi and Lo warning
limits are accessible only if the Number
of Shaft Speed Sensors has a value other
than 0. The warning is enabled or
disabled by selecting the ON or OFF
message. Use the SELECT switch to
advance one step to the right of the right
most digit, then press the SET switch to
toggle between ON and OFF. Figure 28
shows a Lo limit of 12 RPM with the
warning disabled.
21. Number of Hopper Level
Sensors
This is the actual number of Hopper
Level Sensors that are connected to all
modules in the system. This parameter
will be checked as part of the Sensor/
Module Self-Test and Error codes will
be generated if this value does not match
the actual number of Hopper Level
Sensors. Figure 29 shows a configura-
tion of five (5) Hopper Sensors.

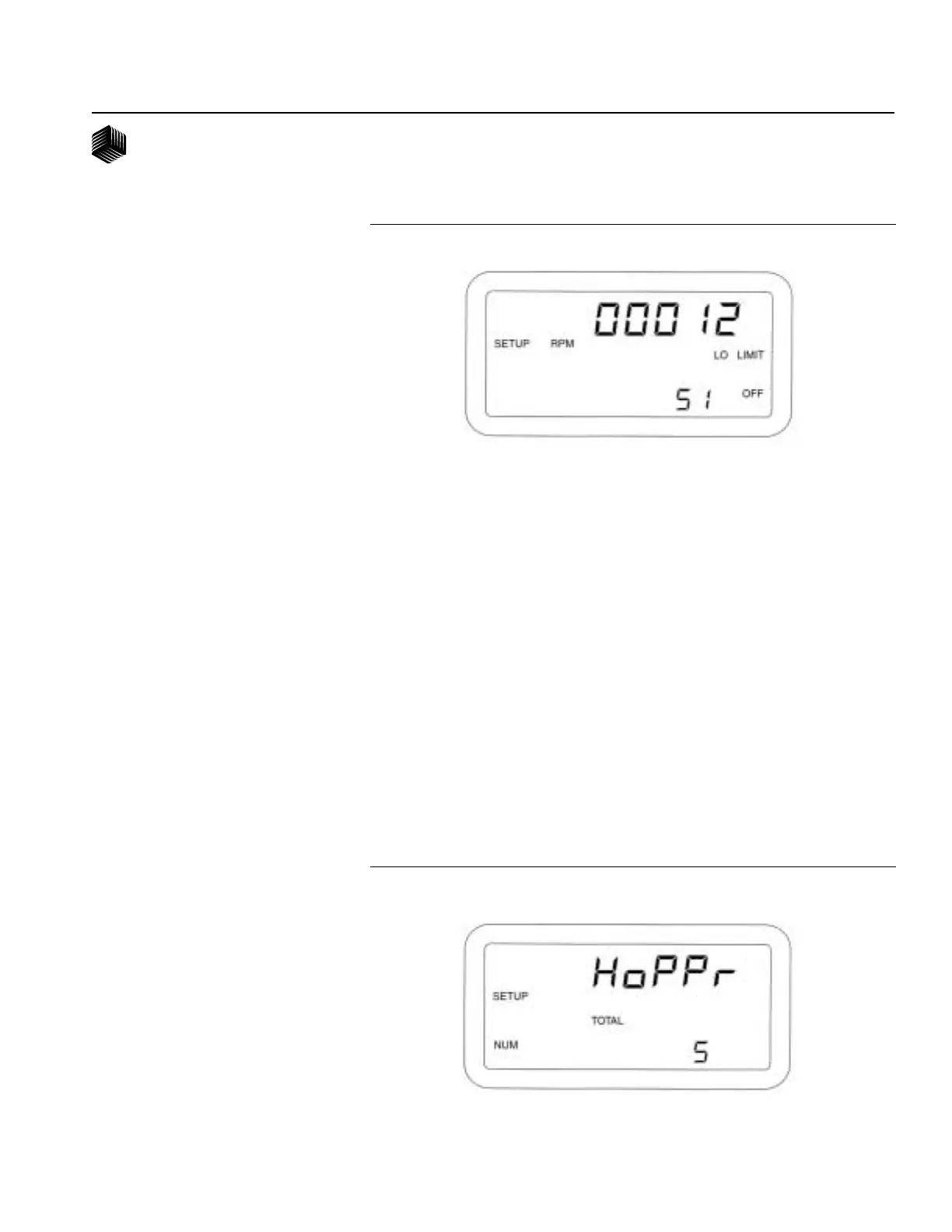

Figure 28
Lo Limit Shaft Speed Display
Figure 29
Hopper Level Display
