INSTALLATION/ 5
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A
A. CONSOLE
MOUNTING
The console should be mounted inside
the tractor cab in a location accessible to
the operator but does not obstruct the
driving view.
Refer to Figure 2 for a typical console
mounting using the U-bracket and
hardware. Install as follows:
STEP 1
Verify the rear side of the selected
mounting surface is free of wiring or
other obstructions and is accessible for
inserting and tightening the mounting
bolts.
STEP 2
Use the U-shaped mounting bracket as a
template to mark the two outside holes of
the bracket on the selected location and
SYSTEM INSTALLATION
drill two 9/32 inch ( 7 mm ) holes. An
alternate mounting method, which allows
the console to swivel, requires drilling the
center bracket hole only.
STEP 3
Attach the mounting bracket to the
mounting surface using the ¼ - 20 x ½
inch bolts, lockwashers, flatwashers, and
nuts.
STEP 4
Secure the console to the mounting
bracket using the two knob screws.
Insert the two rubber washers between
the bracket and console.
STEP 5
Tilt console so that the J1 connector on
the rear of the console is accessible.
Temporarily tighten the two knob screws.
U-Bracket
1/4
-20 Nuts
and Lockwasher
U-Bracket
U-Bracket
(Preferred Mounting
Position)
Knob
Screw
Knob
Screw
1/4-20 x 3/4 Inch
Hex Bolts &
Flat washers
Console
Rubber
Washer
Rubber
Washer
Warning:
The console must not obstruct the view or
interfere with the operation of the tractor.

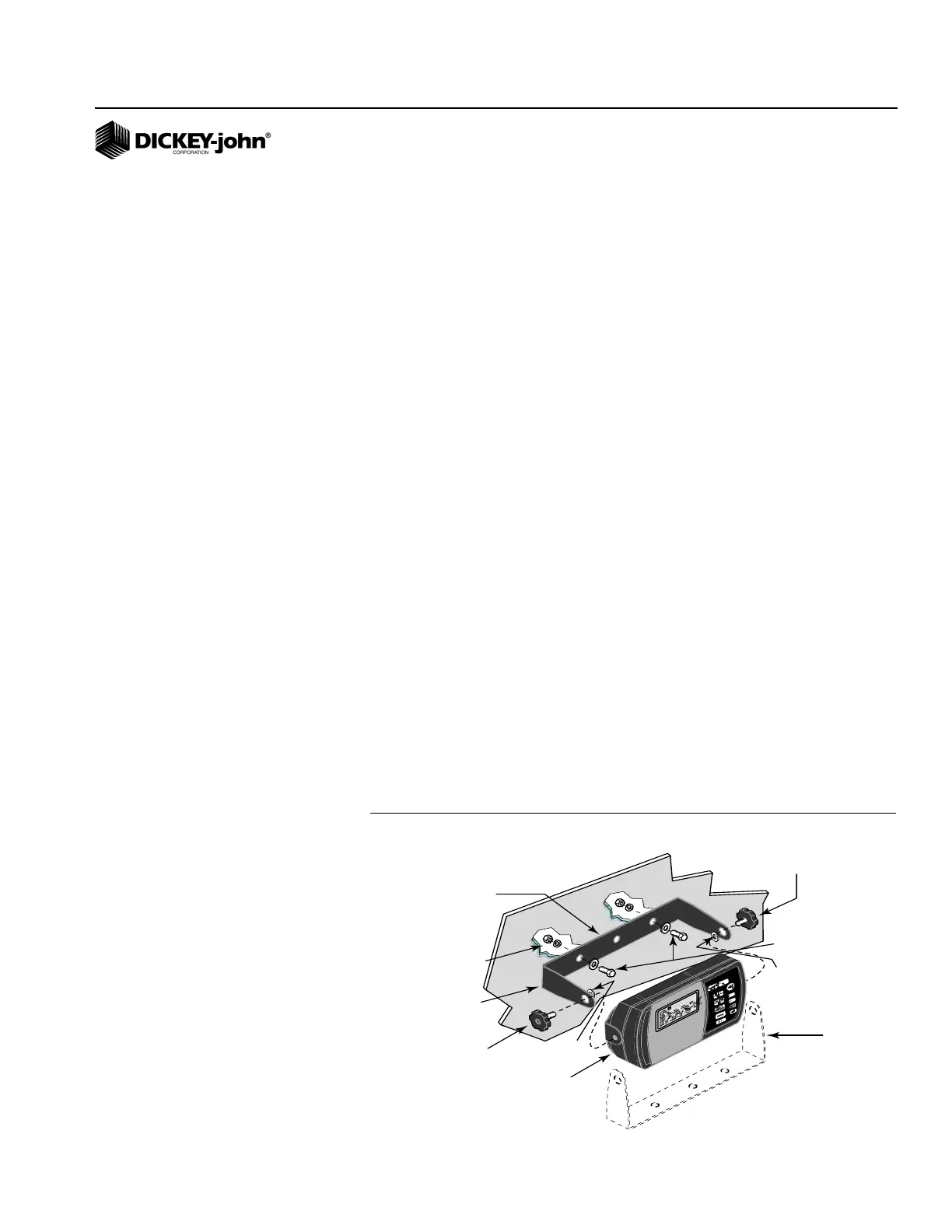

Figure 2
Display Console Mounting
