32/ SETUP
OPERATOR'S MANUAL
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A
22. Number of Pressure Sensors
This is the actual number of Pressure
Sensors that are connected to a Shaft
Speed Module on the system. This
parameter will be checked as part of the
Sensor/Module Self-Test, and Error
codes will be generated if this value does
not match the actual number of Pressure
Sensors. Figure 30 shows a configura-
tion of one (1) Pressure Sensor.
23. Pressure Sensor Hi Limit
The Pressure Sensor Hi Limit Warning
is entered in oz/in
2
(kPa). The Hi and
Lo warning limits are accessible only if
the Number of Pressure Sensors has a
value other than 0. Setting the Pressure
Sensor Hi Limit will cause the audible
alarm to sound when the pressure
exceeds the value that has been entered.
Use the SET and SELECT switches to
adjust the Pressure Sensor Hi Limit
value. The Pressure Sensor Hi Limit
can be enabled or disabled by selecting
the ON or OFF symbol after the
rightmost digit. Pressing the SET switch
will toggle the status of the warning
between ON and OFF. Figure 31 shows
a Pressure Sensor Hi Limit of 18.0 with
the warning enabled.

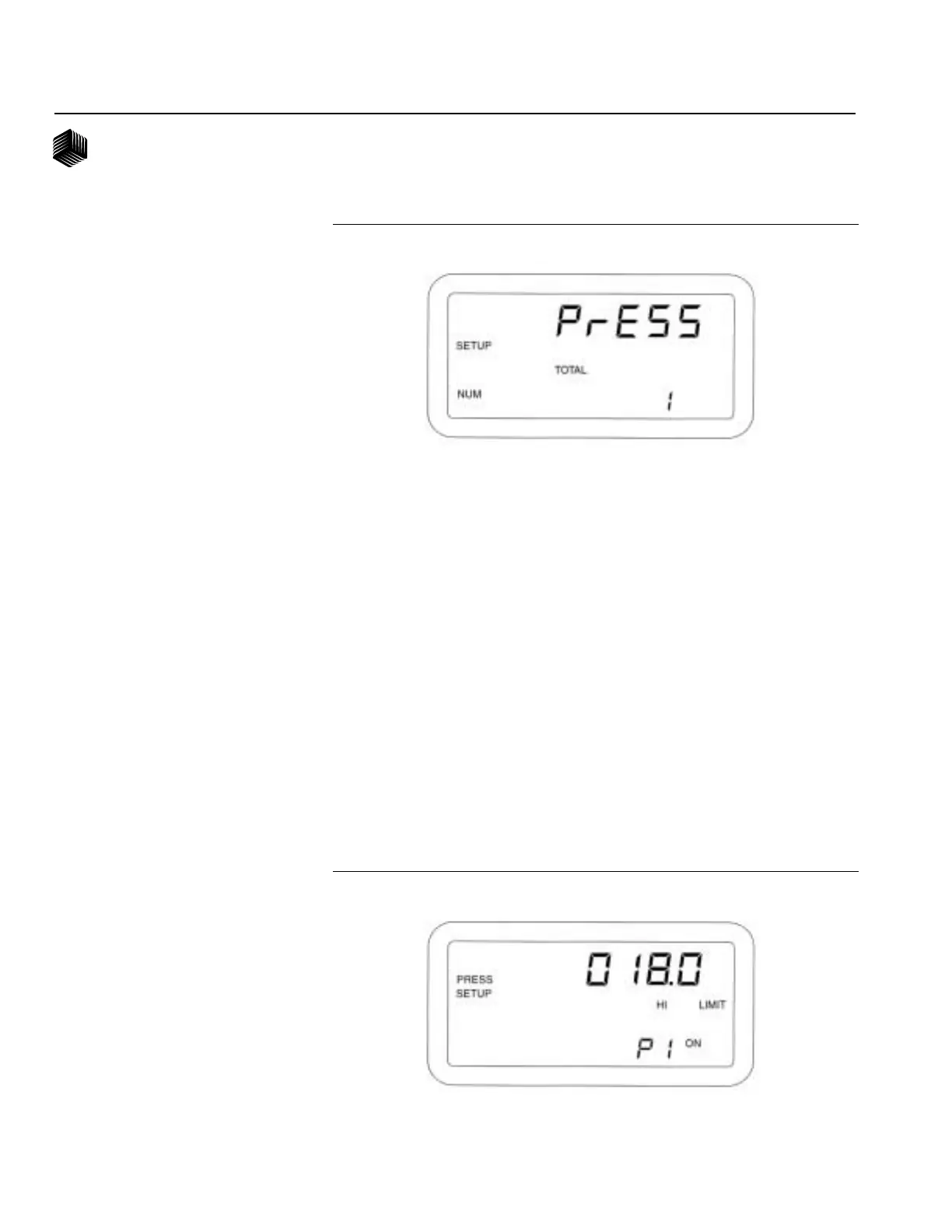

Figure 30
Pressure Sensor Display
Figure 31
Hi Limit Pressure Display
