DI-5000_DP-5000_DPS-5000 Service Manual Edition 2
100
11. OPTION KITS INSTALLATION
11.1 RF Antenna Installation

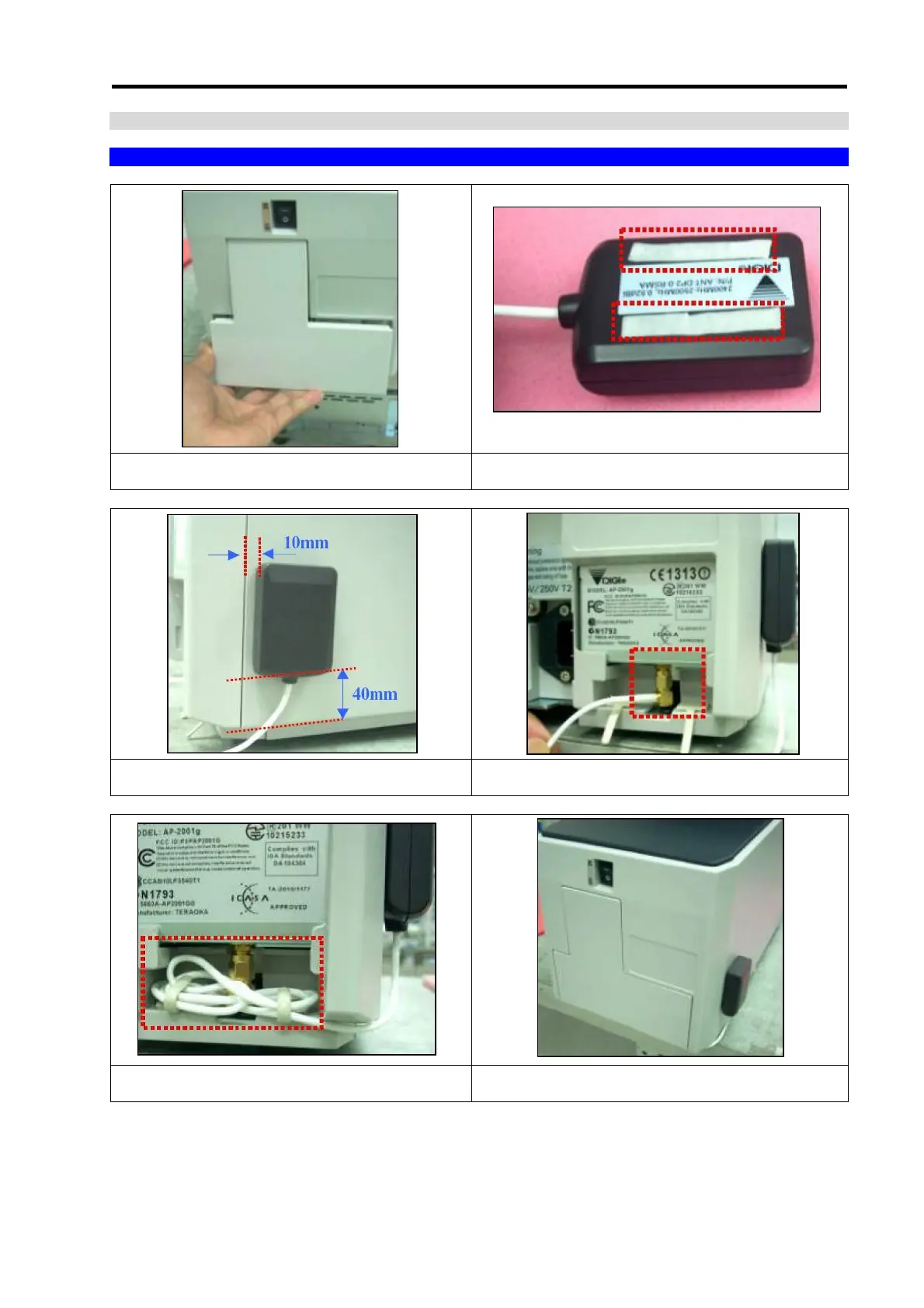

1. Pull out to open the rear cover.
2. Remove the 2 pcs Adhesive cover on Antenna.
3. Paste Antenna on the right side cover.
4. Connect and lock end of antenna cable to RF.
5. Route and fold the antenna cable & clamp it.
6. Fix back the rear cover. Completed.
