DI-5000_DP-5000_DPS-5000 Service Manual Edition 2
102

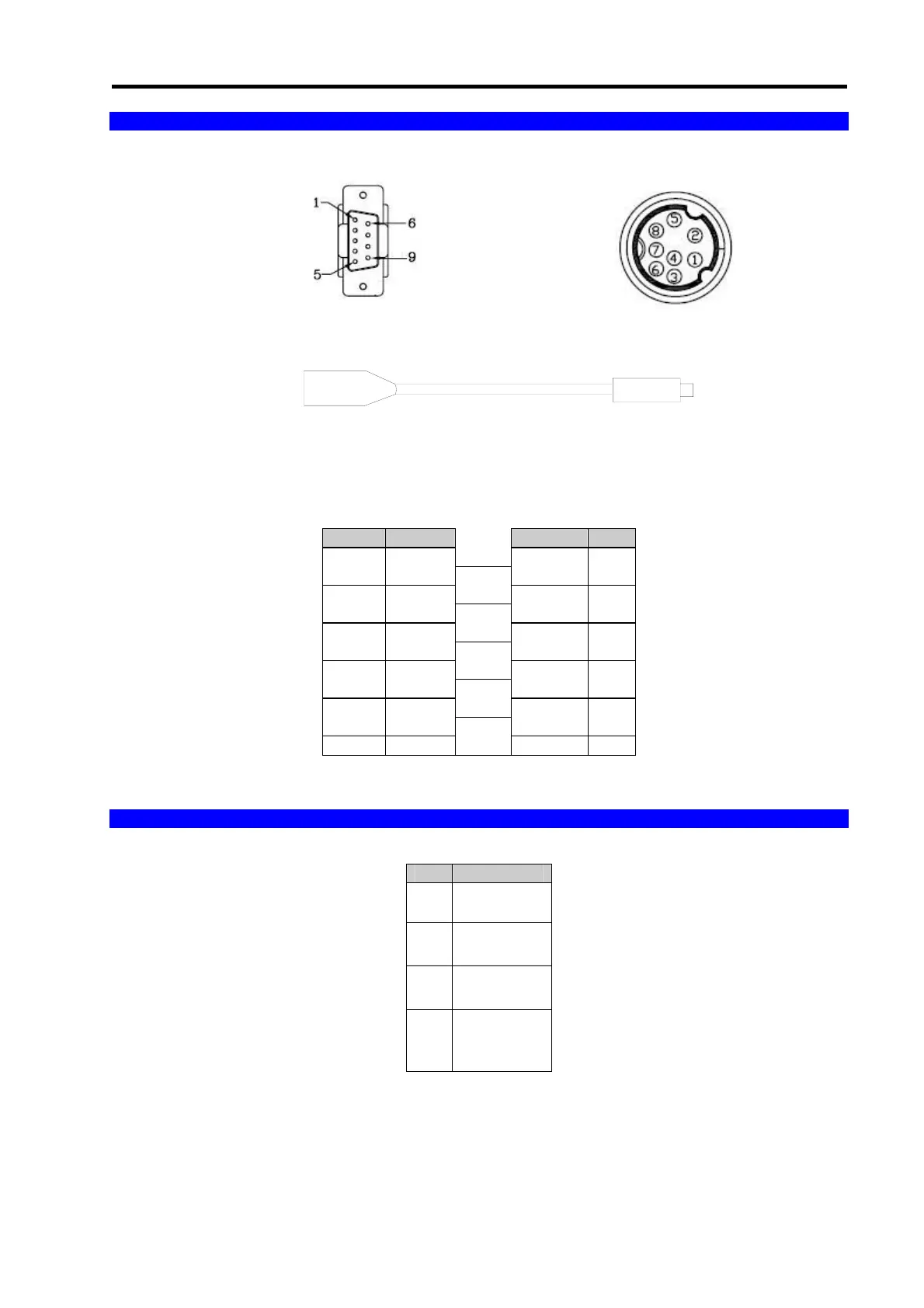

12.2 RS232C Port
PIN SIGNAL SIGNAL PIN
5 GND GND 2
3 TXD RXD 4
2 RXD TXD 5
7 RTS CTS 6
8 CTS RTS 7
1,4,6,9 N.A. N.A. 1,3,8
12.3 USB Port
Pin Signal
1 +5V
2 USB
D-
3 USB
D+
4 GND
PC Com 1 or 2
(9 pin)
DP-5000 Scale side
PC Side / RS-232 device
9 Pin D-Sub (Female)
SCALE side
8 Pin MiniDin plug (Female)
Scale side
8 Pin MiniDin Plug
Female (Front view)
PC side
9 Pin D-Sub Plug
Female
