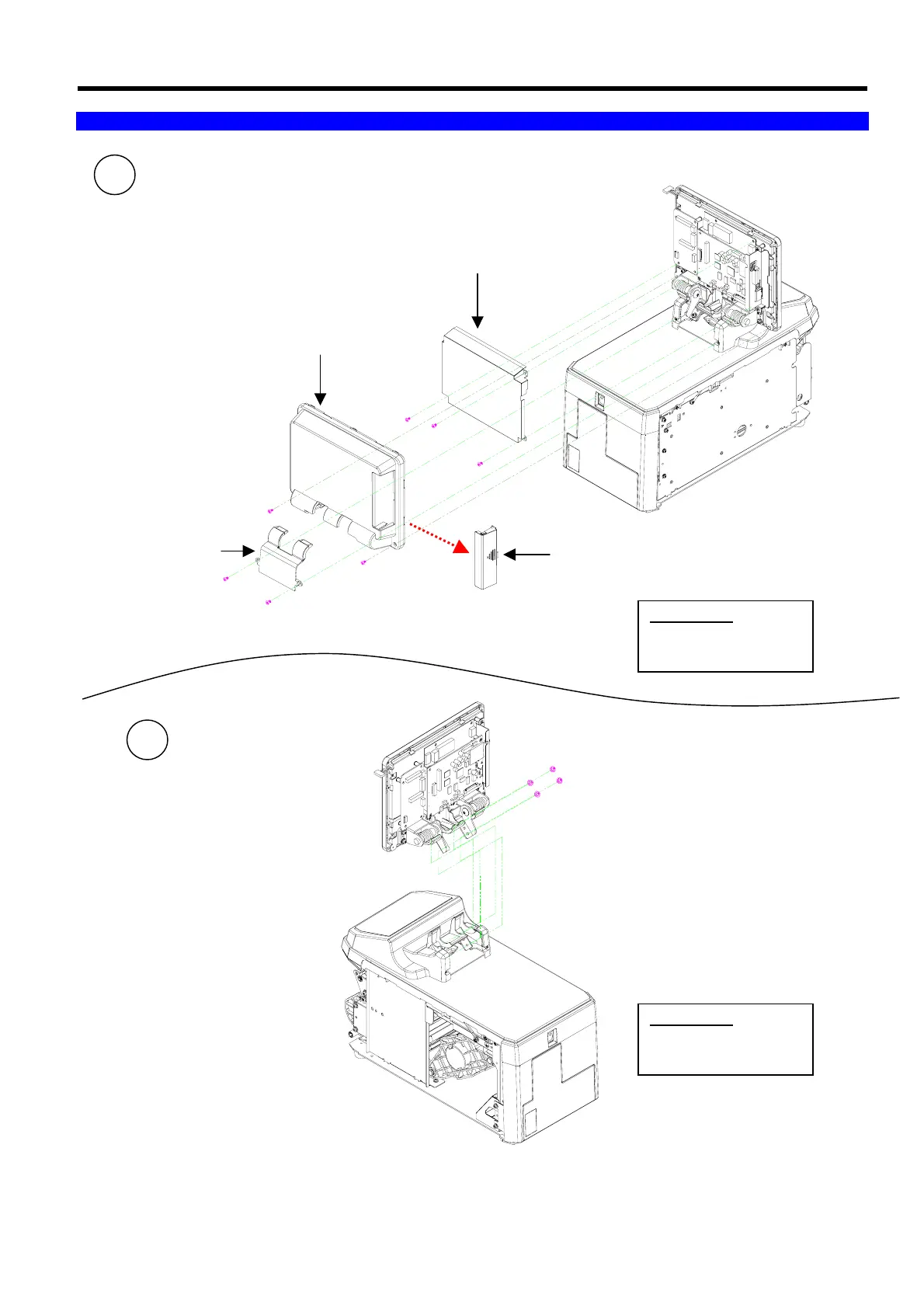

9.3 Disassembly of CPU Board, Inverter Board, Touch Relay Board and Display LCD
101
101
101
101
101
101
101
Screw Type:
101 – Binding Head M3x8
101
101
101
101
Screw Type:
101 – Binding Head M4x8
1
2
45004901801801
Bracket AR(Shield)
45004902300102
Case AA(Inpane Rear TWS)
45006702800901
Cover AI(Inp Base Rea)
45006702801102
Cover AK(Inp IF Cover)
