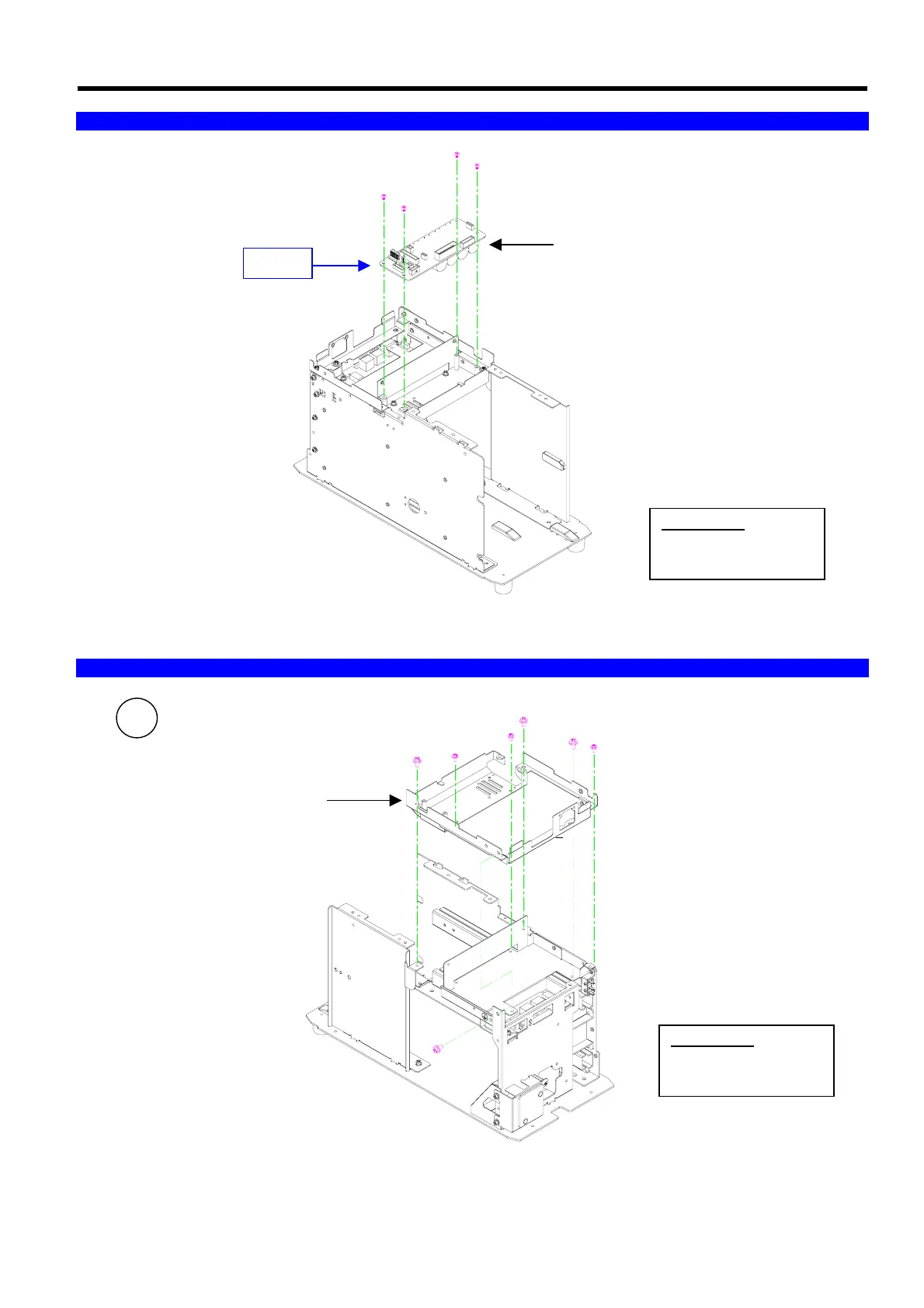

9.11 Disassembly of I/O (Base) Board
9.12 Disassembly of I/O Interface Board
Screw Type:
101 – Sems B M3x6
102 - Sems B M4x8
101
101
101
101
Screw Type:
101 – Binding Head M3x6
102
102
101
101
101
102
102
1
45004990300300
Elec Assy I/O Blk AC
45004901800104
Bracket AA (IO PCB)
Item 6
