DI-5000_DP-5000_DPS-5000 Service Manual Edition 2
50

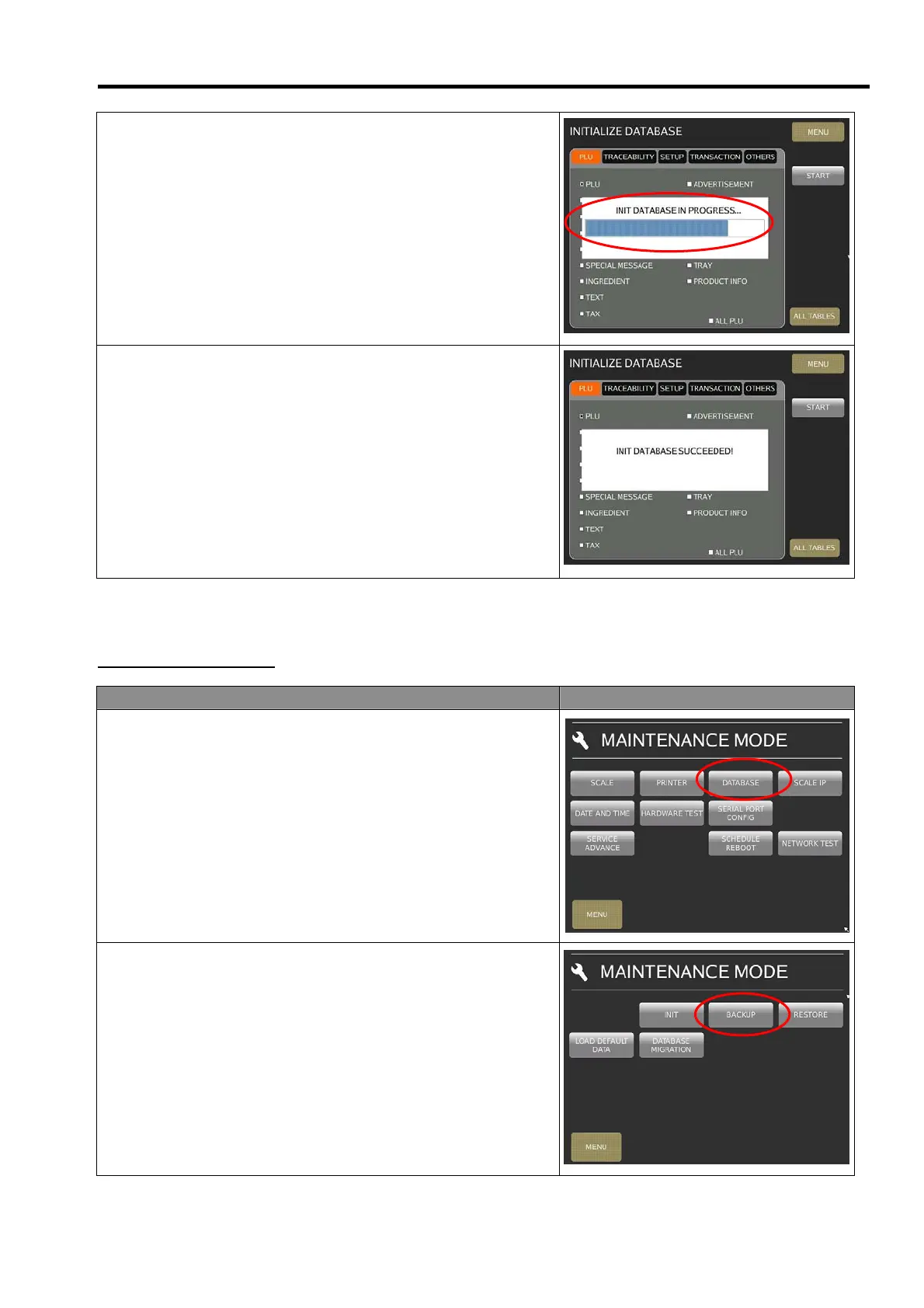

5) Waiting for initialization progress.
6) Initialization database successfully.
7.2.2 Database Backup
Procedure
1) In Registration mode, select
[MENU]
[MAINTENANCE]
[MAINTENANCE]
[DATABASE]
to go to DATABASE
mode.
2) In Database menu, select
[BACKUP]
.
50
52
Table of Contents
Default Chapter
2
Table of Contents
2
I) Notice
6
II) Safety Information
7
III) Safety Regulations
8
IV) Treatment and Recovery of WEEE
9
1 General
11
Model Specification
11
Operating Specification
11
Overall Dimension (in MM)
12
Label Specifications
13
2 Key Sheet and Display
14
Key Sheet Layout and Key Function
14
Key Sheet Layout
14
Key Function
14
Operator Display Indicator Layout
16
3 Software Funtional Structure
17
4 I/O Ports, Span Switch and W&M Sealing Location
20
I/O Port
20
Span Switch (for DI-5000 & DPS-5000)
21
W&M Sealing (for DI-5000 & DPS-5000)
22
5 Initial Setup
23
Media Loading
23
Switching Printing for Label and Receipt Function
23
Software Setup
24
Default Country SPEC
24
User SPEC
25
Module SPEC
27
Scale SPEC
28
Weigh & Measure SPEC
29
SEARCH Function Procedure
30
Date and Time
32
Daylight Saving Time
33
Span Adjustment (Weight Calibration) (for DI-5000 and DPS-5000 Only)
35
6 System Setup
37
Network Setup
37
Scale IP Address
37
Database IP Address
38
Scale MAC Address
39
WLAN (RF Bridge) Setup
40
Base Station (BS-02) Setup
42
Serial Port Configuration
42
Language Translation
43
7 Hardware Test and Maintenance
45
Printer Test
45
Sensors Status
45
Sensor Calibration
46
Thermal Head Detected
49
Database Maintenance
50
Database Initialization
50
Database Backup
51
Database Restore
53
Load Default Data
54
Database Migration
55
USB Backup / Restore
57
USB Backup
57
USB Restore
59
Hardware Test
61
Input
61
Usb
62
Rs232
63
Ethernet
64
Touch Screen Calibration
65
System Information
68
AD Board Write Checksum (for DI-5000 & DPS-5000)
70
Maintenance
72
Thermal Head Cleaning
72
Basic Cleaning
73
Dismantled Thermal Head
73
8 Firmware Upgrading
75
Kernel
75
PC Scale Application
82
Printer Firmware
83
9 Major Part Disassembly
85
Disassembly of
85
Disassembly of Main Body Side Cover
85
Disassembly of CPU Board, Inverter Board, Touch Relay Board and Display LCD
86
Disassembly of Keyboard Block
89
Disassembly of Top Cover
89
Disassembly of WLAN Kit
90
Disassembly of Thermal Head Unit
91
Disassembly of Printer Block
92
Disassembly of AD Board (for DI-5000 / DPS-5000 Only)
93
Disassembly of Power Supply Unit
94
Disassembly of I/O (Base) Board
95
Disassembly of I/O Interface Board
95
10 Hardware Details
97
Block Diagram
97
Dp-5000
97
DI-5000 / Dps-5000
98
Power Supply Unit
99
CPU Board
99
11 Option Kits Installation
101
RF Antenna Installation
101
12 Port Pin Configuration and Cable
102
Ethernet Port
102
RS232C Port
103
USB Port
103
13 Specification List
104
W&M Spec
104
W&M Scale
104
W&M Tare
105
W&M Price
106
W&M Operation
107
Printer SPEC
108
User SPEC
110
Barcode
110
Item Barcode
110
Total Item
111
Multibarcode
112
Communication
112
Label
113
Advertisement
113
Currency Symbol
113
Data Fields
113
Field Title
114
Ingredient
114
Label Format
114
Nutrition
116
Other
116
Quantity and Symbol
117
Shop Name
117
Receipt
117
General
117
Talon
118
Void Receipt
119
Settings
119
Accumulation & Change Mode
119
Auto Entry & Reentry
120
Auto PLU Call
120
Auto Printing
120
Barcode Scanner
120
Cash Drawer
120
CCD
121
Commodity Name Shown
121
Continues Printing
122
Cool
122
Customer
122
Date Time Format
123
Discount
123
EL Display
124
Flexkey
124
Force Quantity
124
Force Shelf Life
125
Function Key Related
125
Hi-Touch
125
Image & Text
125
Log
125
Manual Price Entry
126
Non Weigh Counting
126
Operator
126
Order & Basket
126
Other
127
Password
128
PLU Grouping
128
PLU Search
128
Preset
128
Product Info
129
Report
129
Self Service
129
Traceability
130
Unit Price Override
131
Unit Price Recalculation
131
Module SPEC
132
Password
132
E-Label & Hi-Touch
132
Queue System & Turn Chime
132
Other
132
Scale SPEC
134
Scale Price
134
Scale Tax
134
Scale Operation
134
14 Revision Records
136
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
