4. I/O PORTS, SPAN SWITCH AND W&M SEALING LOCATION

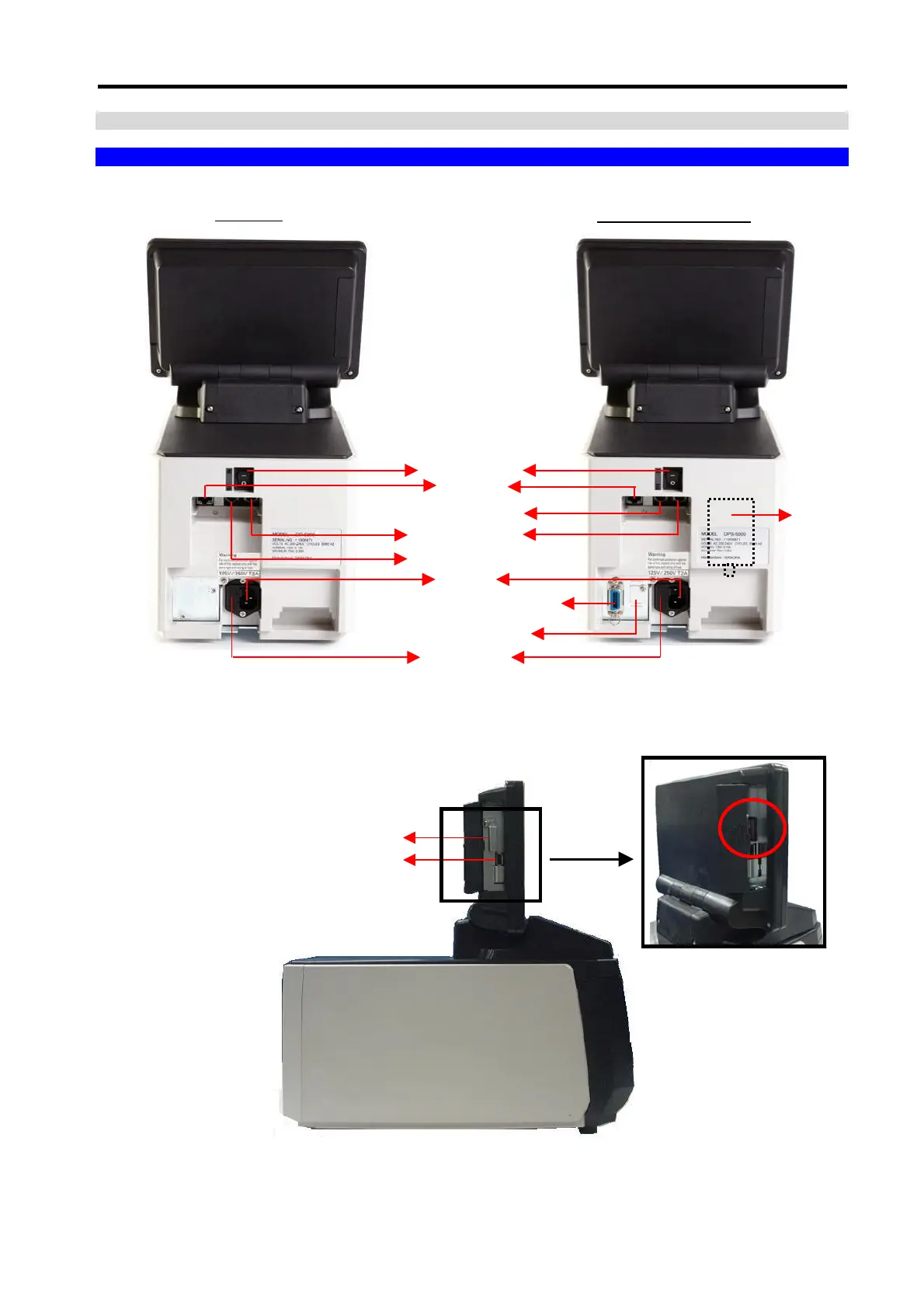

4.1 I/O Port
Ethernet
Fuse Holder
A
C Inlet
SD Card Slot
USB
ON/OFF Switch
Span Switch Cover
DP-5000
DI-5000 / DPS-5000
RS-232 (COM 1)
External Platform Connector
RS-232 (COM 2)
RS-232 (COM 1)
Direction of SD Card
(Label side face to rear)
WLAN
Bridge
(Inside)
