Digi SM-110

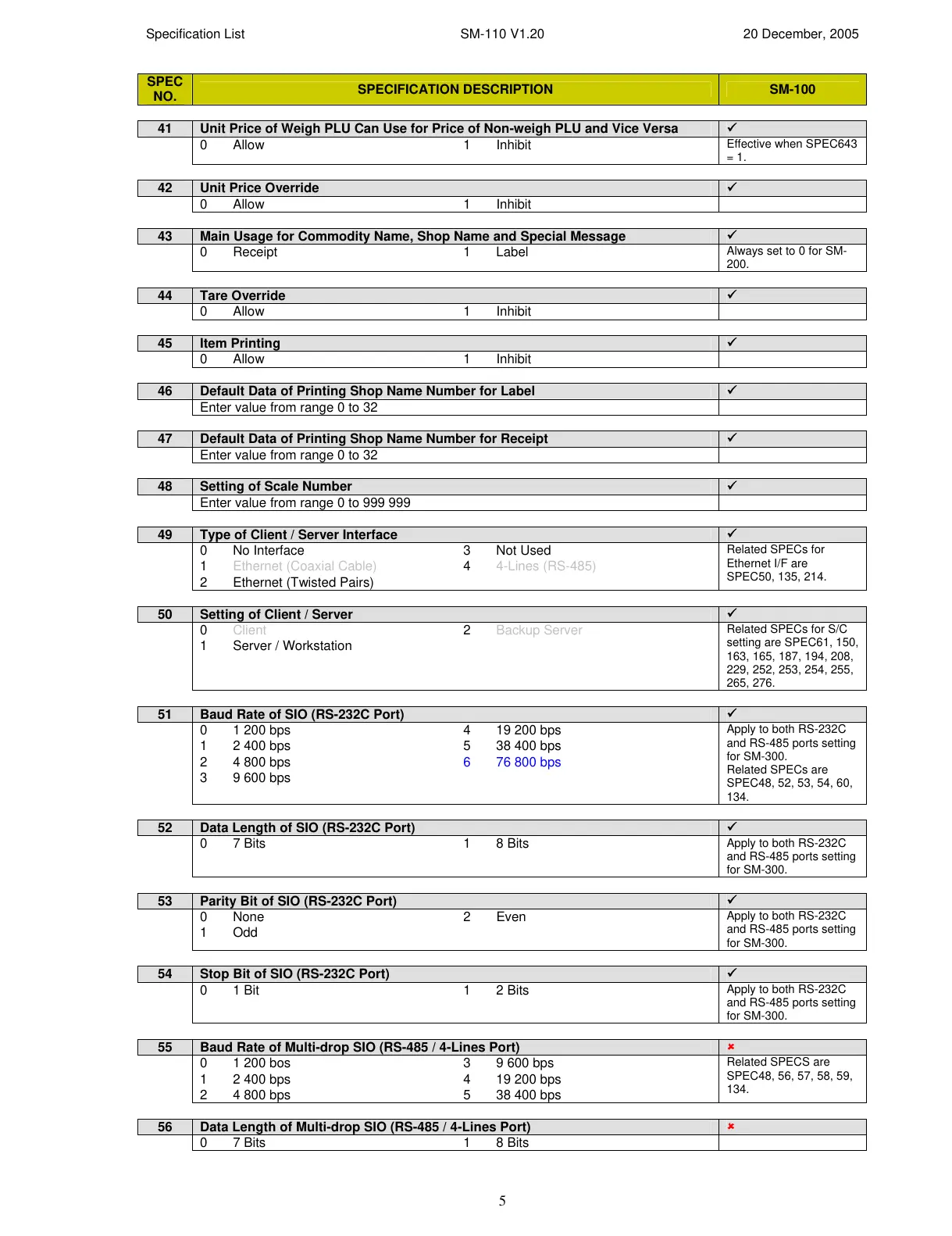

Specification List SM-110 V1.20 20 December, 2005
5
SPEC
NO.
SPECIFICATION DESCRIPTION SM-100
41 Unit Price of Weigh PLU Can Use for Price of Non-weigh PLU and Vice Versa
9
0 Allow 1 Inhibit
Effective when SPEC643
= 1.
42 Unit Price Override
9
0 Allow 1 Inhibit
43 Main Usage for Commodity Name, Shop Name and Special Message
9
0 Receipt 1 Label
Always set to 0 for SM-
200.
44 Tare Override
9
0 Allow 1 Inhibit
45 Item Printing
9
0 Allow 1 Inhibit
46 Default Data of Printing Shop Name Number for Label
9
Enter value from range 0 to 32
47 Default Data of Printing Shop Name Number for Receipt
9
Enter value from range 0 to 32
48 Setting of Scale Number
9
Enter value from range 0 to 999 999
49 Type of Client / Server Interface
9
0 No Interface 3 Not Used
1 Ethernet (Coaxial Cable) 4 4-Lines (RS-485)
2 Ethernet (Twisted Pairs)
Related SPECs for
Ethernet I/F are
SPEC50, 135, 214.
50 Setting of Client / Server
9
0 Client 2 Backup Server
1 Server / Workstation
Related SPECs for S/C
setting are SPEC61, 150,
163, 165, 187, 194, 208,
229, 252, 253, 254, 255,
265, 276.
51 Baud Rate of SIO (RS-232C Port)
9
0 1 200 bps 4 19 200 bps
1 2 400 bps 5 38 400 bps
2 4 800 bps 6 76 800 bps
3 9 600 bps
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
Related SPECs are
SPEC48, 52, 53, 54, 60,
134.
52 Data Length of SIO (RS-232C Port)
9
0 7 Bits 1 8 Bits
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
53 Parity Bit of SIO (RS-232C Port)
9
0 None 2 Even
1 Odd
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
54 Stop Bit of SIO (RS-232C Port)
9
0 1 Bit 1 2 Bits
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
55 Baud Rate of Multi-drop SIO (RS-485 / 4-Lines Port)
8
0 1 200 bos 3 9 600 bps
1 2 400 bps 4 19 200 bps
2 4 800 bps 5 38 400 bps
Related SPECS are
SPEC48, 56, 57, 58, 59,
134.
56 Data Length of Multi-drop SIO (RS-485 / 4-Lines Port)
8
0 7 Bits 1 8 Bits
