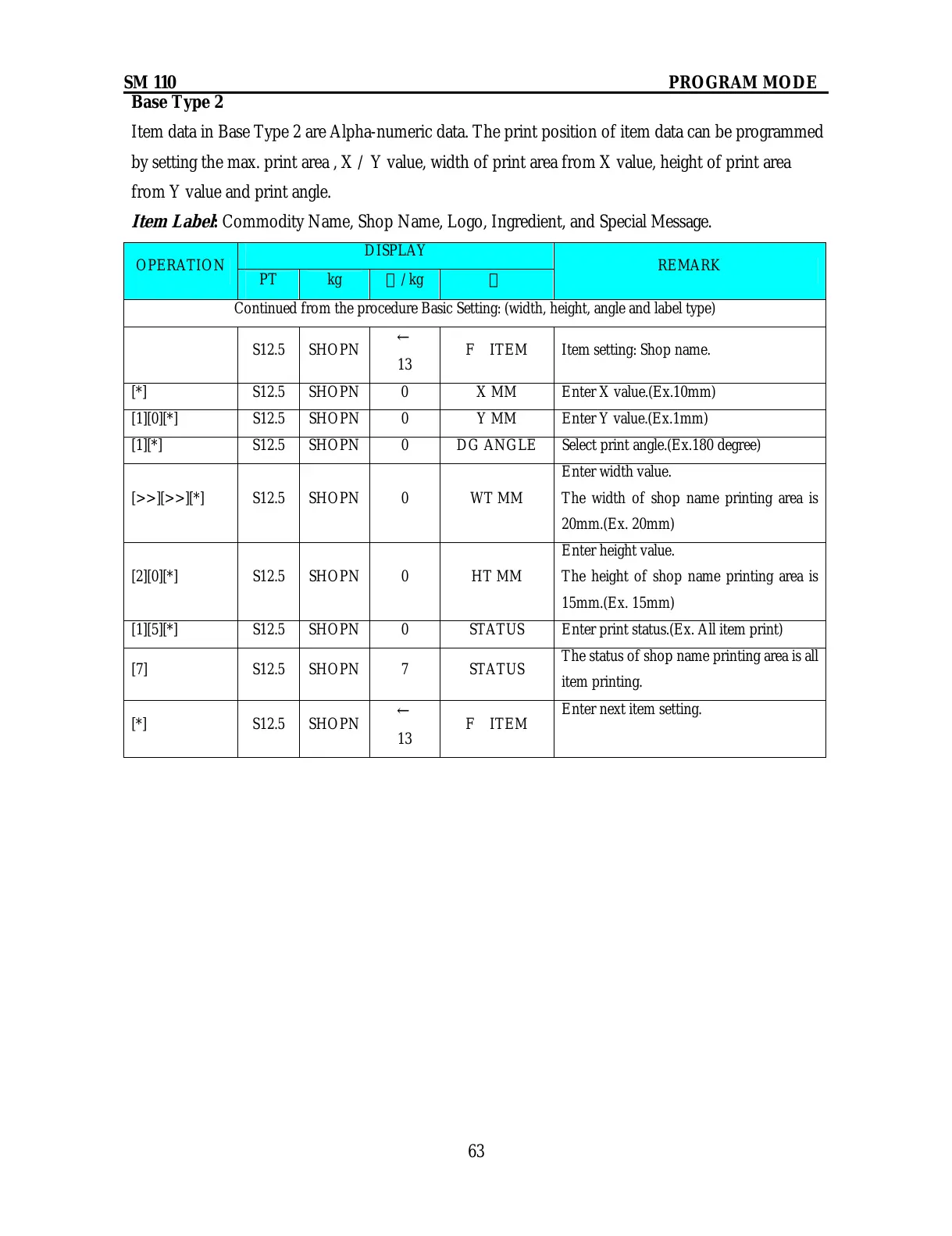

SM 110 PROGRAM MODE
63
Base Type 2
Item data in Base Type 2 are Alpha-numeric data. The print position of item data can be programmed
by setting the max. print area , X / Y value, width of print area from X value, height of print area
from Y value and print angle.
Item Label : Commodity Name, Shop Name, Logo, Ingredient, and Special Message.
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
Continued from the procedure Basic Setting: (width, height, angle and label type)
S12.5 SHOPN
←
13
F ITEM Item setting: Shop name.
[*] S12.5 SHOPN 0 X MM Enter X value.(Ex.10mm)
[1][0][*] S12.5 SHOPN 0 Y MM Enter Y value.(Ex.1mm)
[1][*] S12.5 SHOPN 0 DG ANGLE Select print angle.(Ex.180 degree)
[>>][>>][*] S12.5 SHOPN 0 WT MM
Enter width value.
The width of shop name printing area is
20mm.(Ex. 20mm)
[2][0][*] S12.5 SHOPN 0 HT MM
Enter height value.
The height of shop name printing area is
15mm.(Ex. 15mm)
[1][5][*] S12.5 SHOPN 0 STATUS Enter print status.(Ex. All item print)
[7] S12.5 SHOPN 7 STATUS
The status of shop name printing area is all
item printing.
[*] S12.5 SHOPN
←
13
F ITEM
Enter next item setting.
