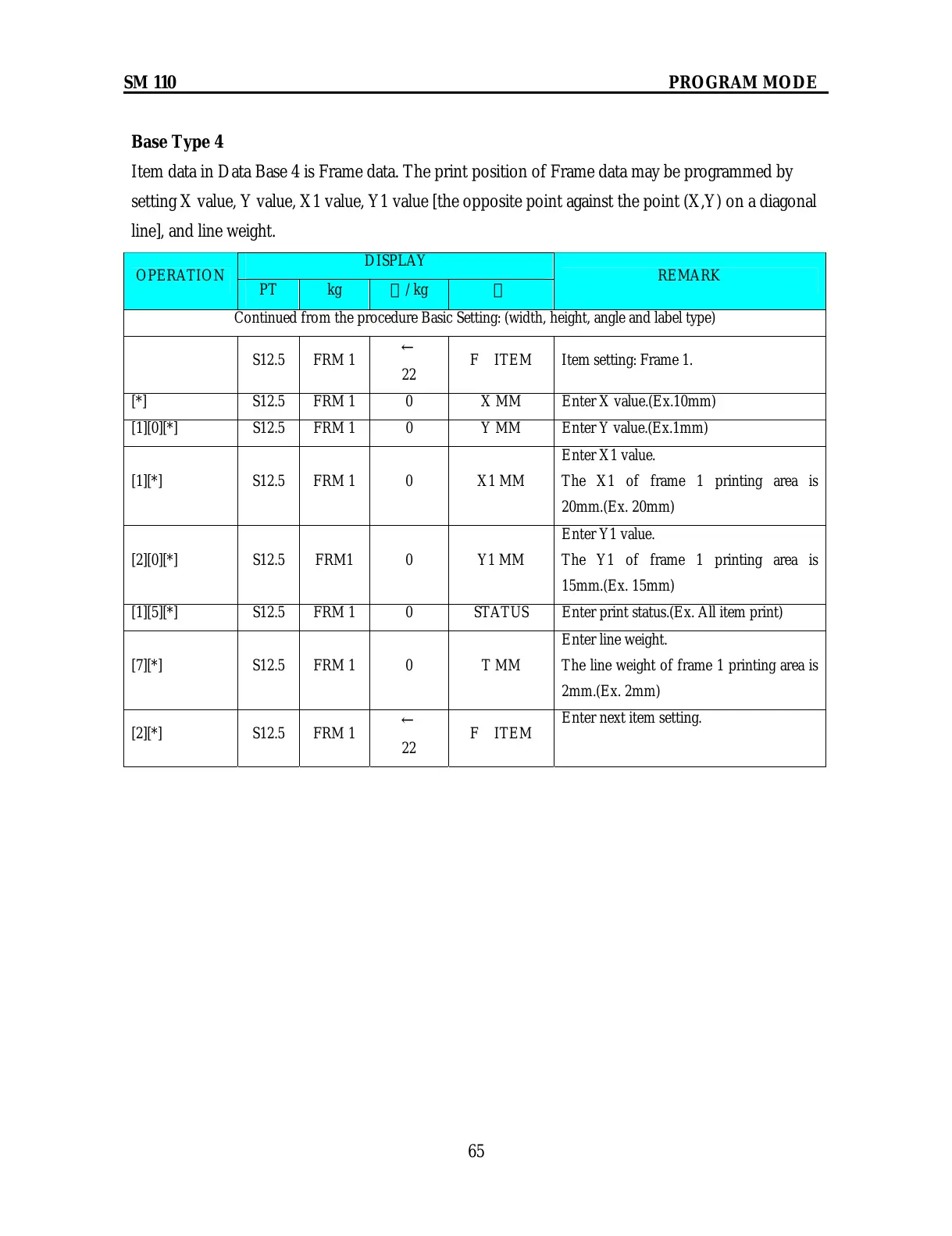

SM 110 PROGRAM MODE
65
Base Type 4
Item data in Data Base 4 is Frame data. The print position of Frame data may be programmed by
setting X value, Y value, X1 value, Y1 value [the opposite point against the point (X,Y) on a diagonal
line], and line weight.
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
Continued from the procedure Basic Setting: (width, height, angle and label type)
S12.5 FRM 1
←
22
F ITEM Item setting: Frame 1.
[*] S12.5 FRM 1 0 X MM Enter X value.(Ex.10mm)
[1][0][*] S12.5 FRM 1 0 Y MM Enter Y value.(Ex.1mm)
[1][*] S12.5 FRM 1 0 X1 MM
Enter X1 value.
The X1 of frame 1 printing area is
20mm.(Ex. 20mm)
[2][0][*] S12.5 FRM1 0 Y1 MM
Enter Y1 value.
The Y1 of frame 1 printing area is
15mm.(Ex. 15mm)
[1][5][*] S12.5 FRM 1 0 STATUS Enter print status.(Ex. All item print)
[7][*] S12.5 FRM 1 0 T MM
Enter line weight.
The line weight of frame 1 printing area is
2mm.(Ex. 2mm)
[2][*] S12.5 FRM 1
←
22
F ITEM
Enter next item setting.
To Next Page
