Page 13
3.3

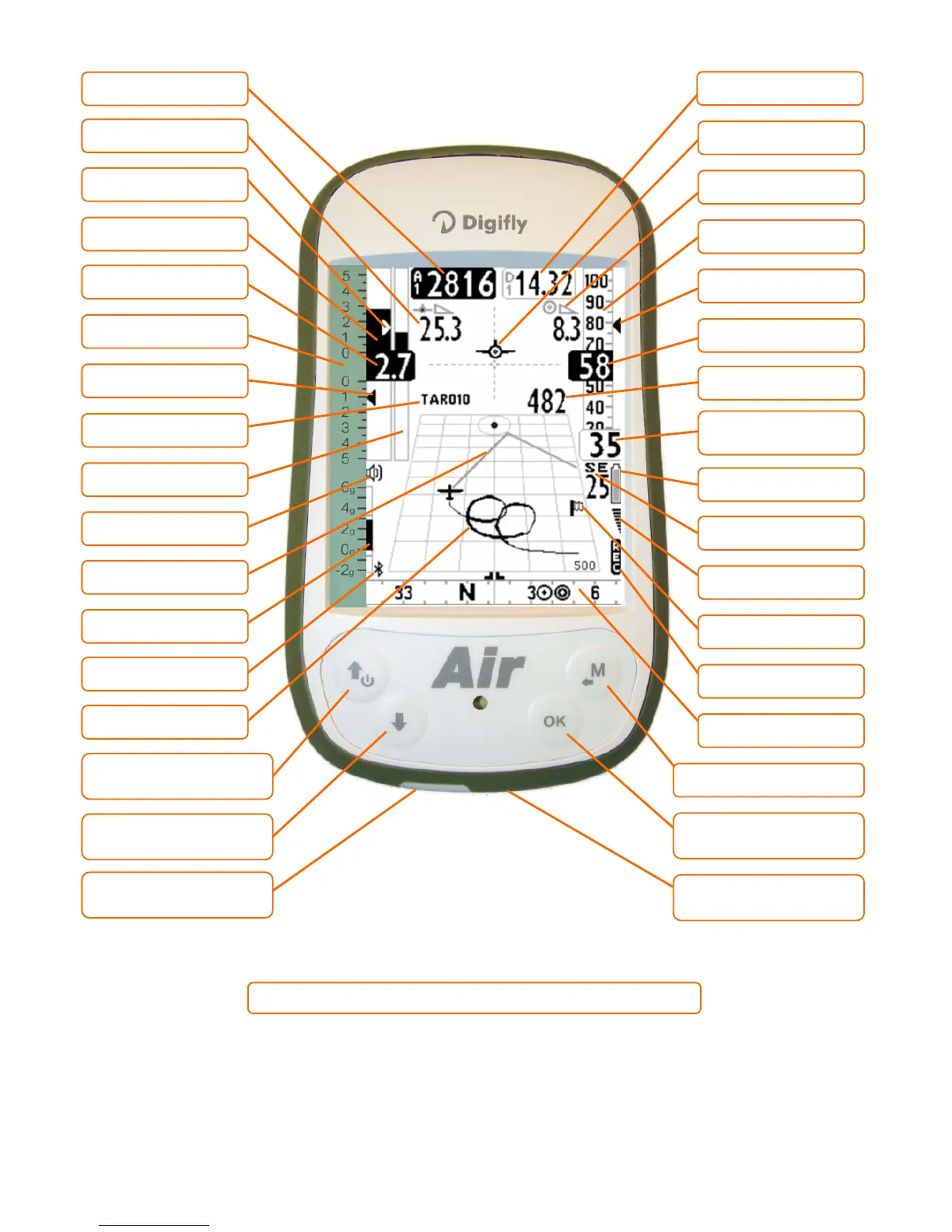

MASTER PLOTTER PAGE
Memory card
slot
micro SD
Flight recorder ON
Estima
t
ed arrival height
over the WP cylinder
Digital Air speed
Ground speed GPS
HSI
Optimal speed to fly STF
Required glide ratio to
WP cylinder
Battery level
Wind direction and Wind
speed
Direction from which the
wind is coming
●
Menù / Return
●
Change Page +
●
●
Reset Altimeter A2
Distance to WP cylinder
Analogival Air speed
Navigation Compass
GPS signal
●
= Normal key pressure
●
●
= Lo
ng key pressure (2 seconds)
Mini USB connector
Batt. charge / PC / MAC
Digital Vario
McCready equivalent
Altimeter A1
Averag.Vario / NettoVario
analogical
Current glide ratio
Analogical Vario
Optimized route to WP
McCready
WP name
Volume level
●
Synch Altim1 with GPS
●
●
Instrument On/Off
●
Change Page -
●
●
Volume level 1-2-Off
Thermal Tutor track
Bluetooth ON
Analogical vario scale
Analogical G-meter
12
14
