Page 16
3.4

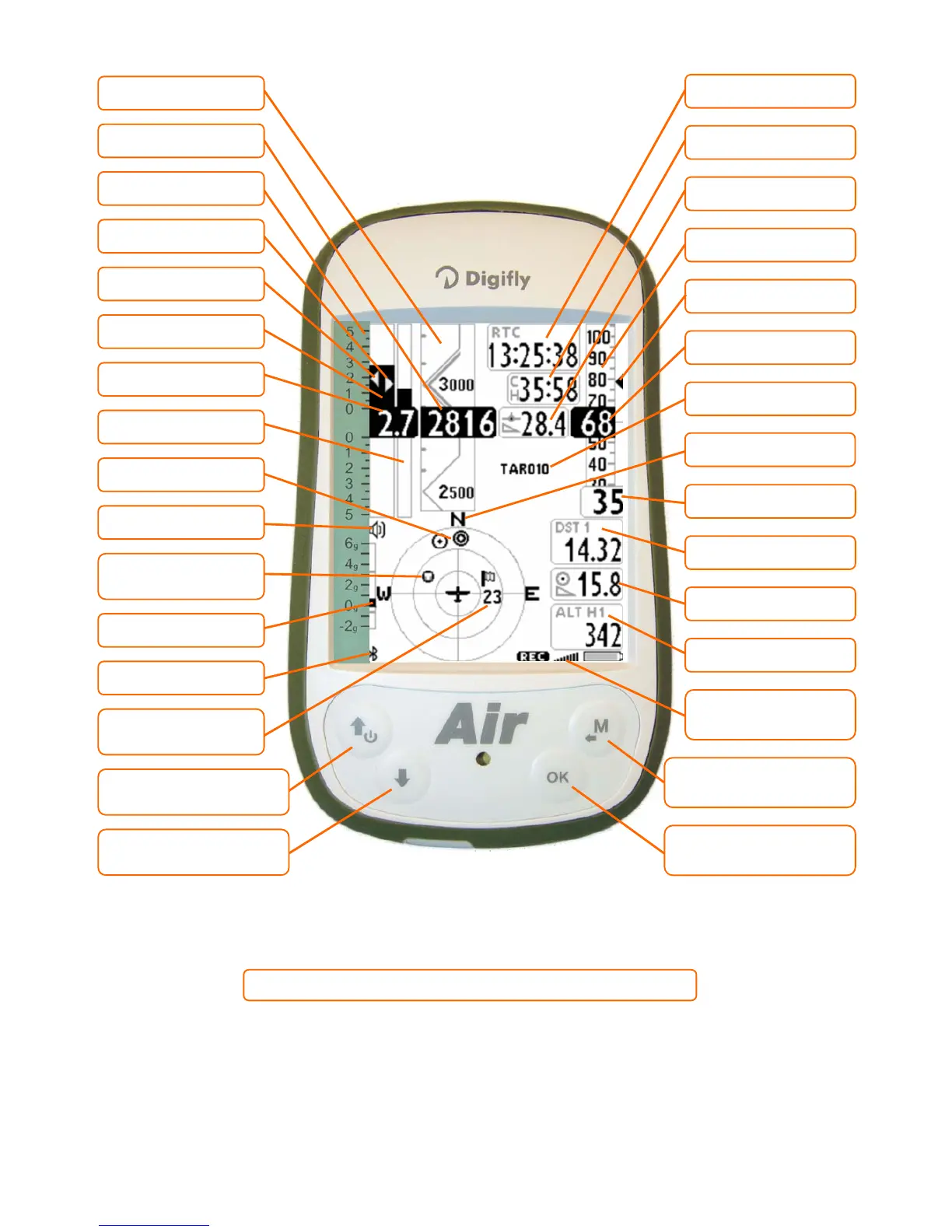

MASTER COMPASS PAGE
●
= Normal key pressure
●
●
= Lo
ng key pressure (2 seconds)
System icons :
Recorder, GPS, Battery
Ground speed GPS
Chronometer
Optimal speed to fly STF
Distance to WP cylinder
Required glide ratio to WP
cylinder
Estimated arrival height
over the WP cylinder
Analogival Air speed
Clock
Digital Air speed
WP name
Current glide ratio
●
Menù / Return
●
Change Page +
●
●
Reset Altimeter A2
Compass main points
McCready equivalent
Digital Vario
Analogical Altimeter A1
Digital Altimeter A1
McCready
Volume level
Analogical vario scale
Averag.Vario / NettoVario
analogical
Direction to WP icons
●
Synch Altim1 with GPS
●
●
Instrument On/Off
●
Change Page -
●
●
Volume level 1-2-Off
Direction to last thermal
Bluetooth ON
Direction from which the
wind is coming / Wind
speed
Analogical G-meter
