3.4.1 VARIOMETER (COMPASS PAGE)

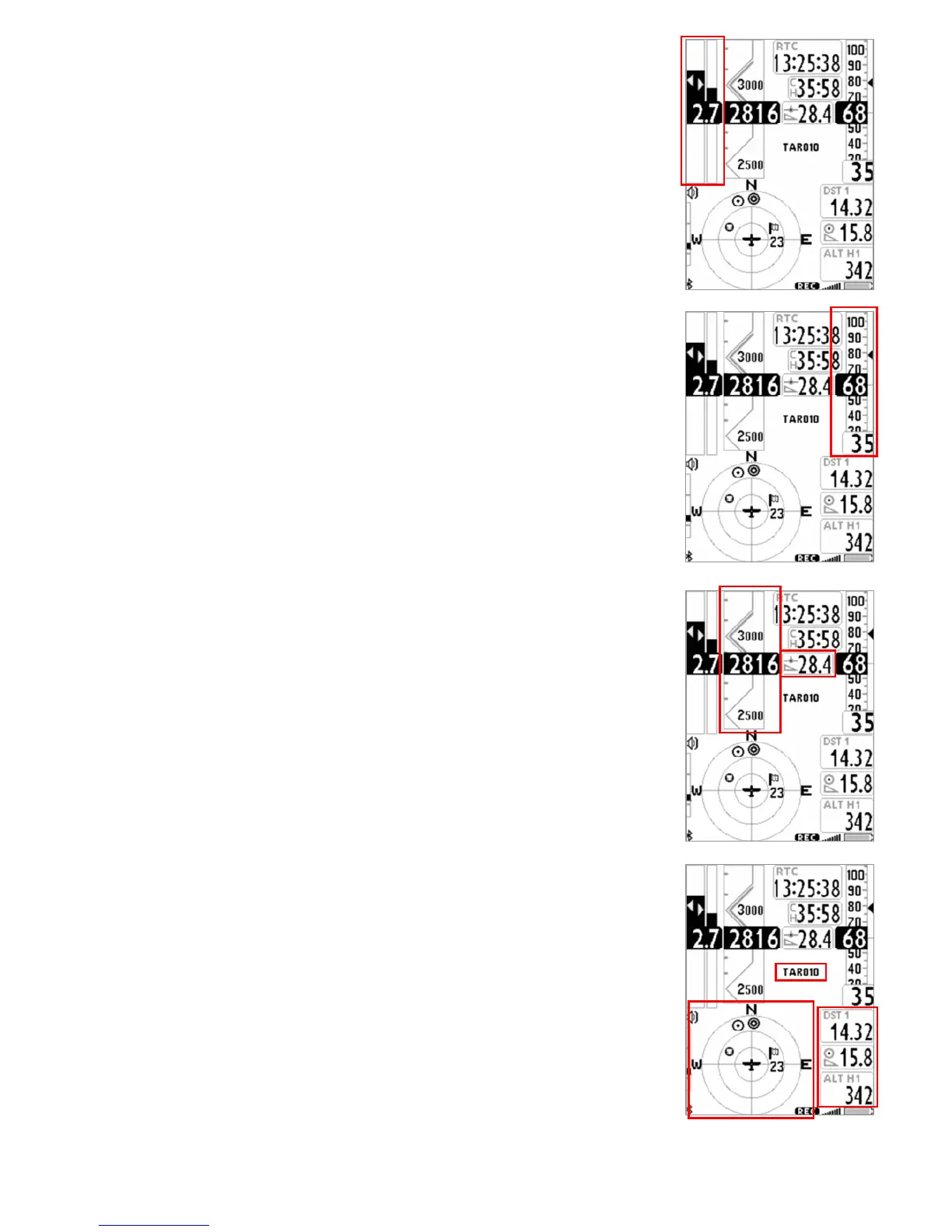

In the area dedicated to the vario information are shown:
o Digital vario;
o average vario / Netto vario;
o McCready value;
o Equivalent McCready value
3.4.2 AIR SPEED / GROUND SPEED (COMPASS PAGE)
In the area dedicated to the anemometer information are shown:
o Scrolling Analog format value Airspeed IAS/TAS;
o Digital format value IAS/TAS;
o Ground speed GS;
o Optimal speed glide ratio (Speed to fly) STF
;
If your not using the Pitot sensor/tube (optional) only the GS (Ground speed) will the
shown in both analog and digital format.
3.4.3 GRAPHIC ALTIMETER A1 , CURRENT GLIDE RATIO (COMPASS PAGE)
Beside the digital variometer we find the A1 graphic altimeter and current
efficiency.
Graphic Altimeter : digital value of A1 altimeter is integrated with the graphic
scrolling altimeter. With a friendly scale and numeric indications every 500
meters embeded into an angular graphic view making more readable the
numbers in the thousands. There is even a simple graduated scale fore meters
in the hundreds.
3.4.4 NAVIGATION (COMPASS PAGE)
In the compass page, navigation is shown with a number of concentric rings in
witch icons are moving:
in the outside ring there are the cardinal points N-E-S-W;
- in the thicker ring there are the direction icons to WP;
- in the inner ring there are the direction icons to the thermal, wind direction and
speed.
You can also find the following digital informations
- glide ratio needed to the current cylider WPT and its distance
- Expected arrival height to current Cylinder WPT
- Name of current WPT
