5 ADVANCED FUNCTIONS
5.1 MAGNETIC COMPASS (HEADING)
Magnetic compass (HEADING) shows directions related to magnetic north.
Made with solid state sensors along the 3 axes, ensures correct functionality even if not fully leveled
5.2 G-METER
G-meter value (G-METER) shows the number of “G” at which we are subjected .
Made with solid state G-sensors along the 3 axes
5.3 INERTIAL PLATFORM (AHRS)
The inertial platform (AHRS) produces data
regarding space location: pitch, roll and yaw.
Made by a data acquisition system with a complex
processing algorithm and 9 solid state sensors : 3
accelerometer sensors, 3 magnetometer e 3
gyroscope sensors.

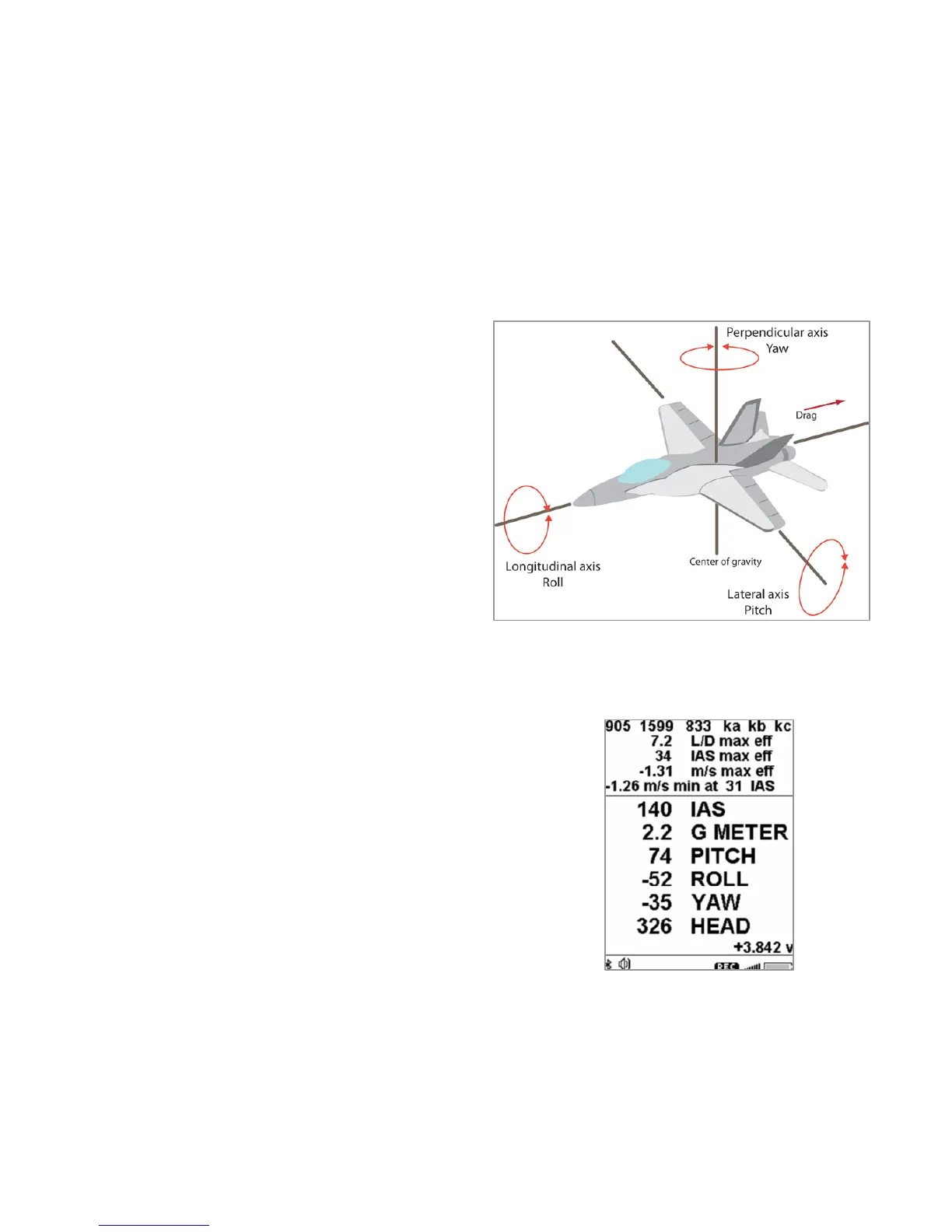

5.3.1 PITCH
Points out the angle of rotation compared to lateral axis .
It’s shown in "PRESET 5 PAGE" layout
5.3.2 ROLL
Points out the angle of rotation compared to longitudinal axis .
It’s shown in "PRESET 5 PAGE" layout
5.3.3 YAW
Points out the angle of rotation compared to perpendicular axis .
It’s shown in "PRESET 5 PAGE" layout
