Page 14
3.3.1 VARIOMETER (PLOTTER PAGE)

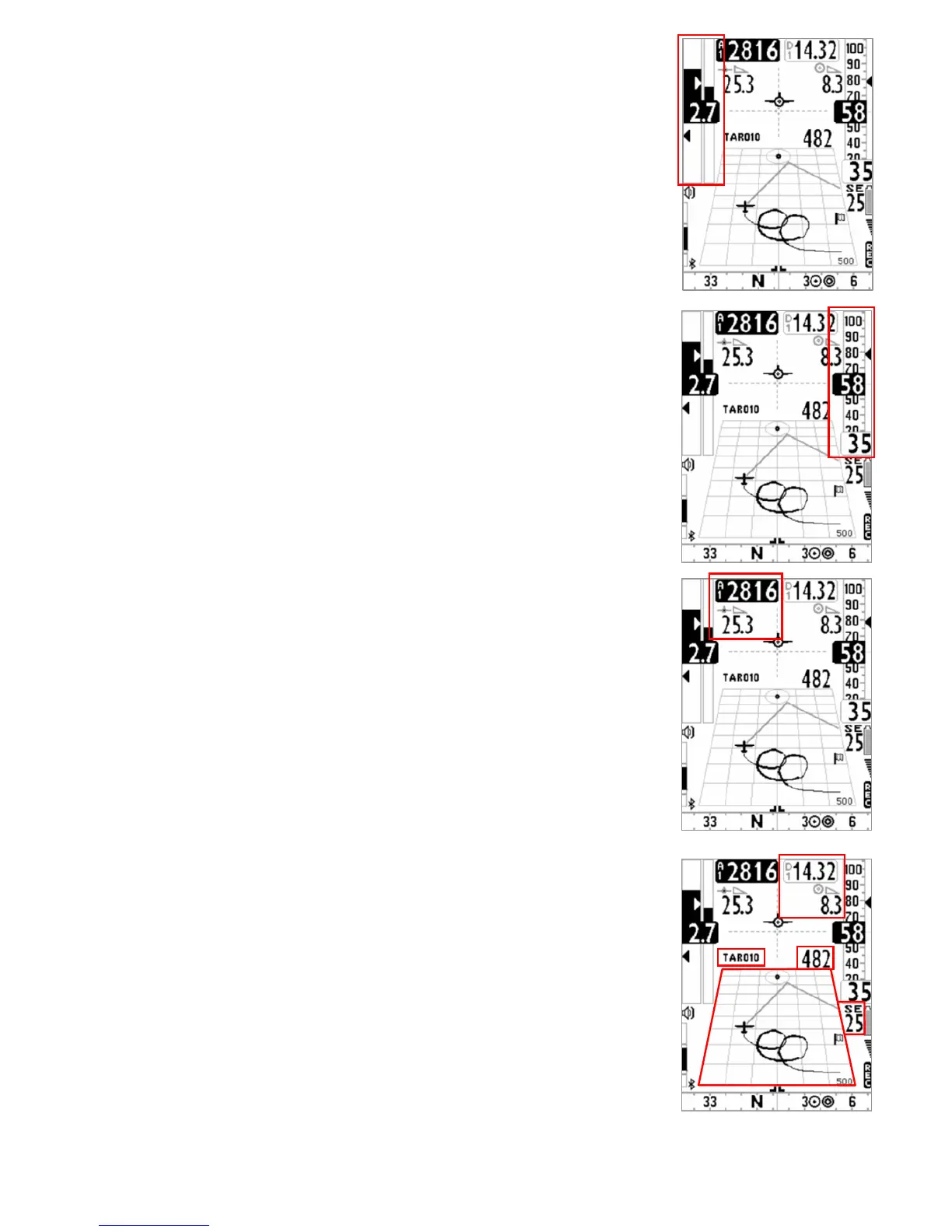

In the area dedicated to the vario information are shown:
o Digital vario;
o average vario / Netto vario;
o McCready value;
o Equivalent McCready value
3.3.2 AIR SPEED / GROUND SPEED (PLOTTER PAGE)
In the area dedicated to the anemometer information are shown:
o Scrolling Analog format value Airspeed IAS/TAS;
o Digital format value IAS/TAS;
o Ground speed GS;
o Optimal speed glide ratio (Speed to fly) STF
;
If your not using the Pitot sensor/tube (optional) only the GS (Ground speed) will then
shown in both analog and digital format.
3.3.3 ALTIMETER A1 , CURRENT GLIDE RATIO (PLOTTER PAGE)
The A1 barometric altimeter and the current efficiency are shown in the top left
part of the display.
3.3.4 NAVIGATION (PLOTTER PAGE)
In the PLOTTER page the navigation is mainly graphical:
o Representation of the flight track towards the current WPT
o Representation of the current WPT cylinder
o Optimized route to the current WPT cylinder
o Optimized route to the next WPT cylinder
o Direction and speed/intensity of the wind
Digital format of the following informations:
o Required glide ratio efficiency to current WPT cylinder and its distance
o Expected arrival height to current WPT cylinder
o Name of current WPT
