IP Endpoints Tab
31
 TalkMaster FOCUS Endpoint – The IP Endpoint will connect to the TalkMaster FOCUS Server or to
an IP Endpoint configured as a Direct Mode Server-Peer.

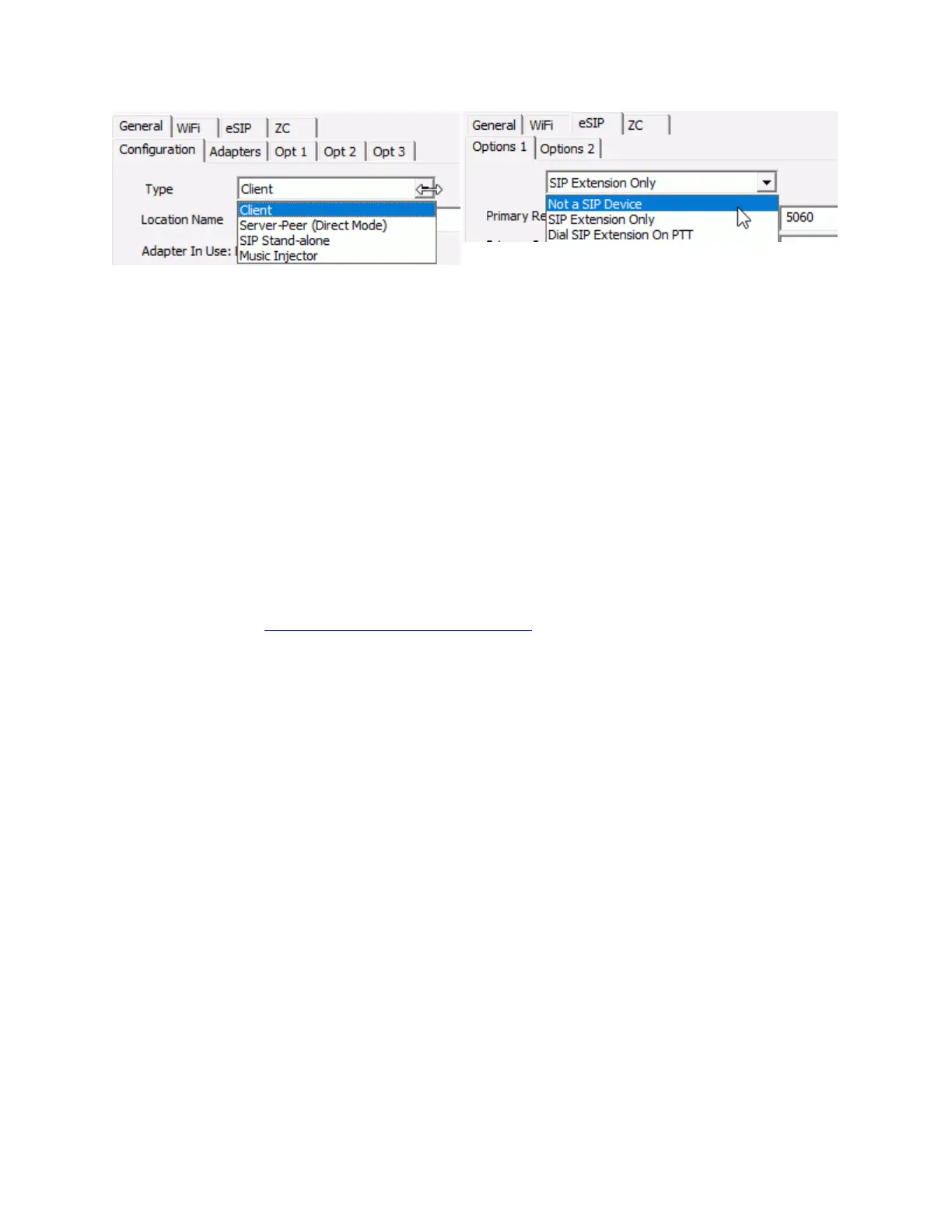

o On the General--> Configuration tab, select Client from the Type drop down box
o On the eSIP--> Options 1 tab, select Not a SIP Device from the drop down box
 SIP Extension – The IP Endpoint will register as an extension on a SIP based VOIP Phone system.
The IP7 can be configured as a 1-way Paging Speaker or as a 2-way audio extension that can
optionally dial an extension when its TALK button is pressed.
o On the General--> Configuration tab, select SIP Stand-alone from the Type drop down box
o On the eSIP--> Options 1 tab, select SIP Extension Only or Dial SIP Extension on PTT from
the drop down box
o If the Dial SIP Extension on PTT was selected, enter a number in the Out Dial Extension
field
o Refer to the eSIP Stand-alone Configuration Steps topic for additional details.
 TalkMaster FOCUS/SIP Extension – The IP Endpoint will connect to the TalkMaster FOCUS Server
and can be configured as an extension on a SIP based VOIP Phone system. This provides the ability
for a call initiated from an IP7 to appear as an incoming call on the TalkMaster FOCUS Operator
Console and if it is not answered, to “overflow” to a SIP Extension.
o On the General--> Configuration tab, select Client from the Type drop down box
o On the eSIP--> Options 1 tab, select SIP Extension Only or Dial SIP Extension on PTT from
the drop down box
♦ When SIP Extension Only is selected, engaging the IP Endpoint's TALK switch will create
a Call Queue Entry in TalkMaster. If the Out Dial on Queue Overflow option is checked
and a Queue Overflow occurs, the Call Queue Entry in TalkMaster will be removed and a
SIP call will be generated using the Out Dial Extension
♦ When Dial SIP Extension on PTT is selected, engaging the IP Endpoint's TALK switch will
make a SIP call
o If the Dial SIP Extension on PTT was selected, enter a number in the Out Dial Extension
field.
 Server-Peer - Two IP Endpoints can be configured as a standalone pair of Intercoms in Direct Mode
(no software required) . In this configuration, one is configured as Server and the other as a Client.
o On the General--> Configuration tab of the first IP Endpoint, select Server from the Type
drop down box
