14 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006
MULTIPLE PRINT HEADS
EVOLUTION II printing systems have the ability to reside on a network. The network
may contain from 1 to 32 print carriages connected via RJ50 cables. These
cables are available in varying lengths depending on the application.
Each mounting bracket can support up to 4 print carriages and would typically
interconnect with a 6” RJ50 data cable.
NOTE: Please address each unit individually as per page 2-17 prior to daisy
chaining the printers. Special care must be taken to connect the output of the
first print carriage to the input of the next print carriage.

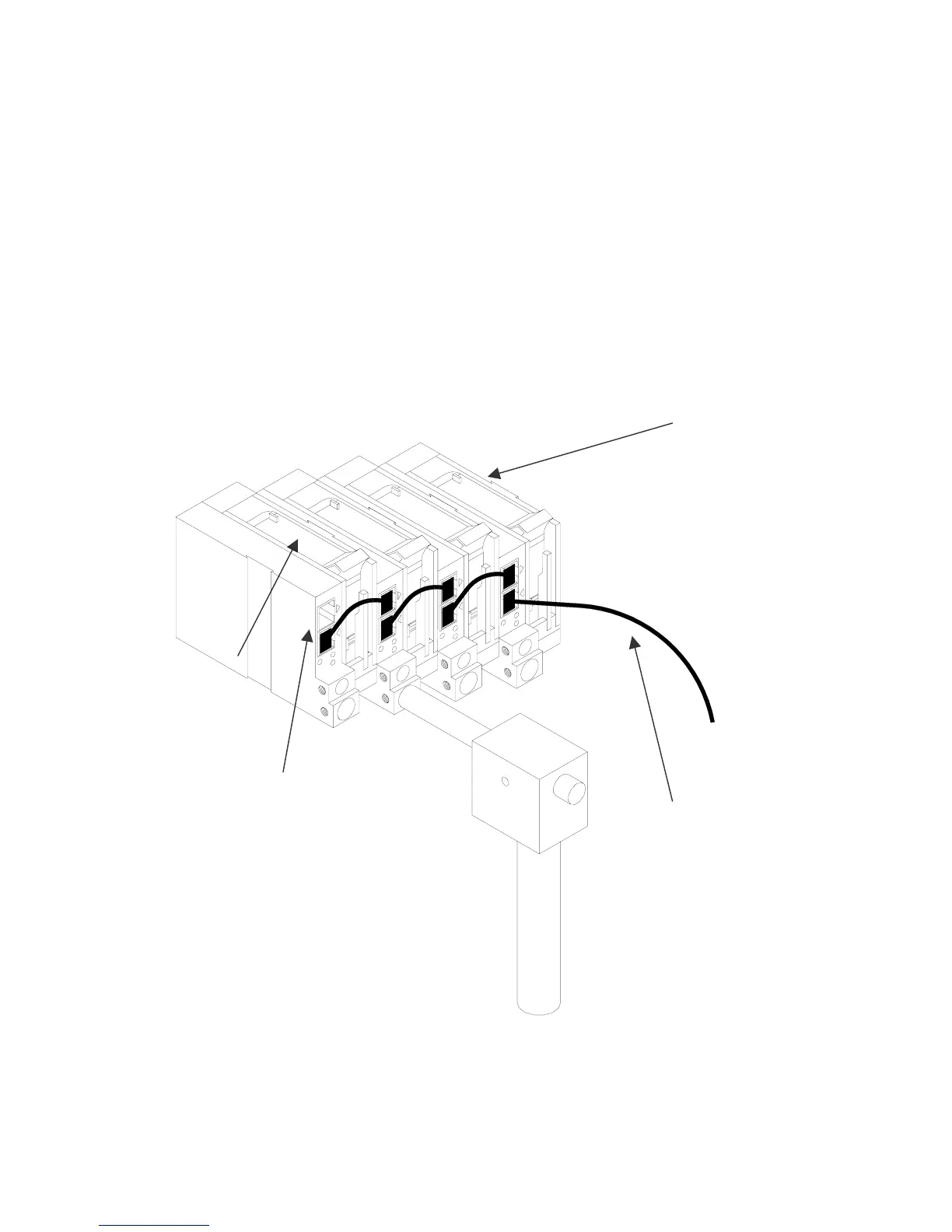

When connecting multiple print carriages place no more than 2 stations on a side
of the mounting bracket as shown.
PRINT CARRIAGE
ADDRESS 1
TO
CONTROLLER
OR COMPUTER
DATA LINK
PRINT CARRIAGE
ADDRESS 4
PRINT CARRIAGE
LOCKING SET
SCREW
