Digital Design EVOLUTION II - Jumper Location

2 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

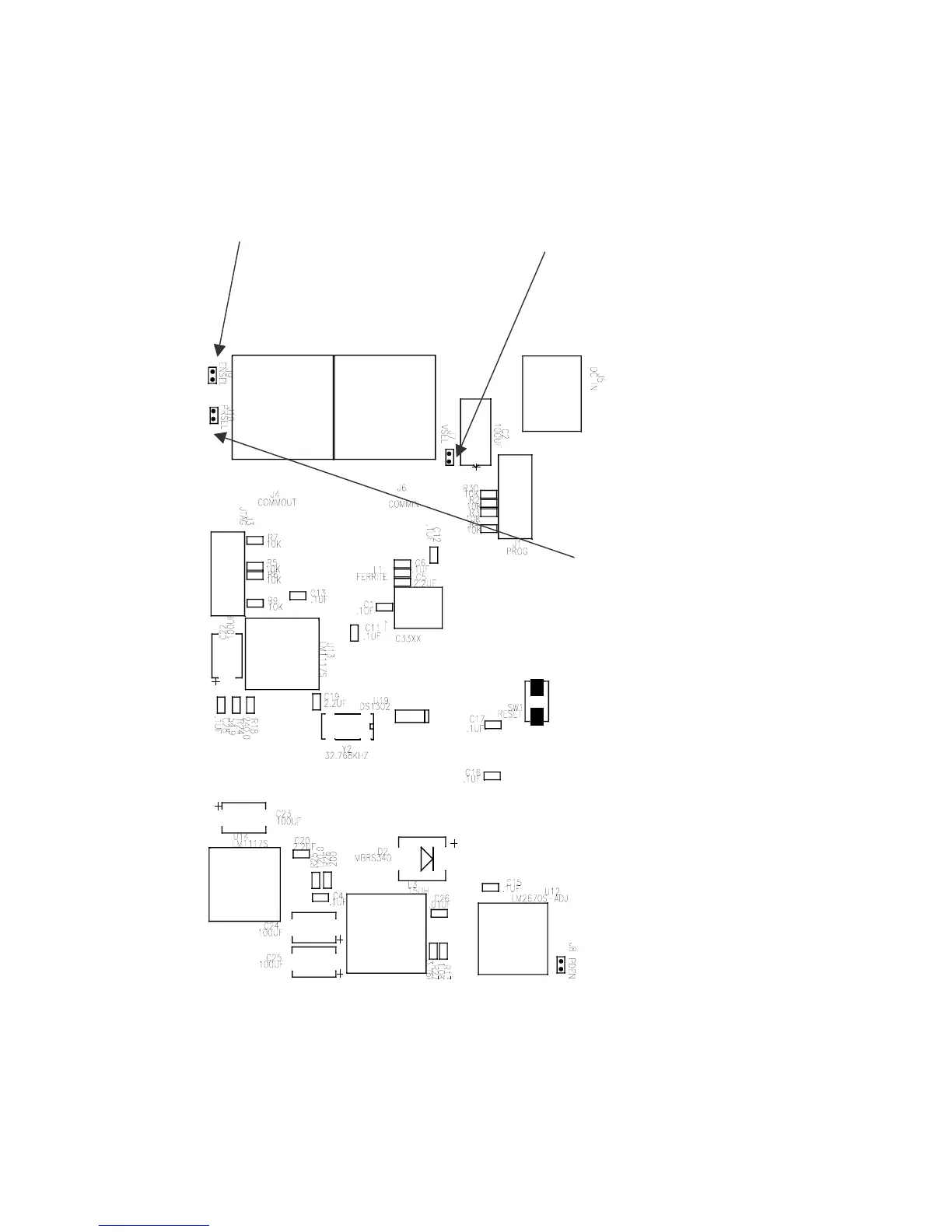

JUMPER LOCATION
VOLTAGE SELECT
VSEL J7
ON= +12 OUTPUT
OFF= FLOAT OUTPUT
EXTERNAL ENCODER
ENSEL J9
ON= PASS THRU
OFF= FLOAT OUTPUT
EXTERNAL PRODUCT
DETECT
PRSEL J10
ON=PASS THRU
OFF=FLOAT OUTPUT
