5 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006
PRINT CARRIAGE MAINTENANCE
It is necessary to maintain the print head carriage free from accumulated dust
and debris. Periodically the print head carriage should be inspected and cleaned.
This is totally dependent on the operating environment. In extremely dusty
environments, this maintenance procedure may be required occasionally but on
average every week should be sufficient.
Remove the print cartridge and carefully inspect the print carriage C21001 for
dust and debris.
Re-insert the print cartridge and place the unit into the PRINTING mode by
pressing .

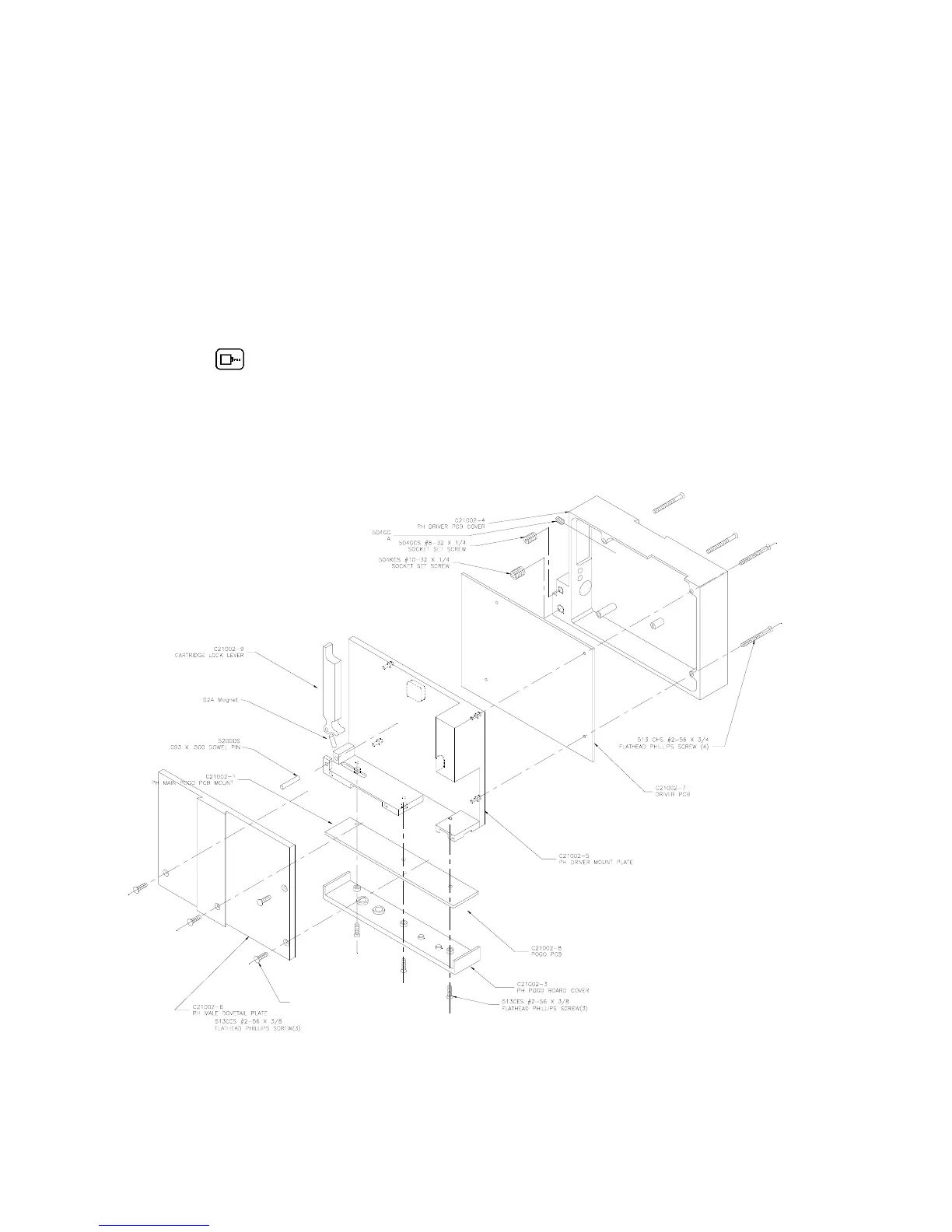

EXPLODED VIEW OF THE C21002 PRINT CARRIAGE
