Digital Projection E-Vision 6800 3D Series
Installation and Quick-Start Guide
CHANGING THE LENS, LAMPS AND COLOR WHEEL
Rev A January 2015
Changing the lamp

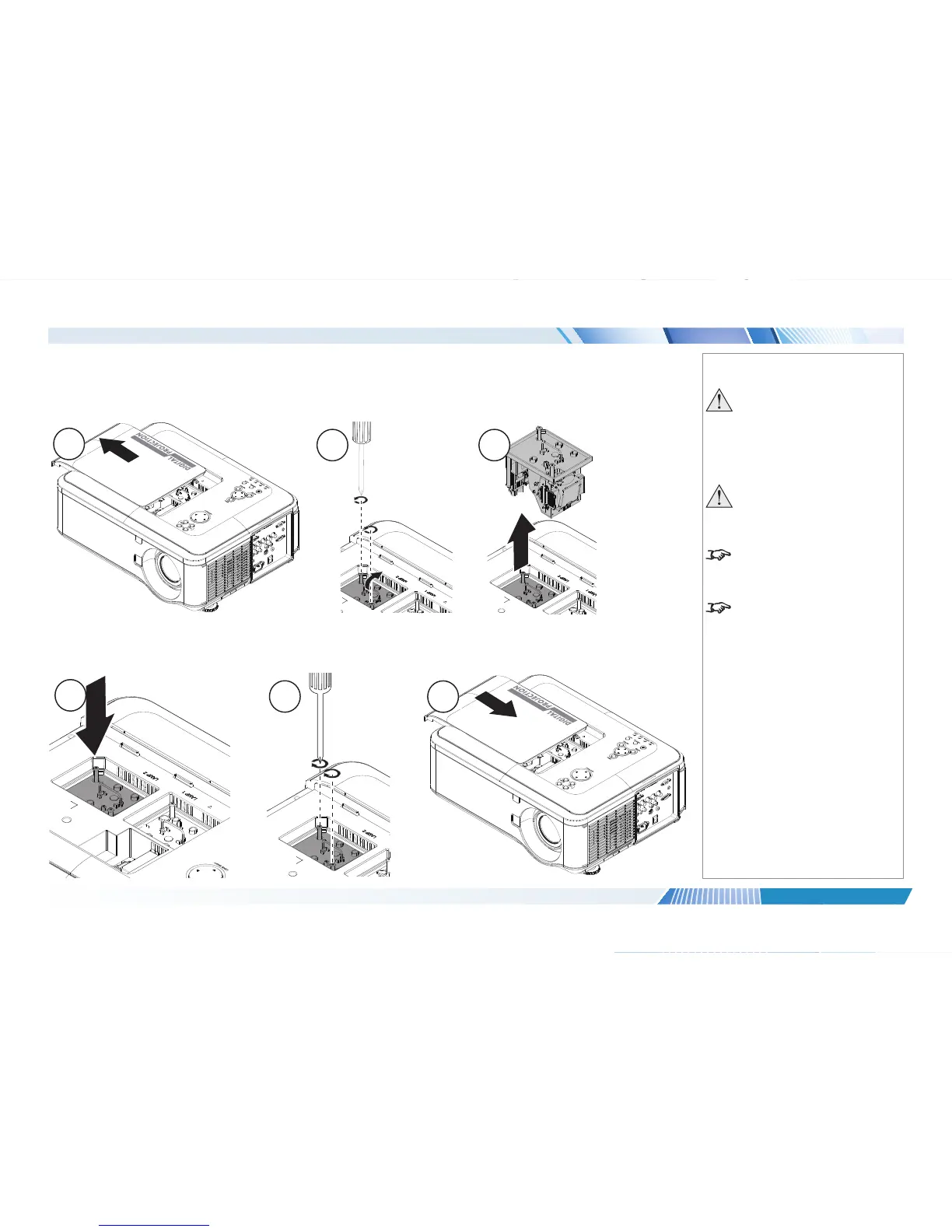

1. Slide open the lamp compartment cover as shown in the picture.
2. Unscrew the two captive screws securing the lamp module.
3. Pull rmly upwards on the handle to remove the lamp module.
4. Insert a new lamp module.
5. Fasten the screws.
6. Replace the lamp compartment cover.
1
2 3
Notes
Always allow the lamp to cool for
5 minutes before:
- disconnecting the power
- moving the projector
The lamp must be changed only
by suitably qualied personnel.
The projector will shut down if the
cover is opened whilst in operation.
 Theltersshouldbechangedatthe
same time as the lamp is changed.
4
5
6
