Dinstar FXS Voice Gateway User Manual
4

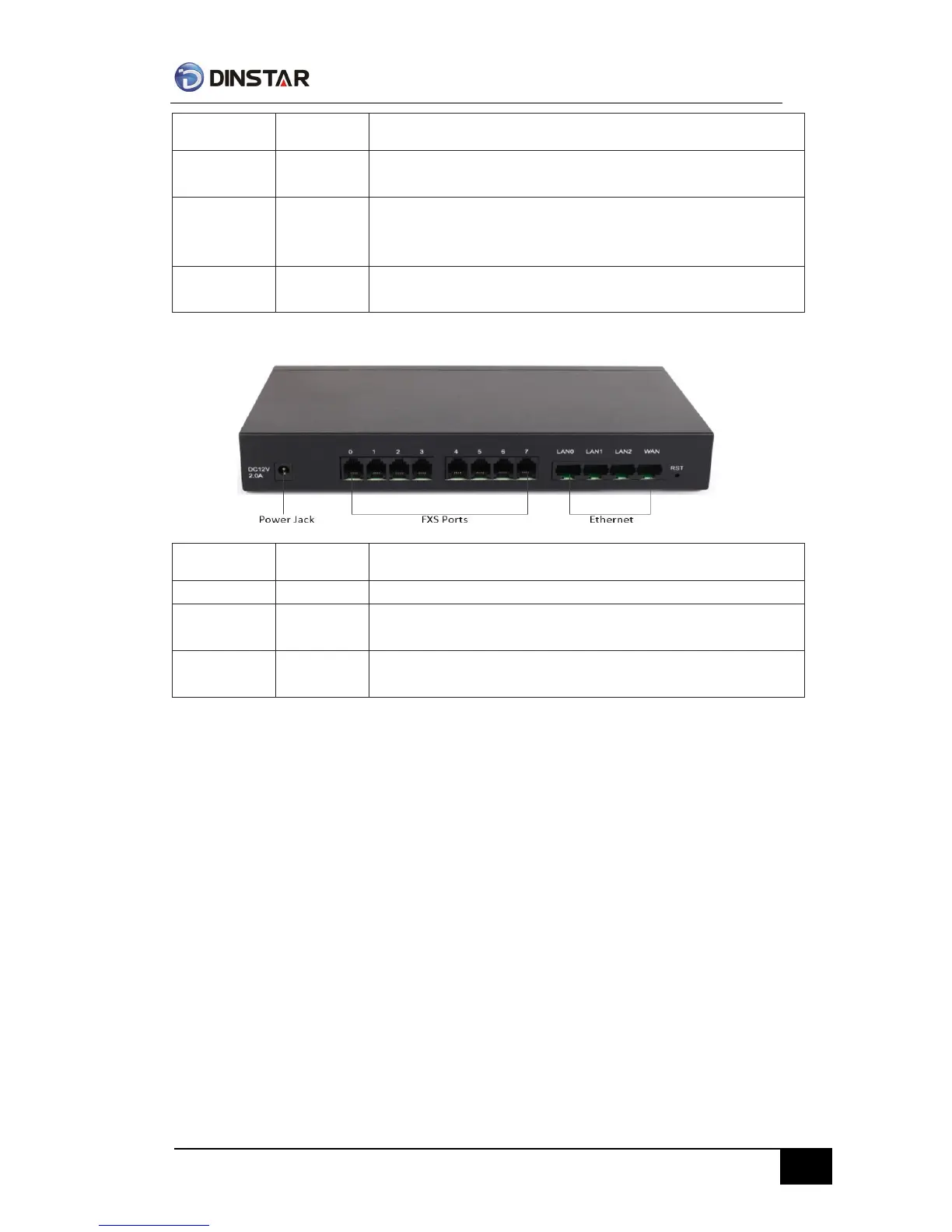

Port Name
Connector
Description
Ethernet
RJ45
to connect to the IP network over a DSL modem or Router or a
LAN switch
FXS
RJ45
FXS ports with RJ45 connector that can be separated into 4 RJ11
connectors, to connect standard analog phone or FAX machine
or a PBX
Console
RJ45
Console port with RS232 standard to connect DB9 to RJ45
cable
Port Name
Connector
Description
DC12V 2.0A
DC Jack
to connect 12VDC,2A Power adapter
0-7
RJ11
FXS ports to connect standard analog phone or FAX machine or
a PBX
Ethernet
RJ45
LAN0~LAN2 to connect with local PC, WAN port to connect the
IP network over a DSL modem or Router or a LAN switch
