Dinstar FXS Voice Gateway User Manual
3
DAG2000-16S DAG2000-32S

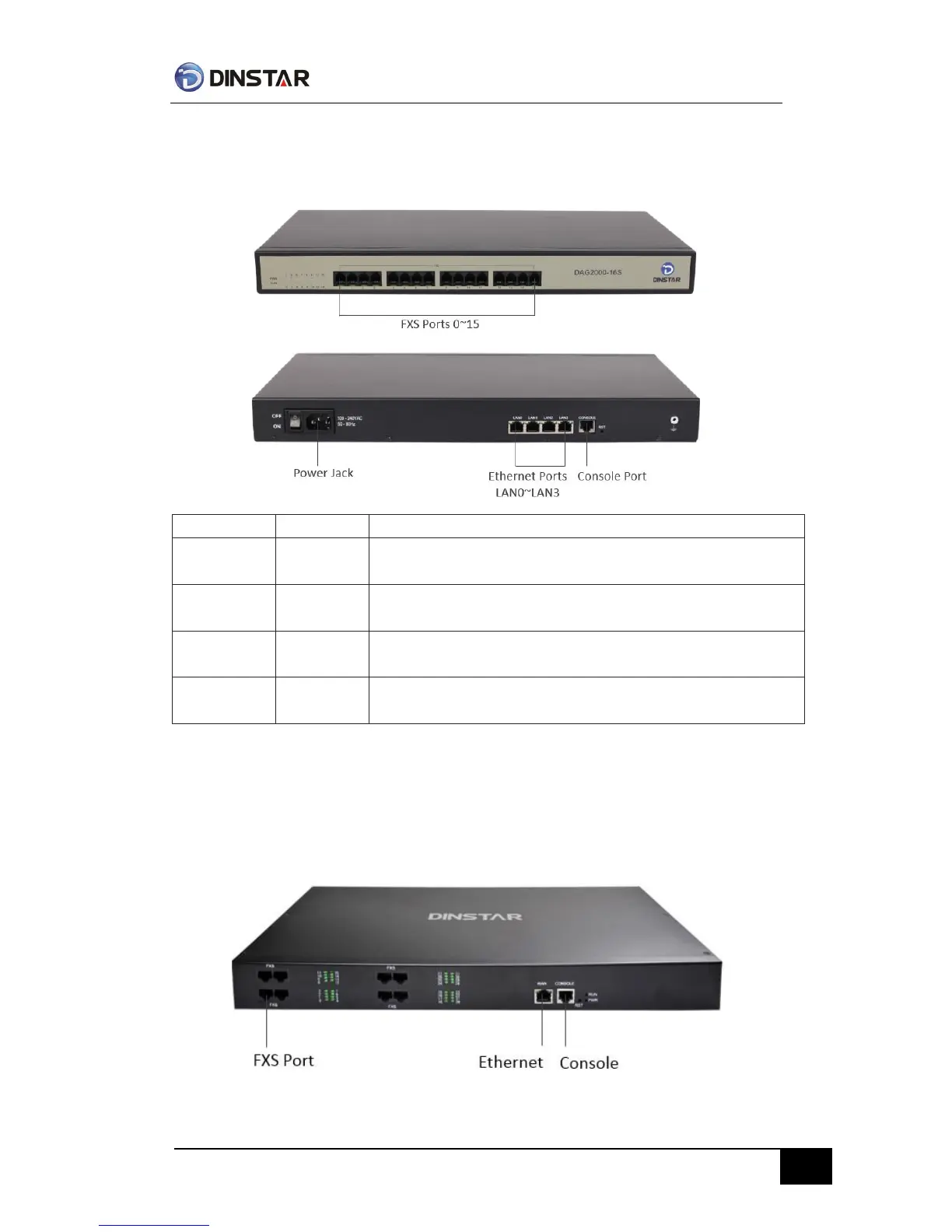

Ports and Connectors
Port Name
Connector
Description
100-240VAC
50-60Hz
AC Jack
To connect 110~240V 50-60Hz AC Power supply
Ethernet
RJ45
to connect to the IP network over a DSL modem or Router or a
LAN switch
0-15
RJ11
FXS ports to connect standard analog phone or FAX machine or
a PBX
Console
RJ45
Console port with RS232 standard to connect DB9 to RJ45
cable
