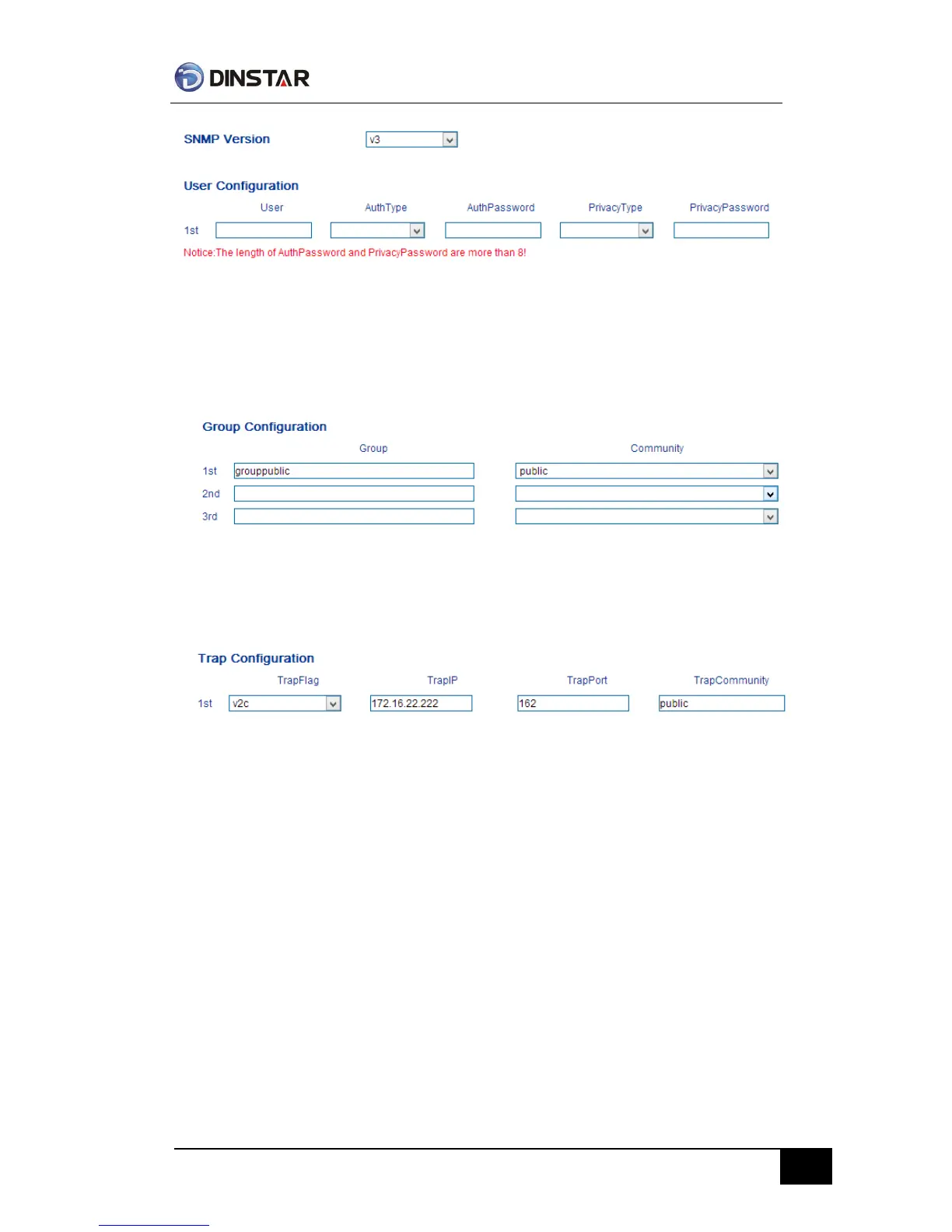

Group configuration
Group: community group name which consist of character string.
Community: let community join the community group which configured above
Trap configuration
Trap configuration enable to configure Trap server IP and port. This setting available for
SNMP v2c and v1.
Syslog
Syslog is a standard for network device data logging. It allows separation of the software that
generates messages from the system that stores them and the software that reports and
analyzes them. It also provides devices which would otherwise be unable to communicate a
means to notify administrators of problems or performance. There are 5 levels of syslog,
Including NONE, DEBUG, NOTICE, WARNING and ERROR.
The Signal Log is include following traces which defined in system by default
- SD, hardware debug
- SIP, SIP signaling trace
- STUN, STUN logs
- ECC, detail information of call control module
