5•Service
Doc. 031851-05 12/04 5-19
5.10 Installing a New DS5 Detection Stabilizer
1. Turn off the power on the ICS-90 rear panel and disconnect the power cord.
2. Open the ICS-90 front door.
3. Disconnect the
black ELUENT OUT line from the ELUENT OUT port on the
suppressor (see Figure 5-9
).
4. Disconnect the orange
CELL OUT line from the union that connects it to the
black
CELL OUT line.
5. Use an Allen wrench to remove the two screws on the top of the DS5.
6. Remove the DS5 by unplugging it from the component mounting panel.
7. Plug the new DS5 (P/N 057290) into its mounting location.
8. Replace the screws on the top of the DS5 and tighten.
9. Attach the orange
CELL OUT line from the DS5 to the union attached to the
black
CELL OUT line. Attach the ELUENT OUT line to the ELUENT OUT port on
the suppressor.

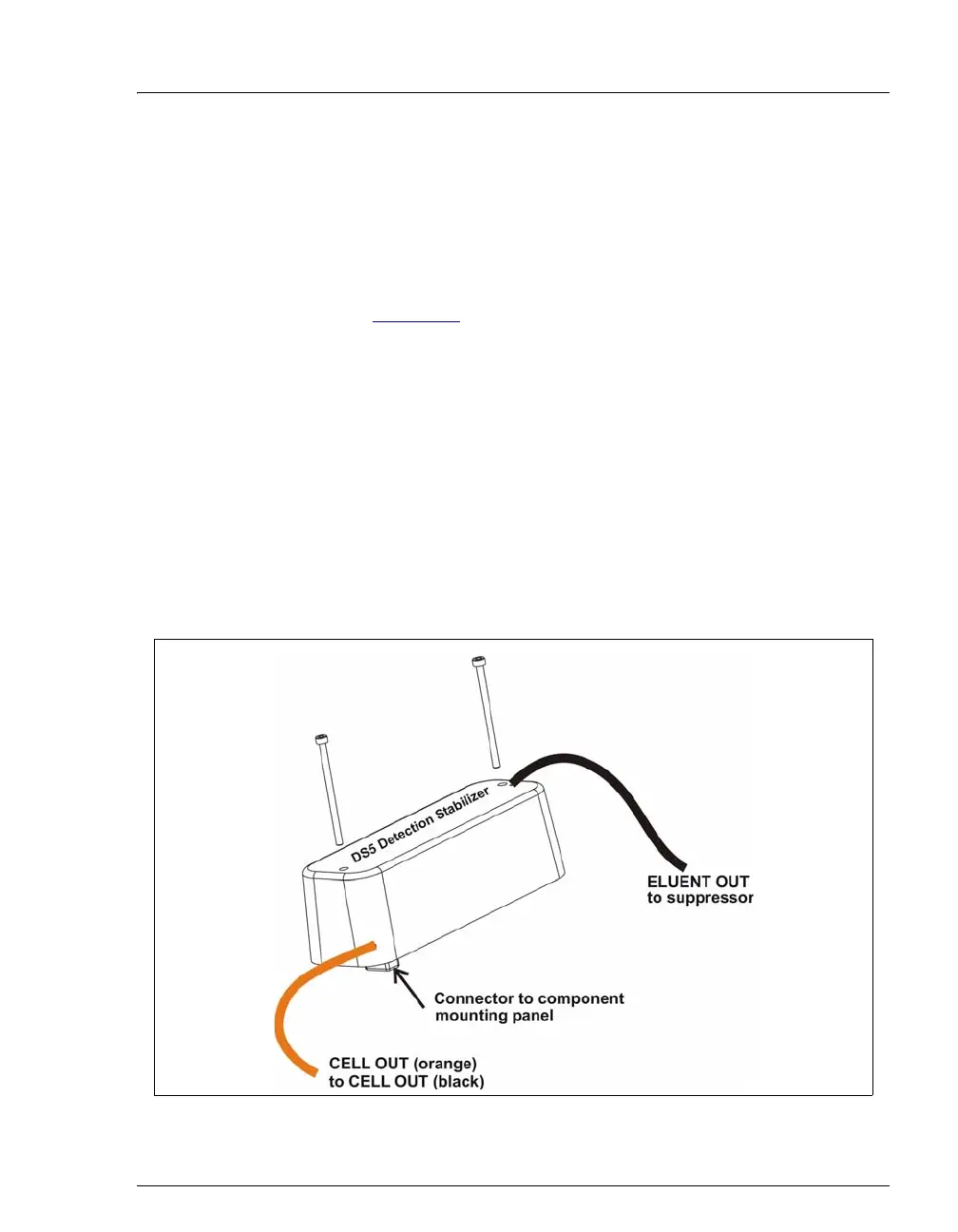

Figure 5-9. DS5 Detection Stabilizer Assembly
