2.1.3 Component Mounting Panel
Figure 2-3 shows the user-accessible components installed inside the
ICS-90. The component panel is accessed by opening the front panel
door. All of the components that the user can service are located on this
panel.
DS5 Detection Stabilizer
The DS5 Detection Stabilizer (P/N 057290) houses a flow-through
conductivity cell. Two 316 stainless steel electrodes are permanently
sealed into the PEEK cell body. The cell measures the electrical
conductance of analyte ions as they pass through the cell.

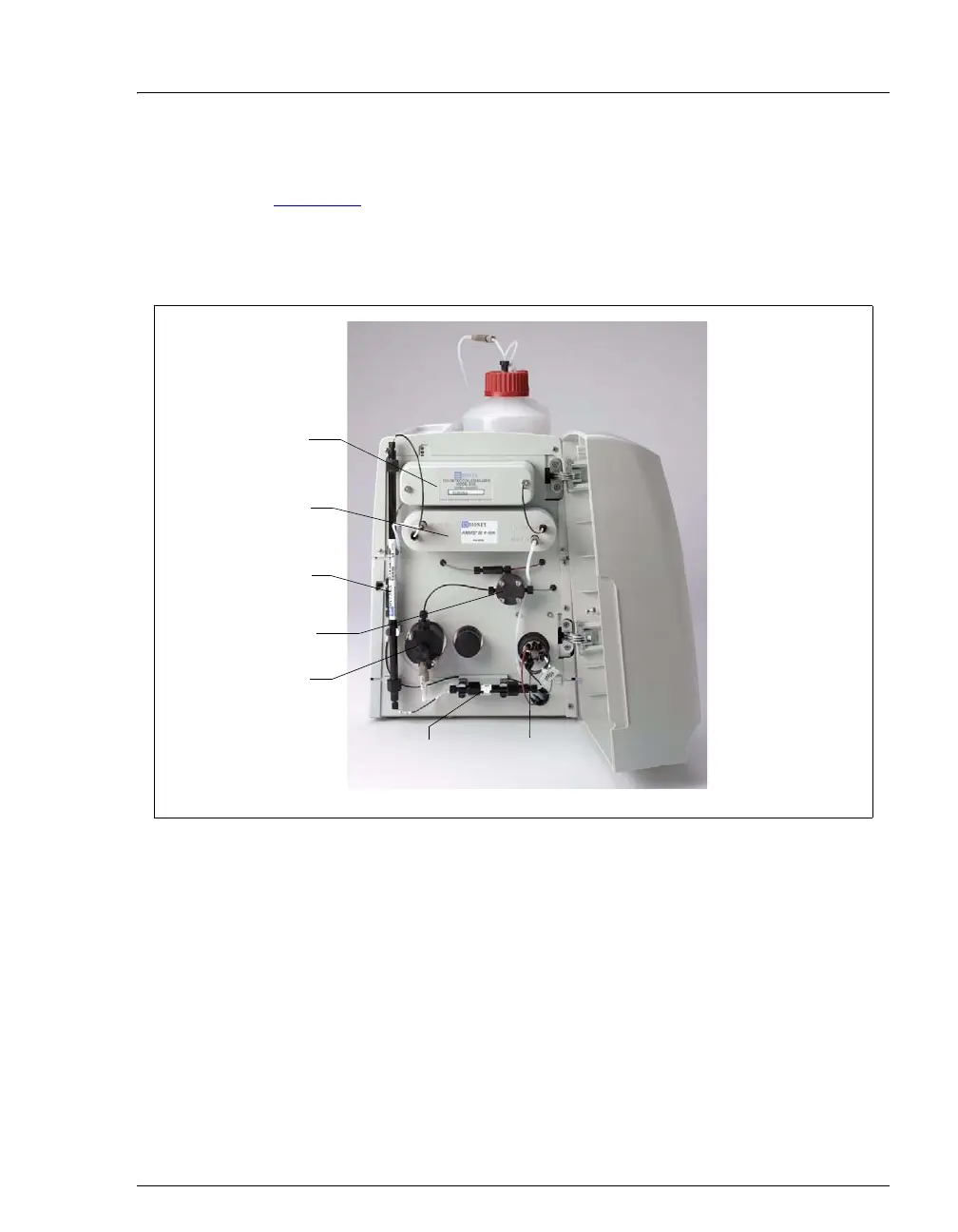

Figure 2-3. ICS-90 Component Mounting Panel
DS5 Detection
Stabilizer
MMS™ III
Suppressor
Separator
Column
Pump
Guard Column Injection
Valve
Pressure
Transducer
