2.2 Fluid Schematic

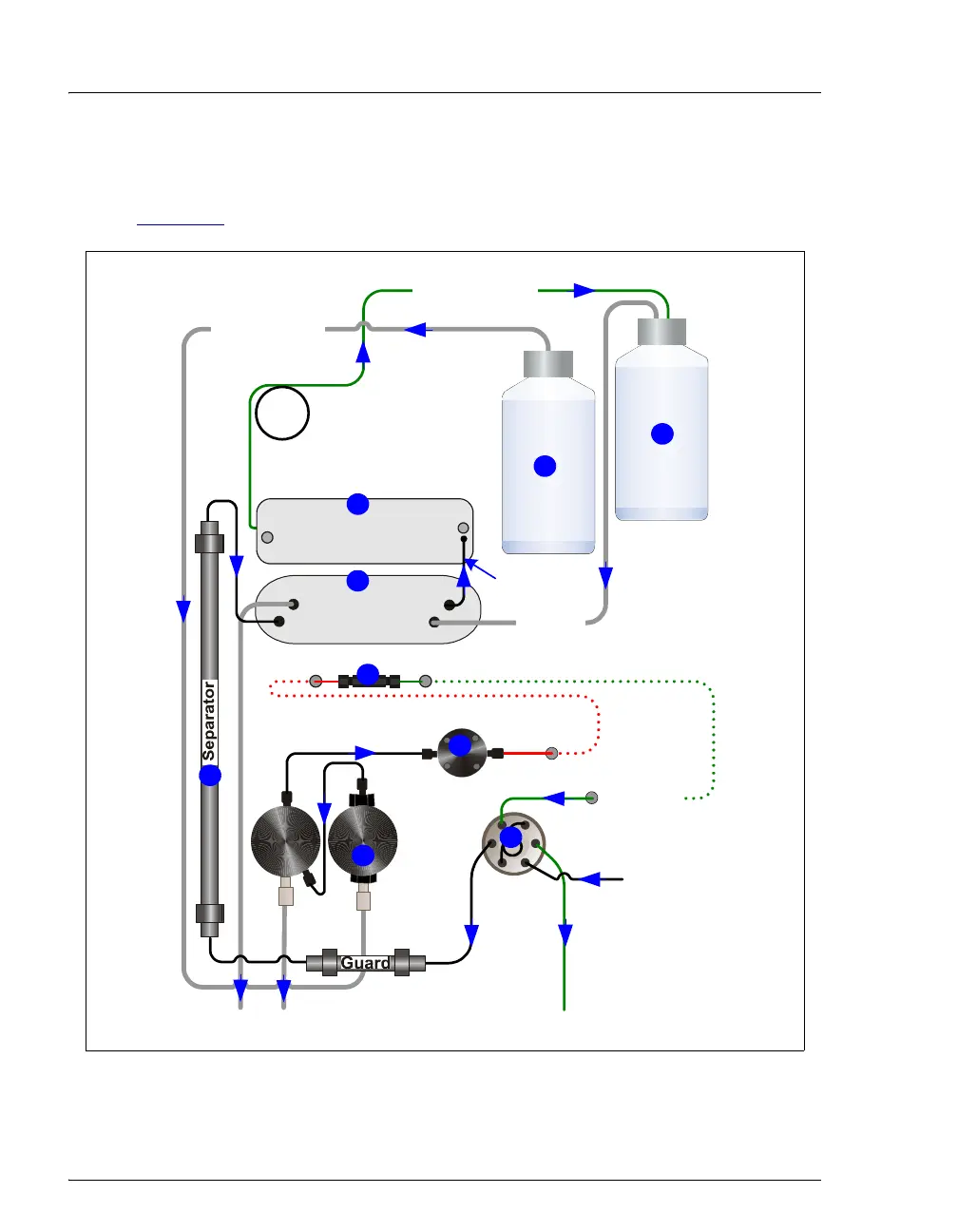

Figure 2-4 shows the flow path through the ICS-900.
Figure 2-4. ICS-900 Flow Schematic
Eluent In
Regen In
Regen Out Eluent Out
To Waste
L
LP
CW
S
To Waste
To MMS
Regen In
Pump
Heads
Primary
Secondary
Pulse Damper
Sample in
Eluent
Conductivity Cell
(in DS5 Detection Stabilizer)
Regenerant
Eluent in
from pulse
damper
MMS 300
To cell inlet
Backpressure Coil
(1 or 2, depending on
flow rate)
Injection
Valve
Pressure
Transducer
To pump inlet
From cell outlet
1
3
2
4
5
6
7
8
9
