2 • Description
Doc. 065215-02 9/09 9
performed. For example, an ICS-900 configured for anion analyses
uses carbonate eluent, while an ICS-900 configured for cation
analyses uses methanesulfonic acid (MSA) eluent.
• Regenerant renews the suppressor’s ability to suppress eluent
conductivity. An ICS-900 configured for anion analyses uses dilute
sulfuric acid regenerant. An ICS-900 configured for cation analyses
uses tetrabutylammonium hydroxide (TBAOH) regenerant. For more
information about suppressor regeneration, see Section 2.3.5
.
2.1.2 Component Mounting Panel

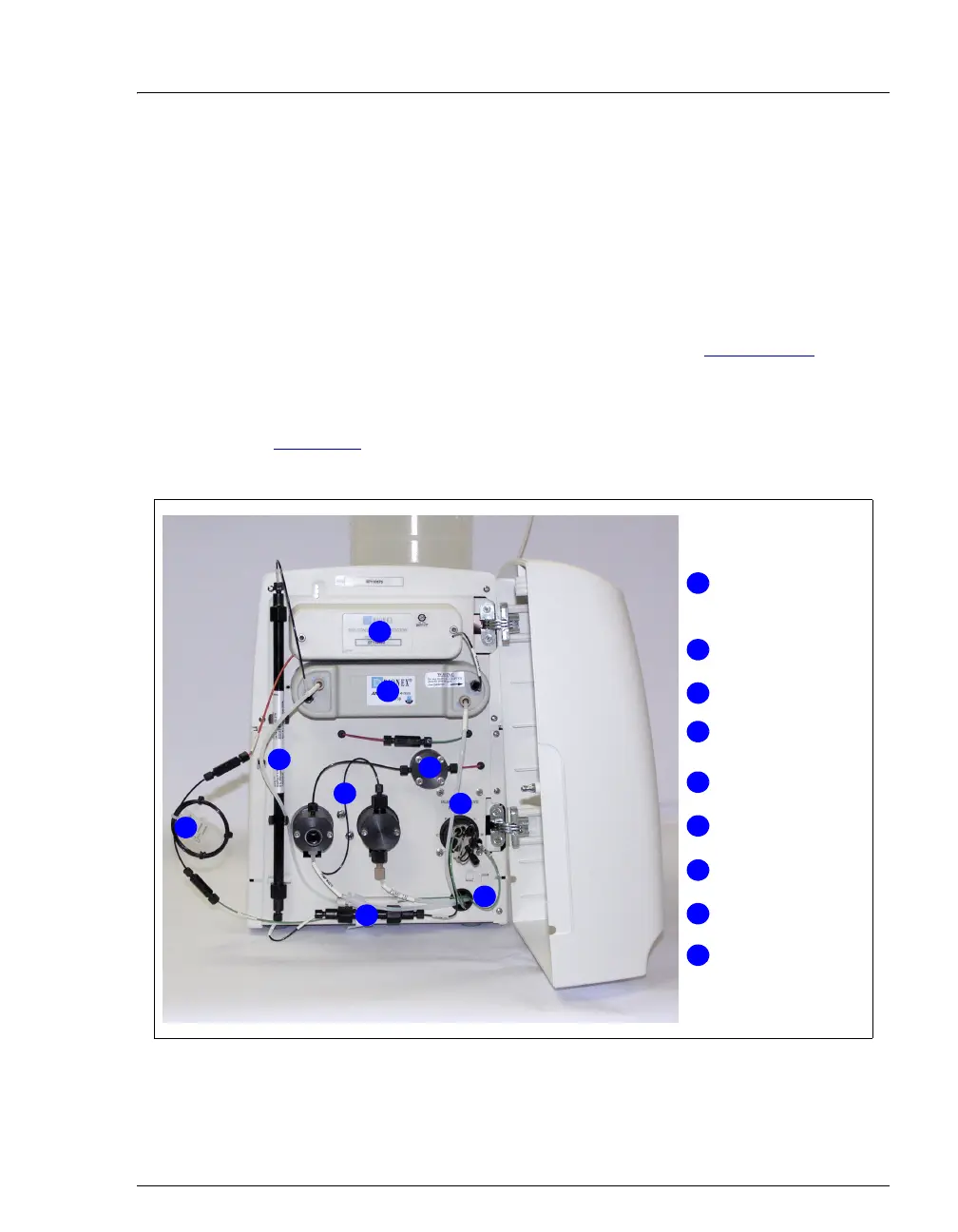

Figure 2-2 shows the components installed on the component panel
behind the ICS-900 front door.
Figure 2-2. ICS-900 Component Mounting Panel
MMS 300
Suppressor
Injection Valve
Pressure
Transducer
Pump Heads
1
2
3
4
5
6
7
8
Separator Column
Guard Column
Tubing Chase
Conductivity Cell
(Housed in DS5
Detection Stabilize
r
1
2
5
4
6
7
3
8
9
Backpressure
Tubing
9
