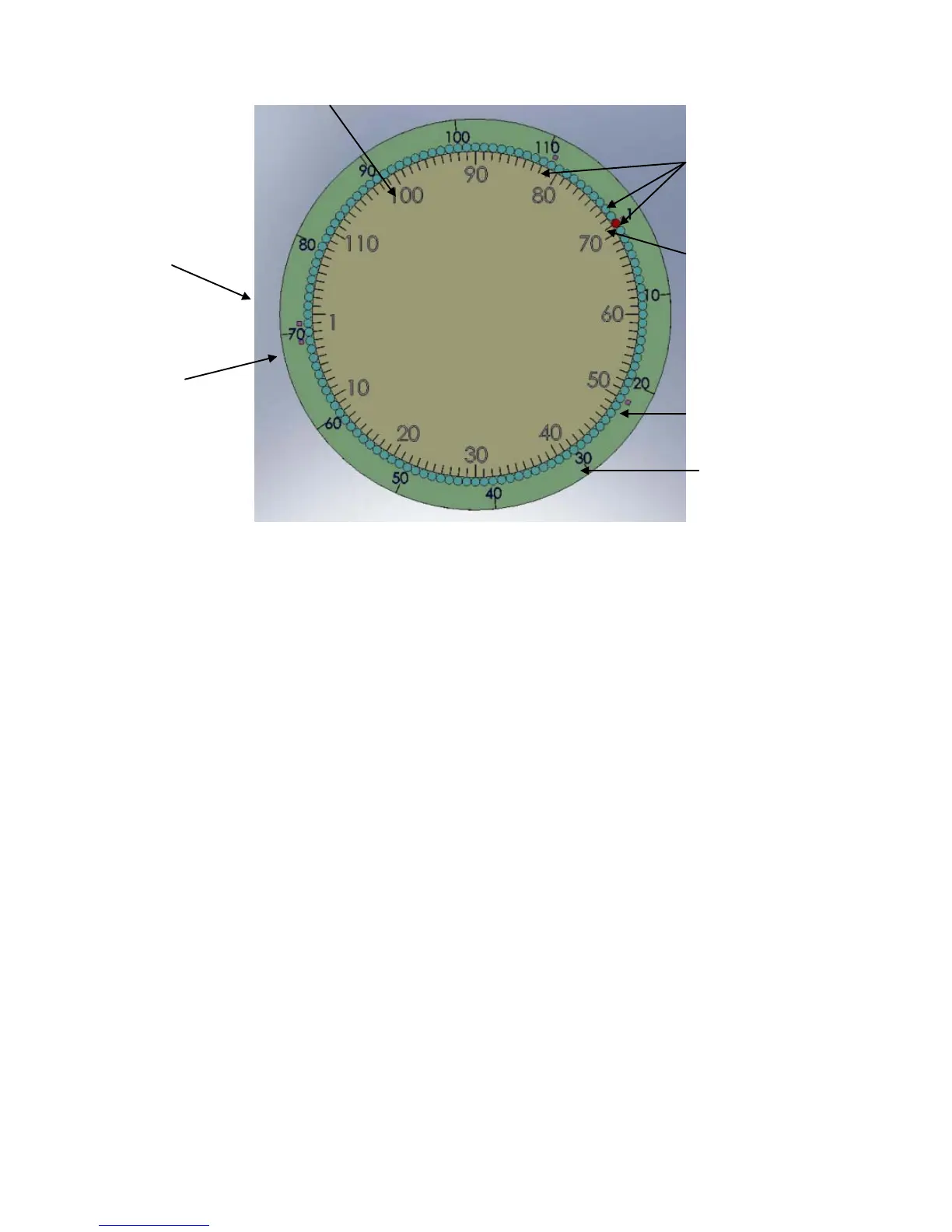

figure 3-2 Position of reaction disk and probe
Outer circle figure: No. of reaction cuvette；inner circle figure: No. of mechanism position.
Reset point is in 71 position of reaction disk.
Reagent1、2 and sample probe is in NO.1 position, stirring is in No.3 position.
Reaction cuvette rinsing unit: NO.71、73、81 position
Reaction cuvette rinsing sequence:
1 → 3 → 5 → 7 → 9 → …… →117 → 119 （18 mins，60 times）
2 → 4 → 6 → 8 → 10 → …… → 118 → 120 （18 mins，60 times）
加试剂与加
样位置
120 个反应杯位置号
搅拌位置
参考位置编号
光电检测位
反应盘复位点
反应杯清洗机构
