five-valve plate assembly, used for cuvette rinsing, stirring rinsing and external wall rinsing of the probe;
second pass through the degassing device for the internal wall rinsing of the probe; third pass with the
detergent used for the first probe rinsing of rinsing unit; fourth pass for the incubation bath; fifth pass
access to pressure sensor for detecting the tank pressure; sixth pass for regulating the water tank
pressure.
5, When abnormality occurs to the float, possibly water tank remains the status of inputting water. When
the water tank is full of water, SV13 not shut down, tank outflow water spills out from the overflow pipe
into the waste liquid pipe.
5.2.2 Constant temperature system liquid line
This system offers precise constant 37 degrees water to the incubation bath of reaction disk, and cools
the high temperature light source simultaneously. This system consists of magnetic pump, incubation
bath water inlet valve, incubation bath water outlet valve, liquid level detector and temperature
controller consists of the heater, temperature detector and the shell.

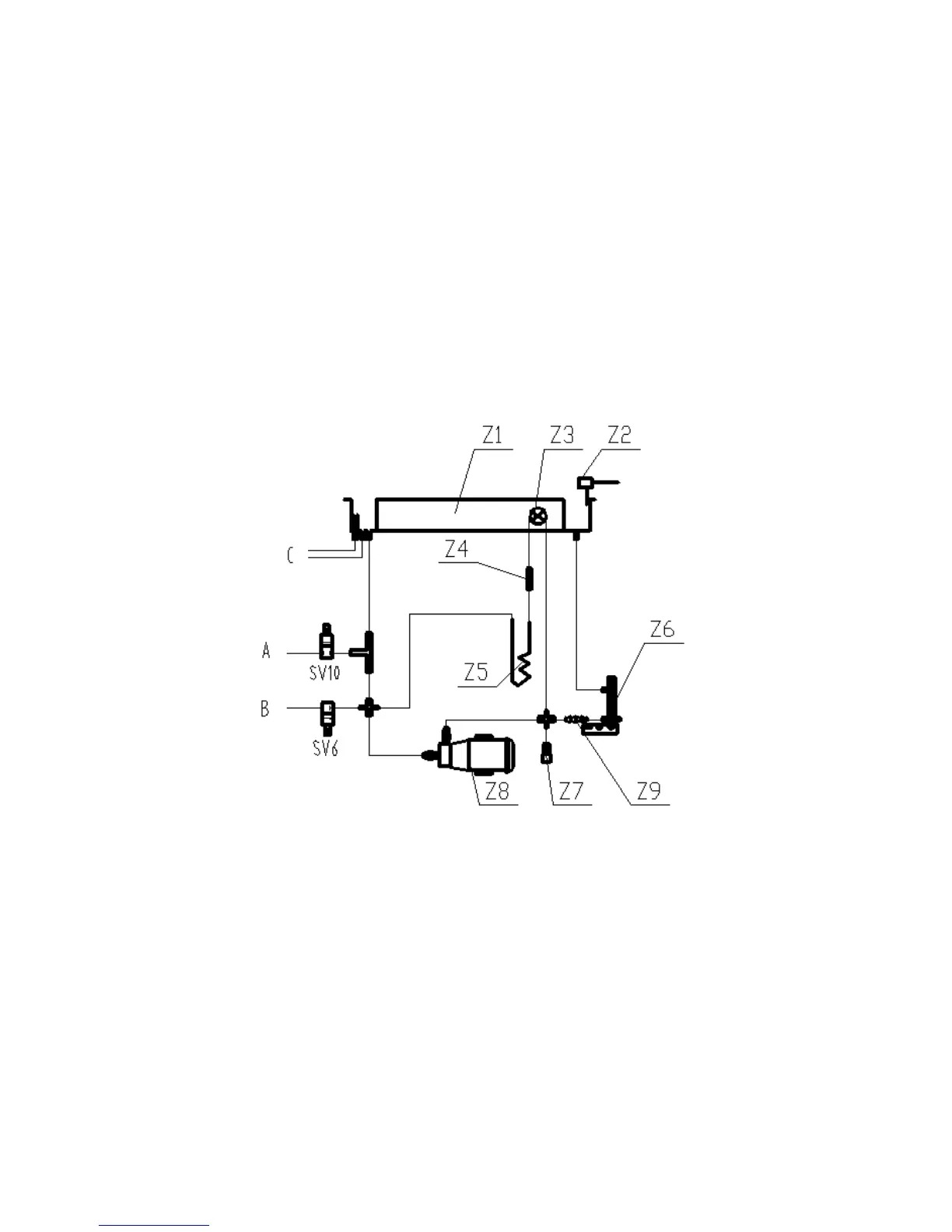

Explanation：Z1——incubation bath； Z2——liquid level detector； Z3——halogen lamp； Z4
——flow controller； Z5——lamp cooler；Z6——constant temperature unit； Z7——block； Z8
——magnetic pump；Z9——flow controller； A——incubation bath water outlet； B——incubation
bath water inlet；C——overflow outlet
1, Open the inlet valve SV6 and turn off outlet valve SV10 to infuse water into incubation bath,
simultaneously with reagent&sample probe adding phosphor-free anti-bacterial rinsing liquid to the
incubation bath, liquid level detector determining whether to stop water.
2, Turn off outlet valve and inlet valve, and start the water circulation magnetic pump and temperature
