Dirui CS-T240 - Solid State Relay Board

48
6.4.4 Solid state relay board

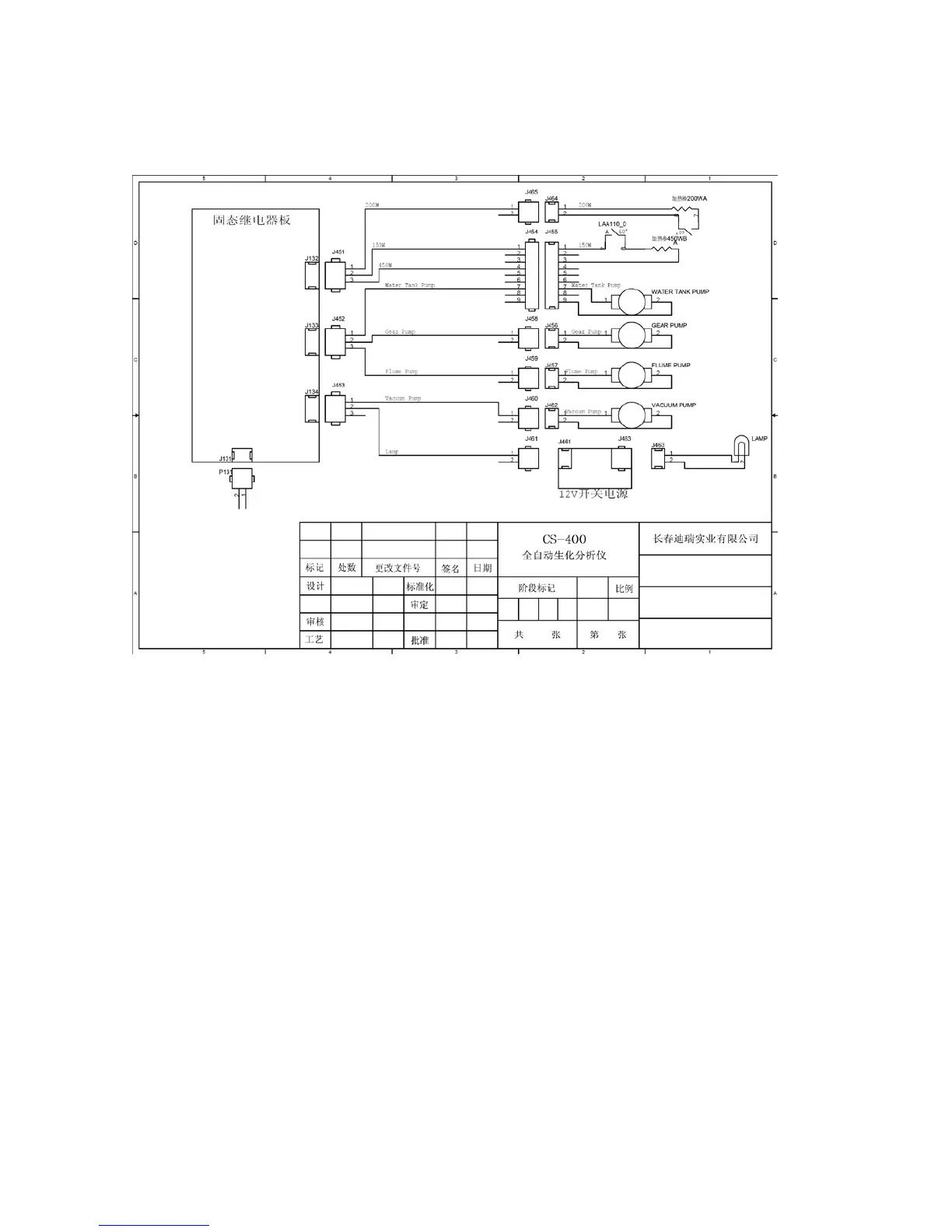

1. Wiring
2. Function
Its main function is to control the solid state relay through main board to turn on and turn off the pump ，
motor, heater and lamp.
As shown in figure ：
Heater 200WA：water heater of incubation bath
WATER TANK PUMP：water circulation pump of water tank
GEAR PUMP：gear pump
FLUME PUMP：water circulation pump of incubation bath
LAMP：Halogen lamp
