Distech Controls ECB-VAVS User Manual

38 ECB-VAVS Preloaded Applications
Setting Flow Setpoints
From the
Flow Setpoints
subsection, the flow setpoints can be set.

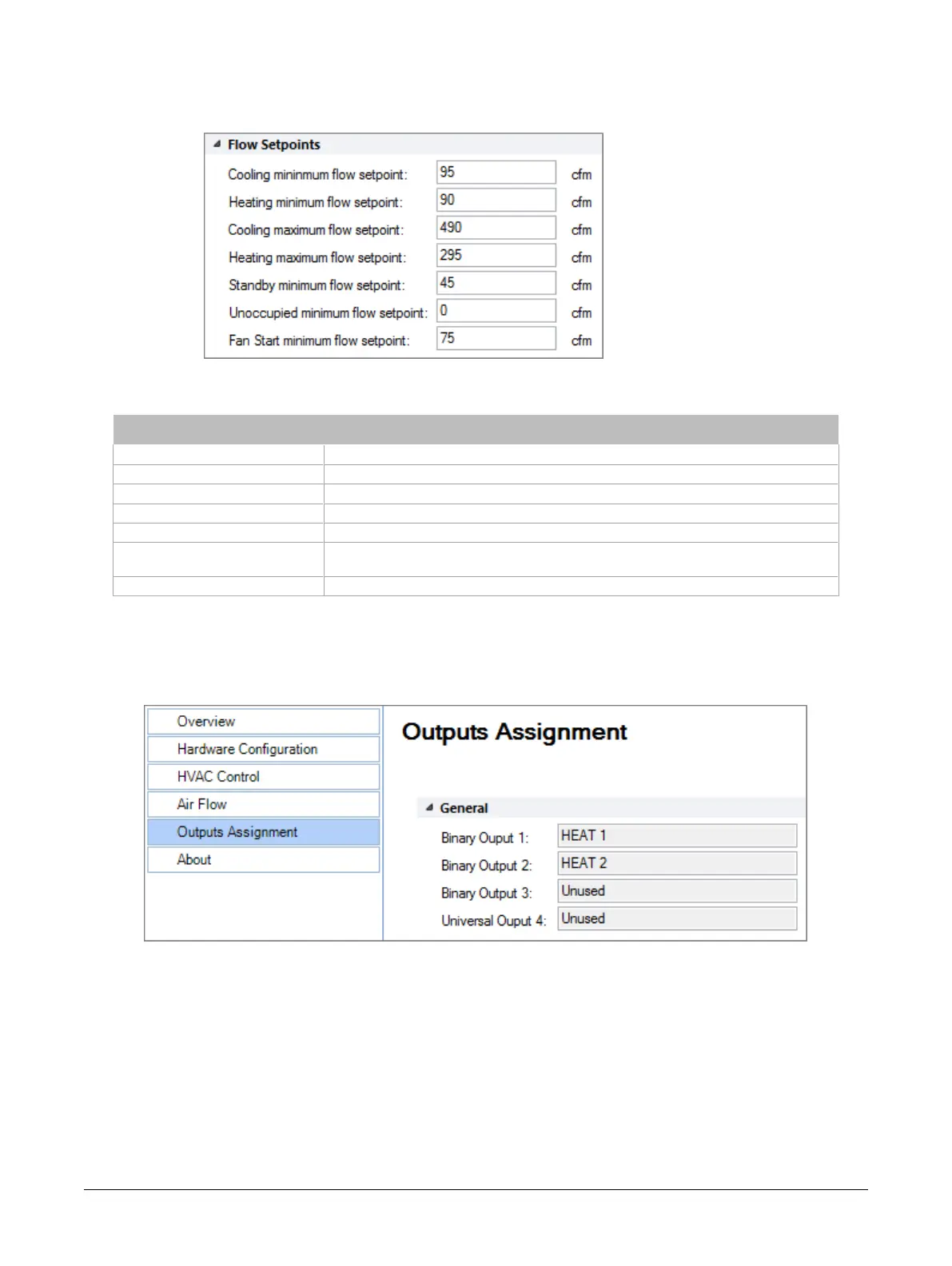

Figure25: Flow Setpoints Subsection
The following table describes the airflow setpoint parameters that can be configured.
Parameter Description
Cooling Minumum Flow Setpoint Minimum cooling flow setpoint
Heating Minumum Flow Setpoint Minimum flow setpoint when duct heater is active
Cooling Maximum Flow Setpoint Maximum cooling flow setpoint
Heating Maximum Flow Setpoint Maximum flow setpoint during heating mode
Standby Minimum Flow Setpoint Minimum flow setpoint during standby mode
Unoccupied Minimum Flow
Setpoint
Minimum flow setpoint during unoccupied mode
Fan Start Minimum Flow Setpoint
1
Parallel fan flow setpoint
1. Applicable to a parallel fan powered VAV
Output Assignment
The Output Assignment tab indicates which physical outputs are assigned to the configured outputs
based on the Outputs Configuration in the Hardware Configuration tab. This facilitates output wiring.
Figure26: Outputs Assignment Subsection
Using the dc gfxApplications
