54 ECB-VAVS Preloaded Applications
Setting up Outputs
A controller’s outputs can be configured through the Output Configuration submenu of the Advanced
menu. The table below shows how many universal outputs and digital outputs the controller has.
Model Universal Outputs Digital Outputs
ECB-VAVS 1 3
The following procedure explains how to configure the outputs one by one. For instructions on how to
configure them all at once using configuration codes, see
Procedure for Submitting New Configuration
Codes using an Allure EC-Smart-Vue
.
How to enter the Output Configuration submenu and configure the
outputs

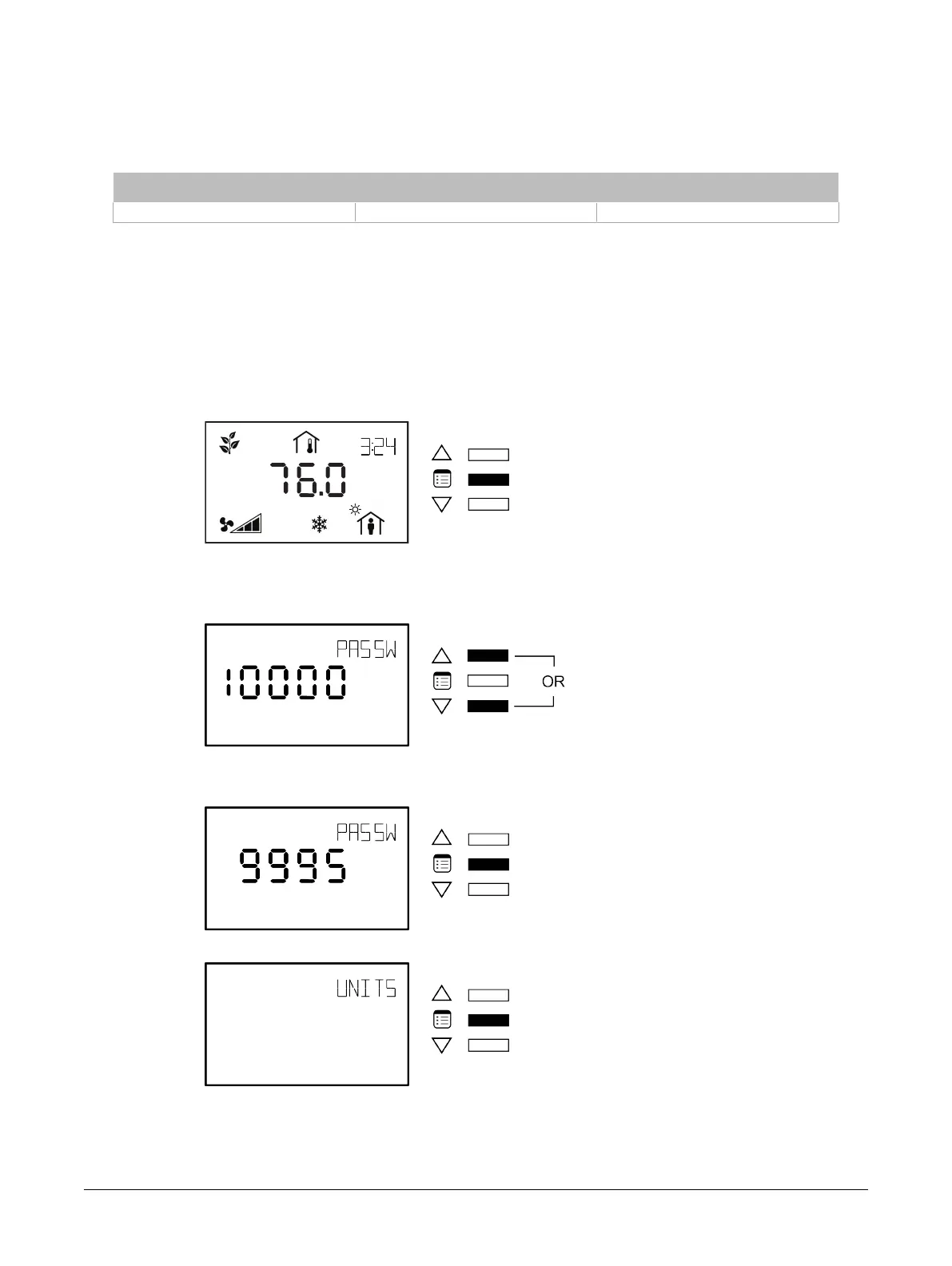

To enter the advanced menus:
1. Hold the Menu button for five seconds:
The password field appears.
2. Use the arrow keys to increase or decrease the displayed number until it matches the configured
password.
By default, the password is 9995.
3. Press the Menu button to submit the password.
Upon submitting the correct password, the advanced menu is displayed.
press several times
Screen timeout: 15 s
4. Press the Menu button several times until OUT CFG appears on the display.
5. Press either of the arrow keys to enter the Output Configuration submenu.
Allure EC-Smart-Vue Screen-by-Screen Guide
