Distech Controls ECB-VAVS User Manual

53ECB-VAVS Preloaded Applications

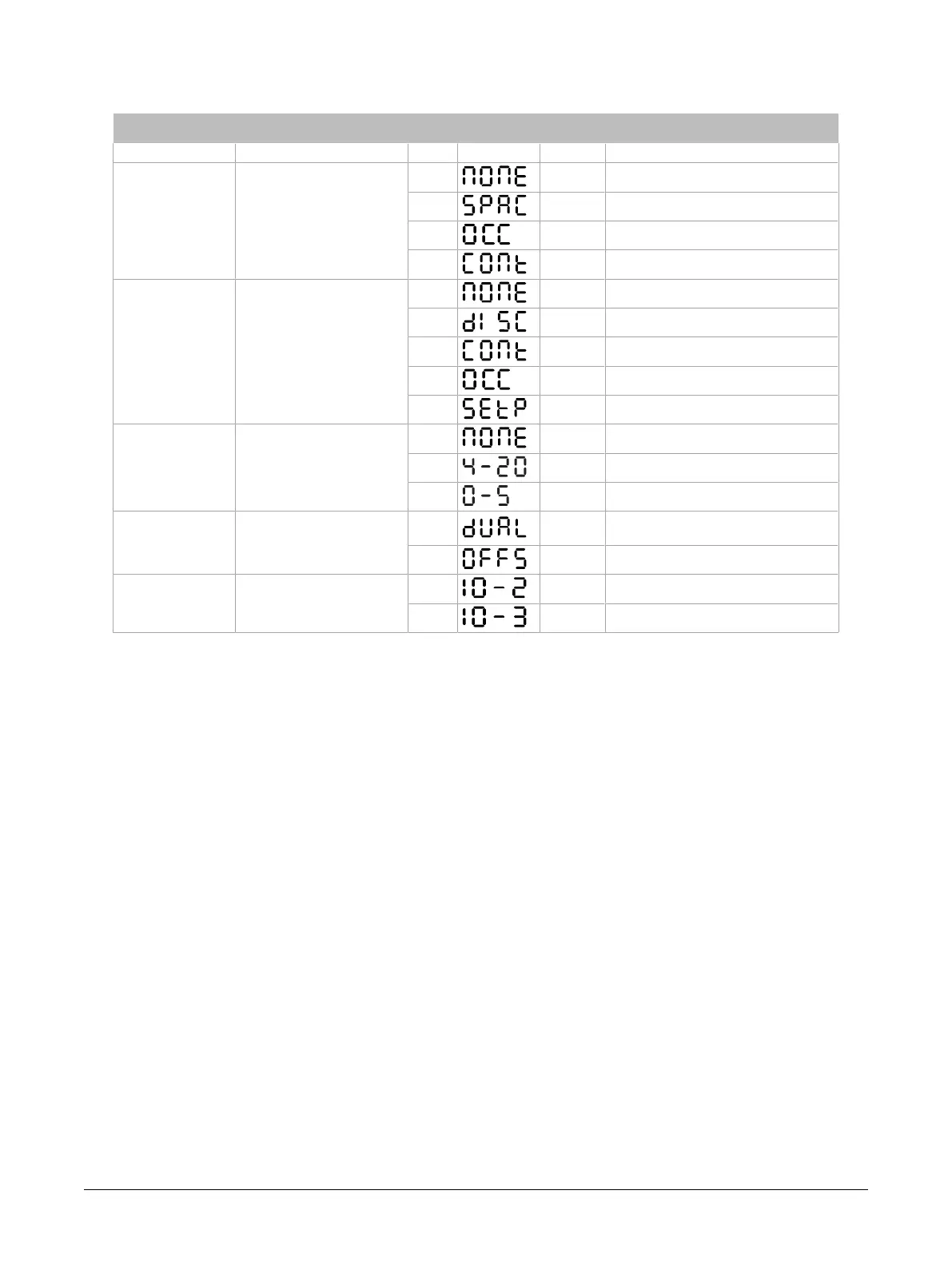

Input Configuration for the VAV
Input Input Types Descriptions
CODE VAV Input Config Code VAV Input Configuration Code Entry
UI1 Universal Input 1
1 NONE Not Configured
2 SPAC Room Temperature Sensor
3 OCC Occupancy Detection
4 CONT Window Contact
UI2 Universal Input 2
1 NONE Not Configured
2 DISC Discharge Air Temperature Sensor
3 CONT Window Contact
4 OCC Occupancy Detection
5 SETP Room Temperature Setpoint Offset
UI3 CO2
Universal Input 3 CO
2
Sensor
1 NONE Not Configured
2 4-20 4-20mA CO
2
Sensor (0-2000 ppm)
3 0-5 0-5V CO
2
Sensor (0-2000 ppm)
COMSENS SP
EC-Smart-Vue User Setpoint
Control
1 DUAL
Cooling and Heating Setpoint via EC-
Smart-Vue
2 OFFS Room Temperature Setpoint Offset
SENSORS TYPE
Discharge and Space Temp
Sensors Type
1 10-2 Sensors are 10K Type II
2 10-3 Sensors are 10K Type III
