61ECB-VAVS Preloaded Applications

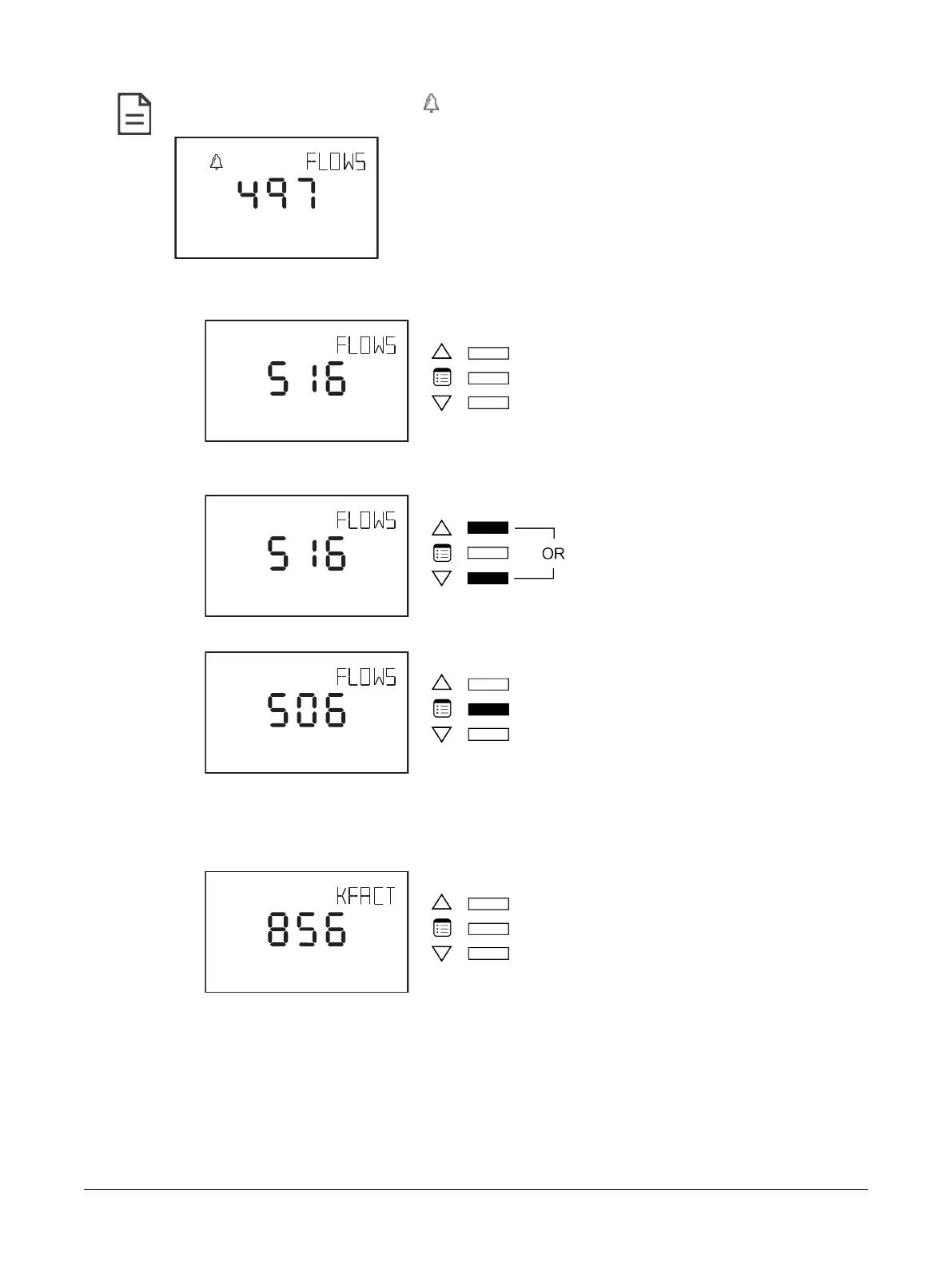

When the flow setpoint is modified, the icon appears, indicating that this parameter has been overridden. For
information on removing overrides, see How to release overrides .
cfm
The Flow parameter appears. This parameter represents the airflow as measured by the controller.
5. Monitor the Flow parameter until it stabilizes.
cfm
Screen timeout: 5 min
6. Using a flow hood, measure the actual airflow. Use the arrow keys to enter this measurement into
the Flow parameter.
cfm
Screen timeout: 5 min
7. Press the Menu button to submit the actual airflow.
cfm
Screen timeout: 5 min
The Damper parameter appears.
Note that at this point, the K-Factor gets adjusted based on the airflow value just entered.
8. Press the Menu button several times until the K-Factor parameter reappears. This value can be in-
cluded in the balancing report.
cfm
Screen timeout: 5 min
The VAV controller is now balanced.
Allure EC-Smart-Vue Screen-by-Screen Guide
