Chapter 2: Installation
Operation Manual: Evolution Series

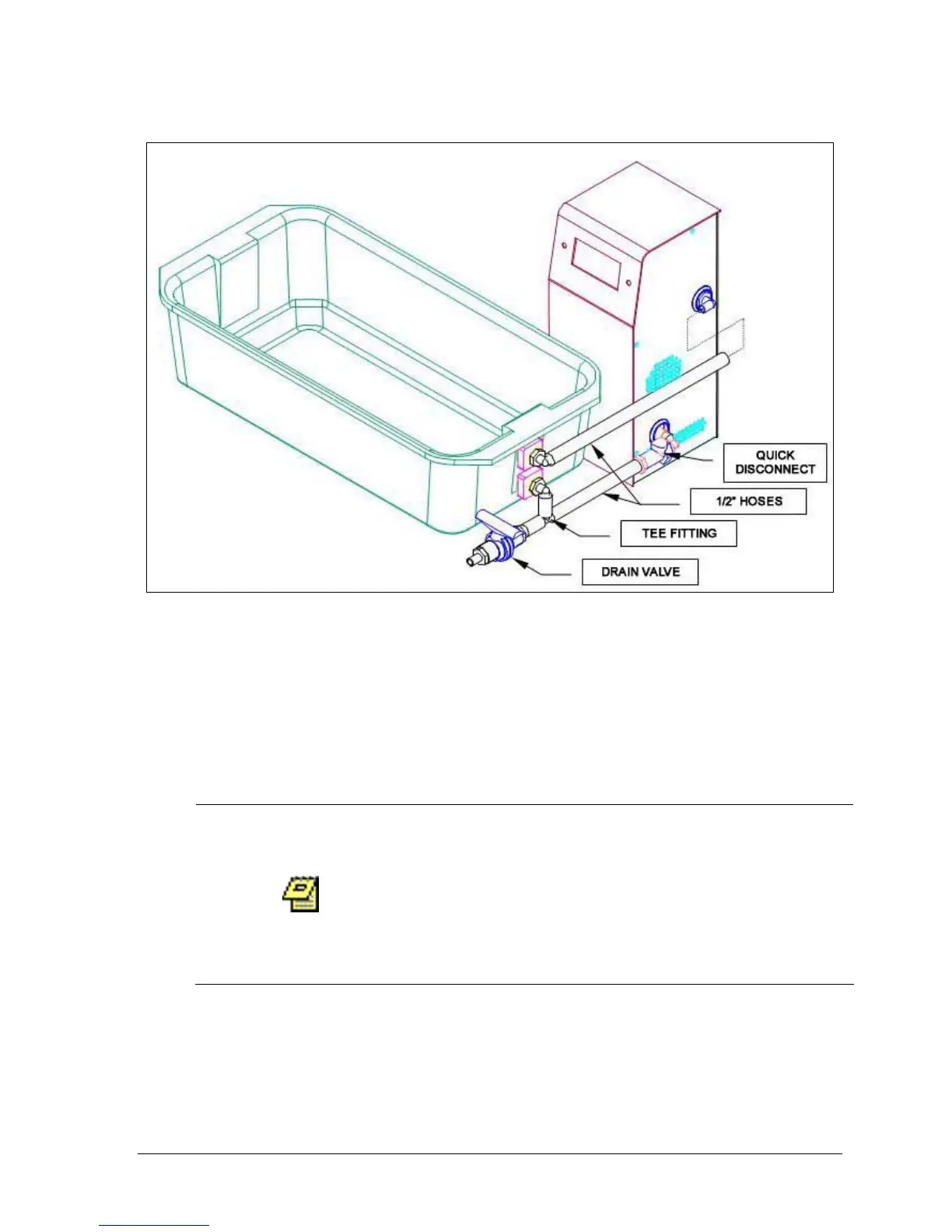

Figure 2-5: Thermocirculator Connections
Placement and Connections
1. Install the TCS-0200C behind the right side of the Evolution bath.
2. Place TCS-0200C Thermocirculator on bench and at the same level as
Evolution, or below.
Thermocirculator TCS-0200C is normally placed on same
level as Evolution bath, or below, in order for pump to
be primed properly. Contact Distek for special
instructions if pump needs to be installed higher than
bath. Failure to install and prime the Thermocirculator
as specified may result in damage to heater and/or
pump, and void the warranty.
3. Make sure ventilation holes on both sides of TCS-0200C are not obstructed.
4. Connect power cord to back of TCS unit.
5. Place a hose clamp loosely on inlet and outlet hoses.
6. Connect the water bath inlet hose (1/2" I.D.) to the pump outlet as shown
in Figure 2-5 (upper connection on the bath and pump).
