Distek Evolution 6100 - Calibrate Calprobe Using Tempchek Digital Thermometer

Chapter 3: Operation
Operation Manual: Evolution Series
3
-
20
The following steps describe the procedure for calibration:
1. Install 7 vessels with 900 mls of water.
2. Install all Paddle blades.
3. Place reference thermometer in the vessel to be calibrated.
4. Set vessel number on screen using the + or – button (See Figure 3-16).
5. Wait for both reference and vessel temperatures to stabilize.
6. Read temperature directly from reference thermometer.
7. Highlight the Ref. Temp. field and adjust the temperature value using the +
or – buttons.
8. When Ref. Temp. on the screen matches actual reference reading, press
START to calibrate.
9. Move reference thermometer to next vessel to be calibrated.
10. Repeat step 2 through 6 until all vessels have been calibrated.

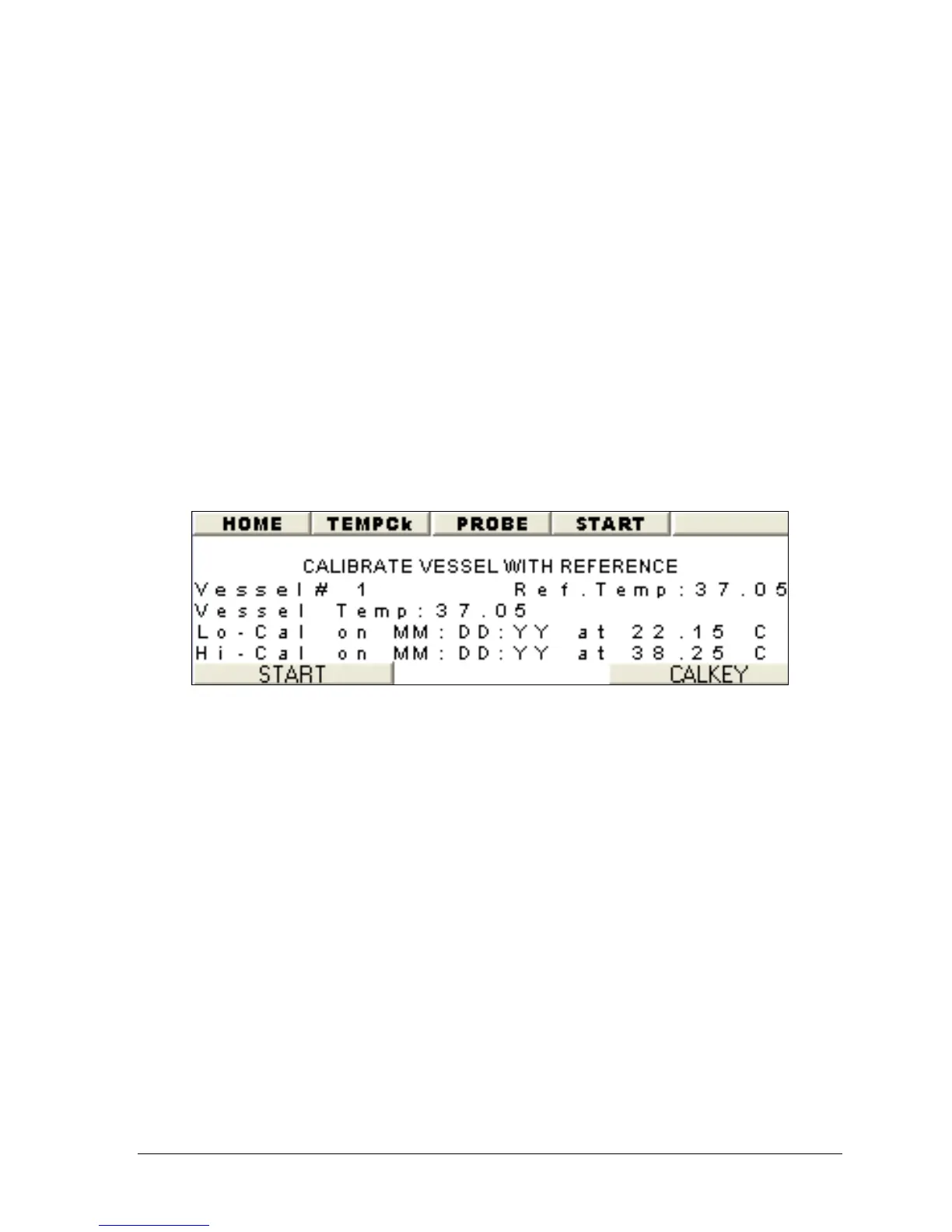

Figure 3-16: Calibrate using Reference
Calibrate calPROBE Using TempChek Digital Thermometer
1. Connect TempChek to RS-232 port (located on the side of unit) using Distek-
supplied cable.
2. Place TempChek probe and the calibration probe in the same vessel.
3. Using the + or – button set vessel number on the screen to 8.
4. Wait for both TempChek and vessel temperatures to stabilize.
5. Press START to calibrate.
