Chapter 4: Maintenance
Operation Manual: Evolution Series
Removing the Water Bath (Evolution 6300 Only)
1. Drain the water bath as described in the previous section.
2. Lower the water bath supports (see Figure 4-2) to its lowest position.
3. Push down the four bath corners to free it from the vessel plate.
4. Loosen the thumbscrew and turn the "bath lock" plate located on the front
of the vessel plate to an up position.
5. Remove the bath.

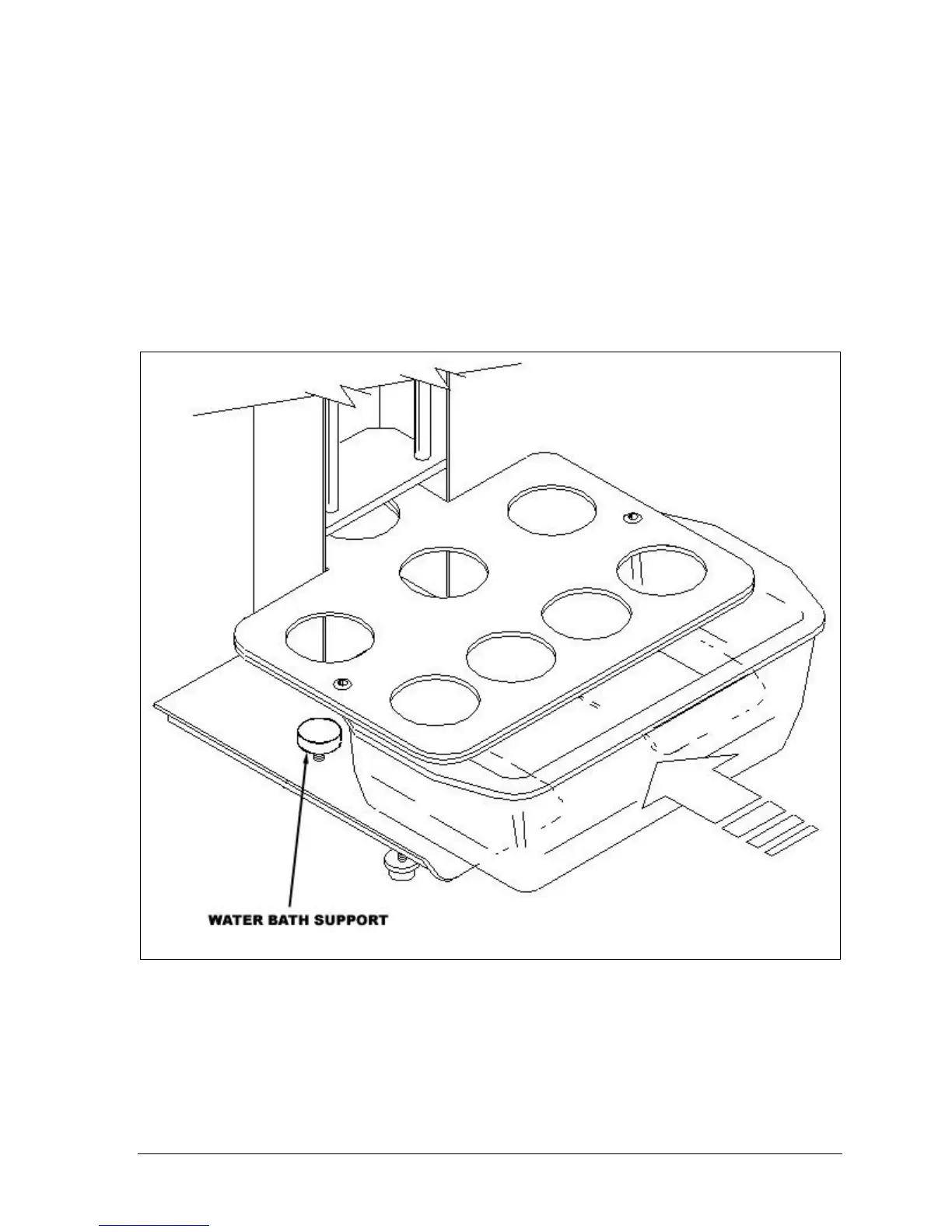

Figure 4-2: Water Bath Removal
