Chapter 2: Installation
Operation Manual: Evolution Series

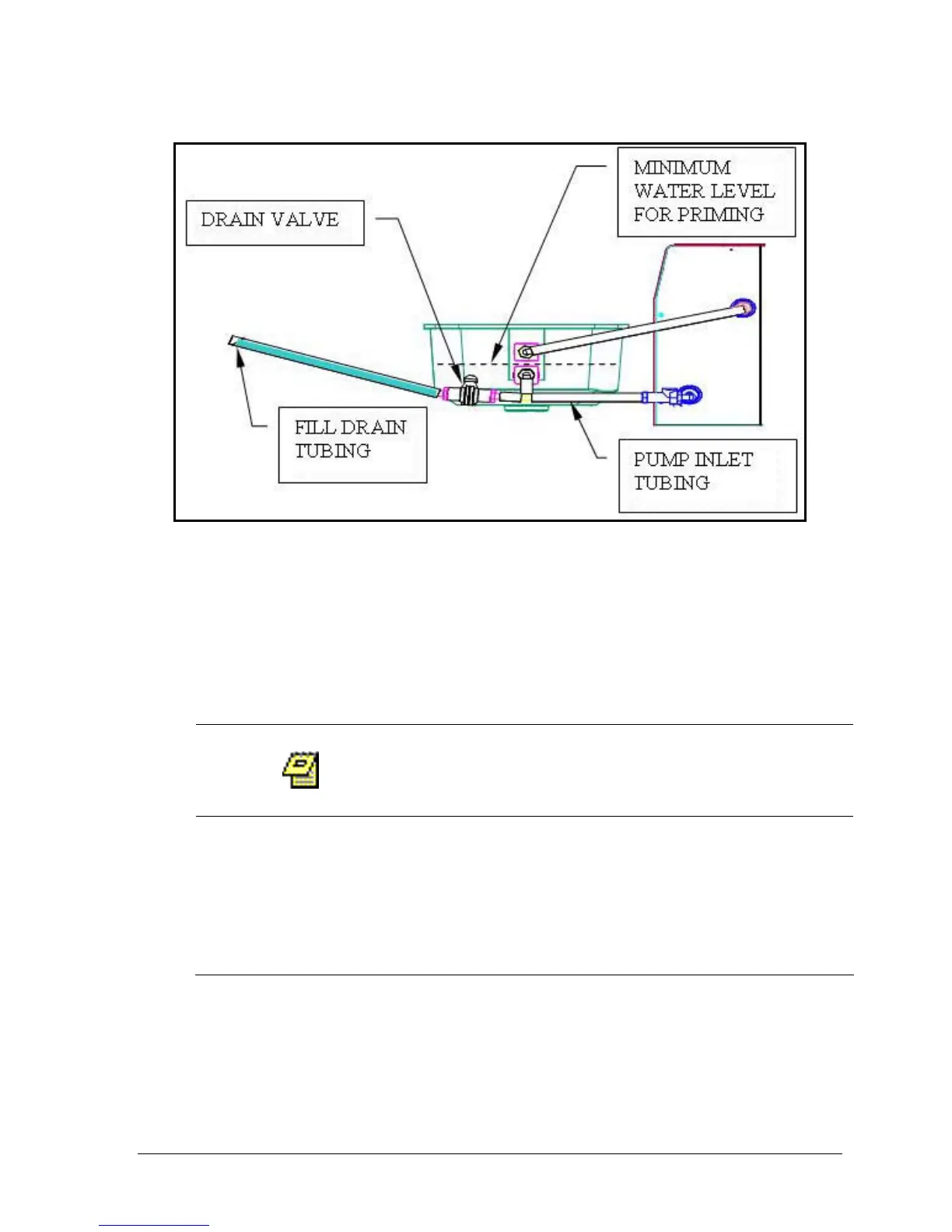

Figure 2-7: Drain Tubing Filled with Water
Positioning the Vessels
To install vessels in vessel plate:
1. Raise the drive unit.
2. Insert a vessel in each position on the vessel plate.
3. Slide vessel through vessel clips until it can go no further.
The top of at least one vessel clip should contact
the bottom of the vessel flange.
Distek supplies highly uniform vessels that fit properly
into the 6100 heater assemblies. Use of vessels other
than those supplied by Distek for the 6100 may result
in unsatisfactory operation or heater damage and void
the warranty.
