DITEC DAB105 - Right-Hand Opening Preparation

13
IP2159EN
1
4
210
1
2
4
3
c
b
a
Operator should be attached using the
top/centered bolt first, then follow pattern

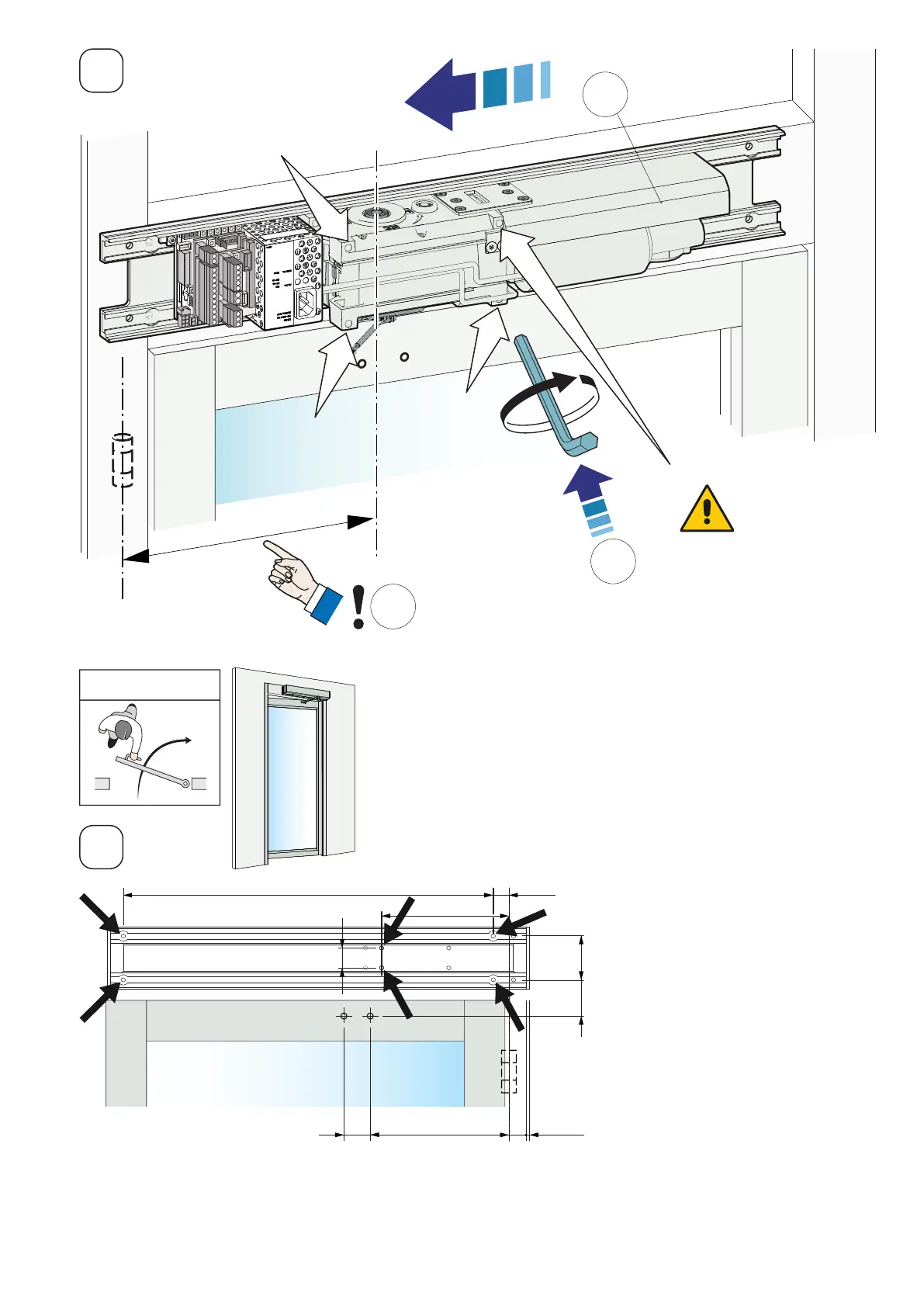

Automation preparation and fastening (right-hand opening)
Right-hand opening
X+16
75 34
31
26 4248
35
633
212
• Prepare the set-up for fixing the automation to the wall, respecting the measurements shown in the figures above (with refer-
ence to the hinge axis).
• Drill a hole in the door wing, in line with the fixing for the articulated arm.
• If necessary, use the DAB805SE2/SE5/SE7 extensions to increase the X measurement between the automation and the arm fixing points
