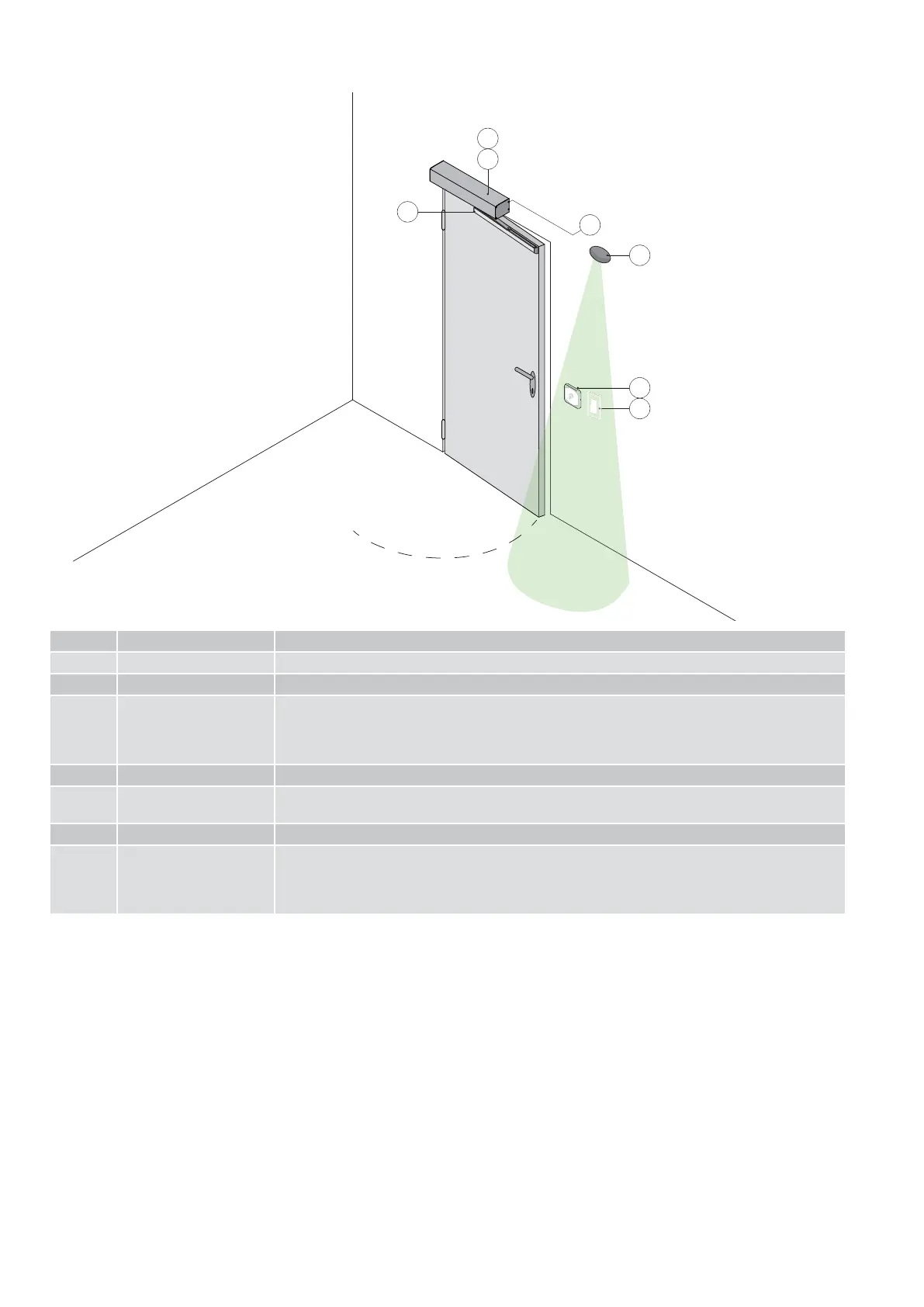

2. Standard installation
Ref. Code Description
1 Ditec DAB105 Electro-mechanical actuator
2 Control panel
3 DAB805PSA-PSAF
DAB805PLA
DAB805PLAT
DAB805PLAB
Articulated movement arm (DAB805PSAF for applications on fire barriers)
Sliding movement arm
Movement arm with three levers
Sliding movement arm (break-out/anti-panic)
4 Opening sensor
5 COM400MHB
COM400MKB
Function selector switch
6 Command button
A Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at
least 3 mm (not supplied).
Connection to the mains must be via an independent channel, separate from the connections to the
control and safety devices.
