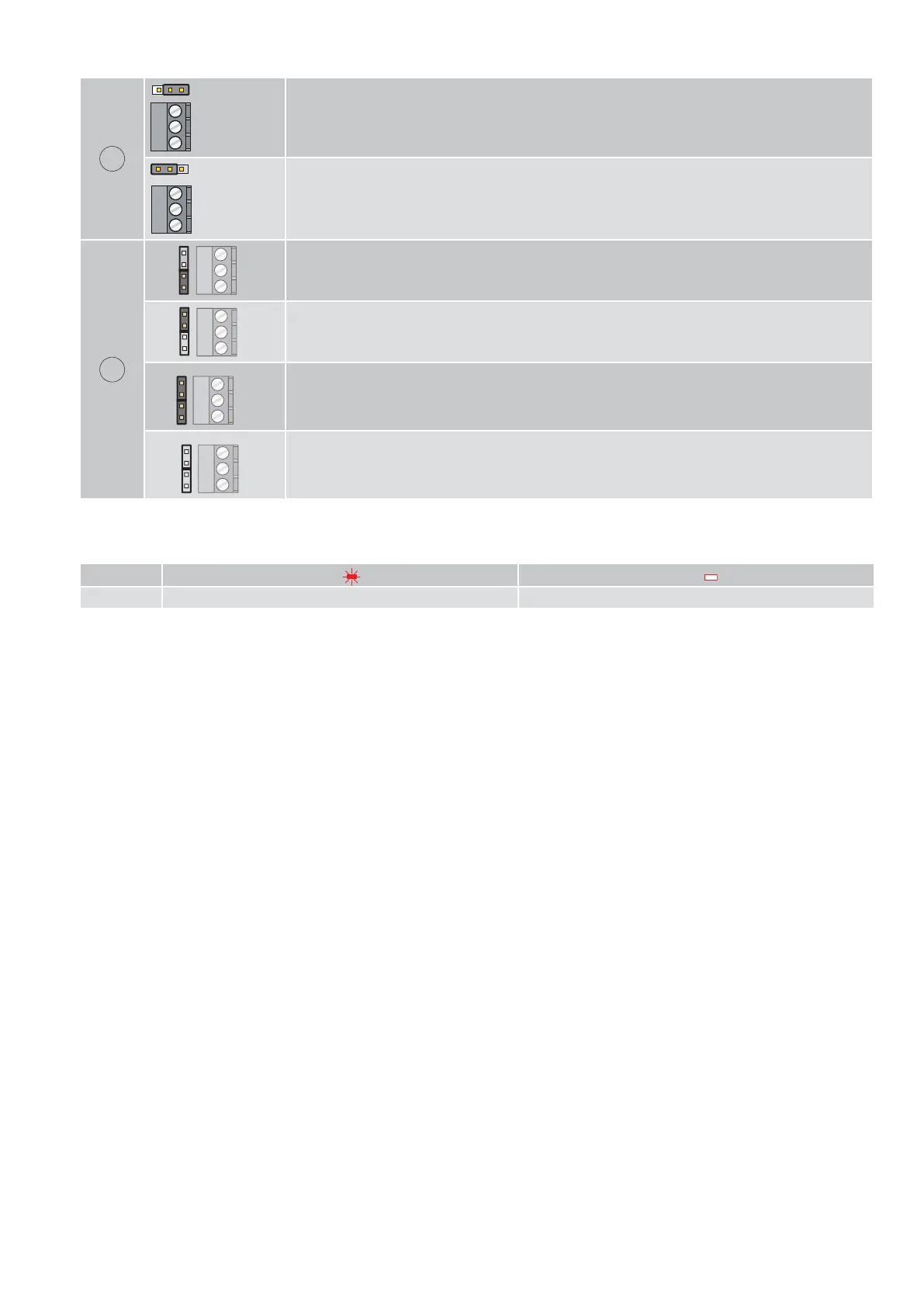

DITEC DAB105 - Jumper Settings; Safety Device Signals

35
IP2159EN
Jumper
J1
8910
NO
COM
NC
Error indication. A potential free contact COM/NO/NC for external error indication
NO
COM
NC
8910
Open door indication, A relay output is used to indicate an opening cycle or a specific position of the door.
The indication position is set by adjusting the inhibit/blanking potentiometer.
J2
8
9
1
0
N
O
CO
M
N
C
OFF
ON
Test on external sensor (GND-PDET)
OFF
ON
8
9
1
0
N
O
CO
M
N
C
Test on internal sensor (GND-PIMP)
8
9
1
0
N
O
CO
M
N
C
ON
ON
No test
8
9
1
0
N
O
CO
M
N
C
OFF
OFF
Test on internal and external sensors (GND-PIMP / GND-PDET)
11.4 Signals
ON
OFF
LED Opening safety device disabled Opening safety device enabled
